5
English

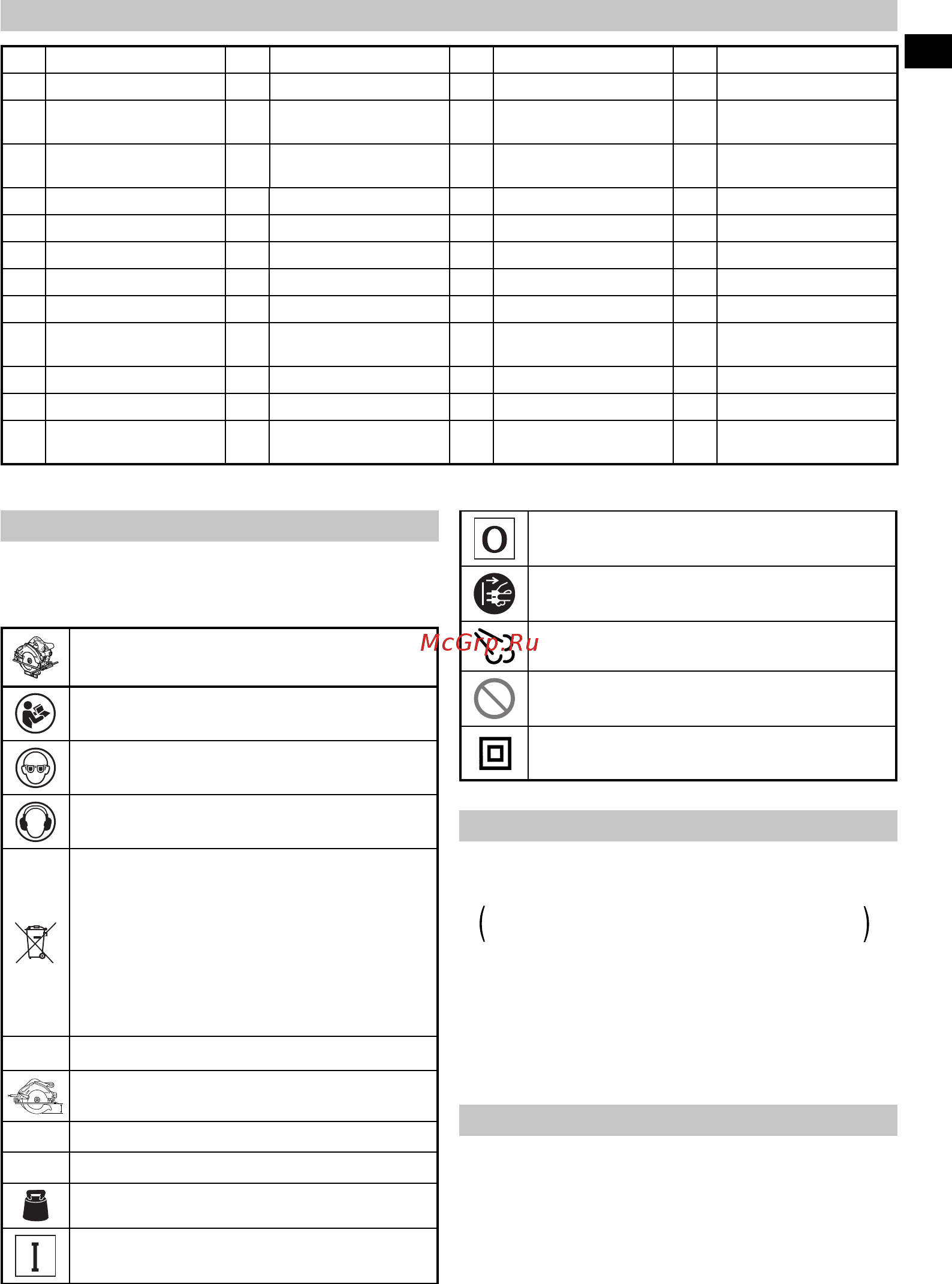

SYMBOLS
WARNING
The following show symbols used for the machine.
Be sure that you understand their meaning before
use.
C6U3 / C6BU3 / C6UM / C6BUM / C7U3 /
C7BU3 / C7UM / C7BUM : Circular Saw
To reduce the risk of injury, user must read
instruction manual.
Always wear eye protection.
Always wear hearing protection.
Only for EU countries
Do not dispose of electric tools together with
household waste material!
In observance of European Directive 2002/96/
EC on waste electrical and electronic equipment
and its implementation in accordance with
national law, electric tools that have reached
the end of their life must be collected separately
and returned to an environmentally compatible
recycling facility.
V
Rated voltage
Cutting depth
P
Power Input
n
0
No-Load speed
kg
Weight (without cord)
Switching ON
Switching OFF
Disconnect mains plug from electrical outlet
Blower
Prohibited action
Class II tool
STANDARD ACCESSORIES
In addition to the main unit (1 unit), the package
contains the accessories listed in the below.
○ Saw Blade (mounted on tool) .......................................1
Dia. 165 mm .........C6U3, C6BU3, C6UM, C6BUM
Dia. 190 mm .........C7U3, C7BU3, C7UM, C7BUM
○ Hex. Bar wrench ..........................................................1
○ Guide ...........................................................................1
○ Wing-bolt .....................................................................1
○ Lock Spring ..................................................................1
○ Lever (short type) .........................................................1
○ Dust collector ...............................................................1
Standard accessories are subject to change without notice.
APPLICATIONS
Cutting various types of wood.
NAME OF PARTS (Fig. 1 – Fig. 23)
1
Switch trigger
$
Incline wing-nut
u
M4 screw
;
Machine screw M5x12
2
Saw cover
%
Brush cap
i
Premarked line
z
Guide rail adapter
3
Lower guard lever
^
Handle
o
Front scale at 45°
incline
x
Rail bar
4
Riving knife
&
Lock-off button
p
Front scale when not
inclined
c
Bar (A)
5
M8 bolt
*
Lock lever
a
Lock spring
v
Bar (B)
6
Washer (B)
(
Nameplate
s
Dust collecor
b
Wing-bolt
7
Saw blade
)
Knob
d
Lever (short type)
n
Base square socket
8
Lower guard
q
Cord holder
f
M4 Screw
m
Mounting screw
9
Guide
w
Incline wing-bolt
g
M5 Screw
,
Wood chip
0
Guide piece
e
Inclined lever
h
6 mm Hex. bar wrench
.
Parallelism adjustment
screw
!
Base
r
Lumber
j
Washer (A)
/
Square
@
Inclined gauge
t
Workbench
k
Guide rail
¡
Hex. socket set screw
#
Guide fastener wing-
bolt
y
M8 bolt
l
Rubber lip
™
3 mm Hex. bar wrench
