JetStream 24-Port Gigabit Stackable Smart Switch with 4 10GE SFP+ Slots
08 Installation

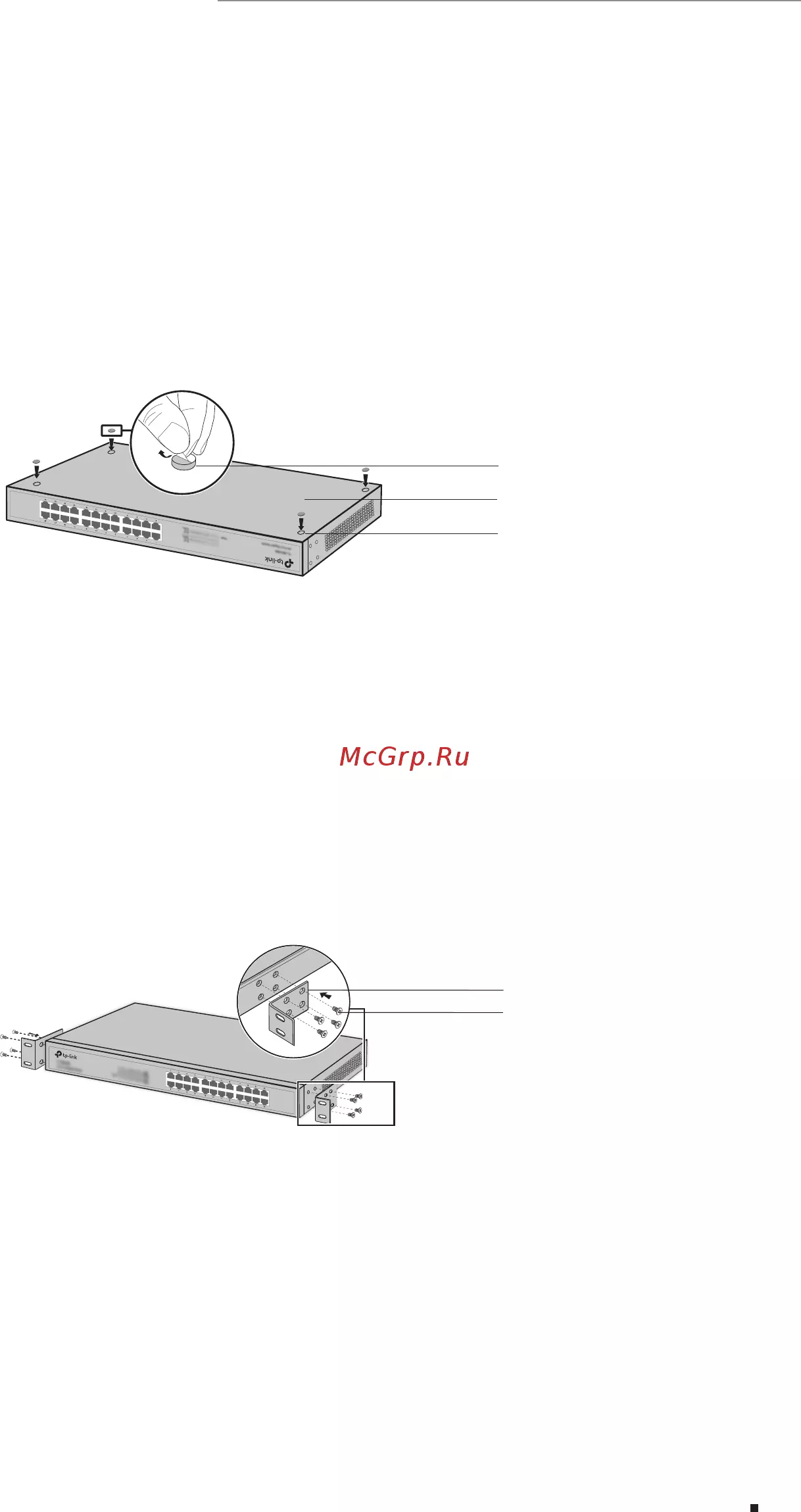

3. After the brackets are attached to the device, use suitable screws (not provided) to
secure the brackets to the rack, as illustrated in the following figure.

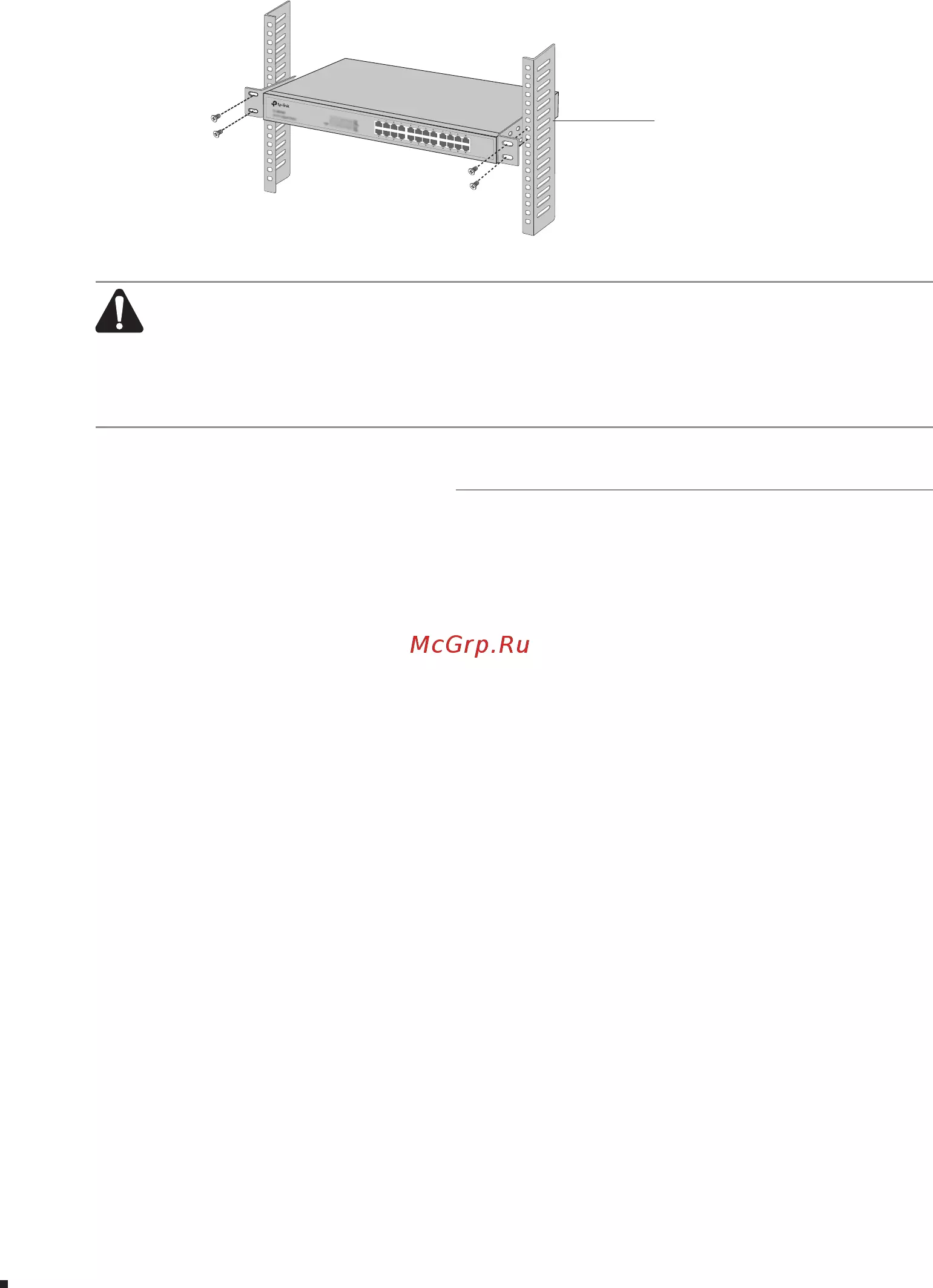

Figure 2-3 Rack Installation
Rack
Caution:
■
Please set 5 to 10cm gaps around the device for air circulation.
■
Please avoid any heavy thing placed on the device.
■
Please mount devices in sequence from the bottom to top of the rack and ensure
a certain clearance between devices for the purpose of heat dissipation.
2.5 Stacking Using SFP+ Port
You can connect up to 6 switches to form a stack with a single management IP address.
Follow the steps below to connect the switches and configure the stack ports, then the
switches will automatically elect a master unit and establish a stack. Once the stack
is established, you can use any port of any switch in the stack to manage the stack
system.
Any SFP+ ports (Port 25-28) on the front panel can be used for stacking. Port 25-26
belong to Stack Port Group 0 and Port 27-28 belong to Stack Port Group 1. Since stack
capability cannot be enabled in the two groups simultaneously, you can enable stack
feature in either Group 0 or Group 1.

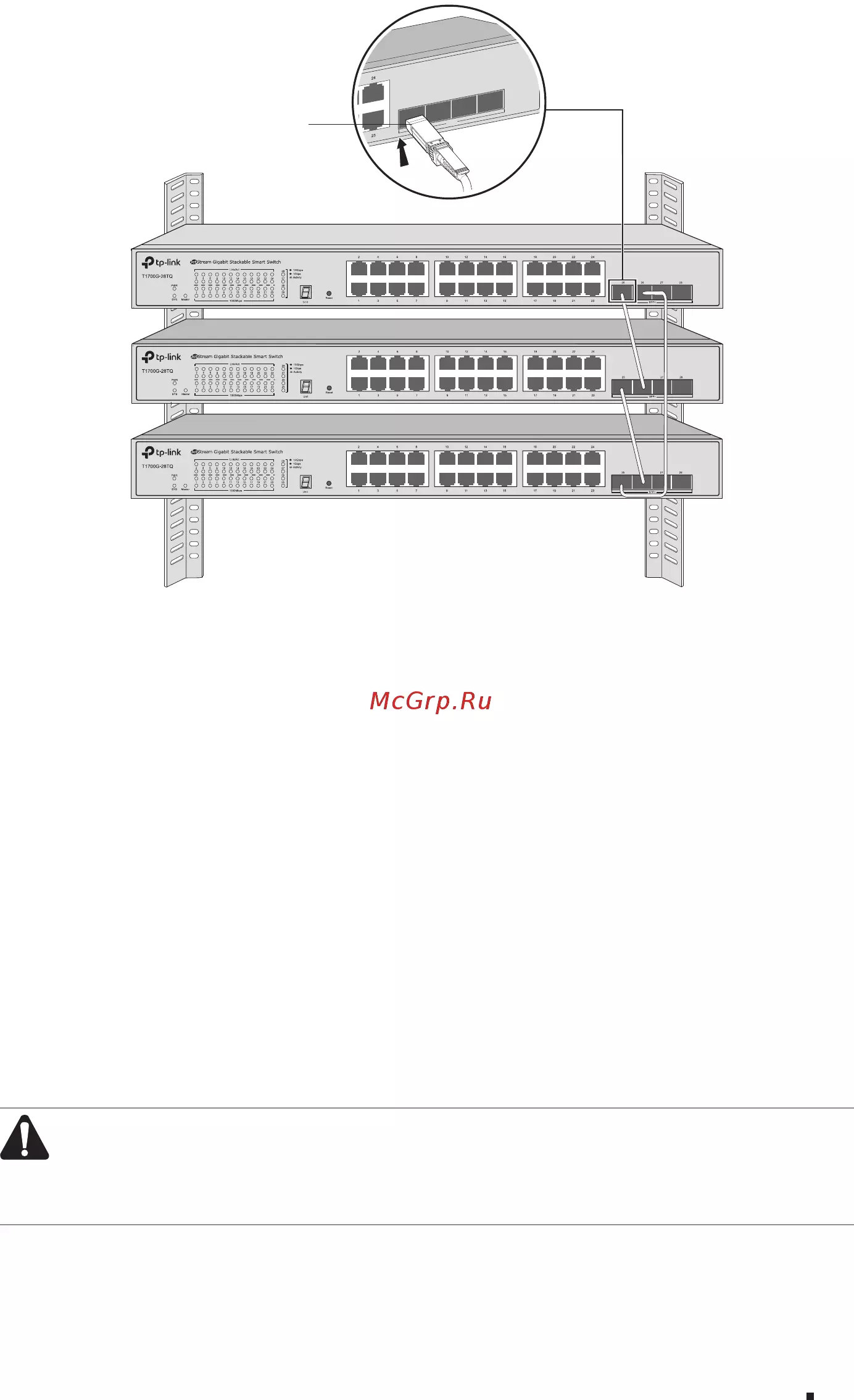

Here is an example of a recommended configuration that uses three rack-mounted
switches to form a full-ring stack.
Conguration and Connection
1. Log on to the GUI of each switch, go to Stack
→
Stack Management
→
Stack Cong
page to enable the Stack Capability of port 25 and 26 (port 1/0/25 and 1/0/26 on the
GUI). Remember to click Apply after the configuration.
2. Power off the switches, and then use the 10G SFP+ cable (TXC432-CU1M/TXC432-
CU3M of TP-LINK for example) to connect each switch to the next in a cascade.
Finally, connect the last switch in the stack to the first switch, thus forming a ring
topology as Figure 2-4 shows. The ring topology system provides redundancy and
resiliency to the stack.
