JetStream 24-Port Gigabit Stackable Smart Switch with 4 10GE SFP+ Slots
16 Connection
Chapter 4 Connection
4.1 Ethernet Port

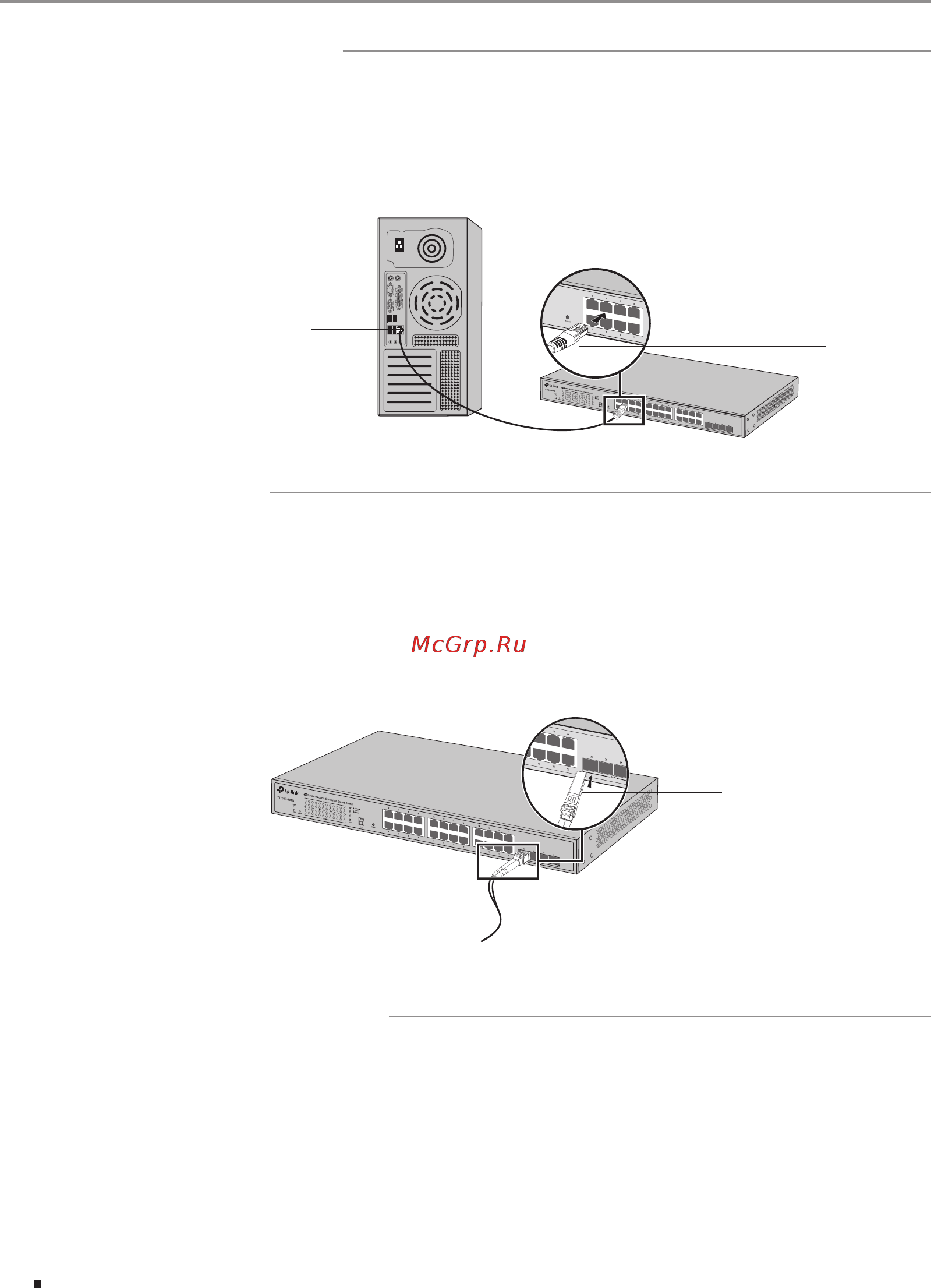

Connect a Ethernet port of the switch to the computer by RJ45 cable as the following
figure shows.
Figure 4-1 Connecting the RJ45 Port
RJ45 Port
RJ45 Cable
4.2 SFP+ Port
Connect an SFP/SFP+ transceiver or an SFP+ cable to the SFP+ port. Make sure the
SFP+ module minimum bend radius is met when using the SFP+ cable.
The SFP+ ports support 10G connection by default. If you are using a gigabit SFP
module, please configure the speed of the corresponding SFP+ port as 1000M.
Figure 4-2 Inserting the SFP+ Module
SFP+ Port
SFP+ Transceiver
4.3 Verify Installation
After completing the installation, please verify the following items:
■
There are 5 to 10cm of clearance around the sides of the device for ventilation and the
air flow is adequate.
■
The voltage of the power supply meets the requirement of the input voltage of the device.
