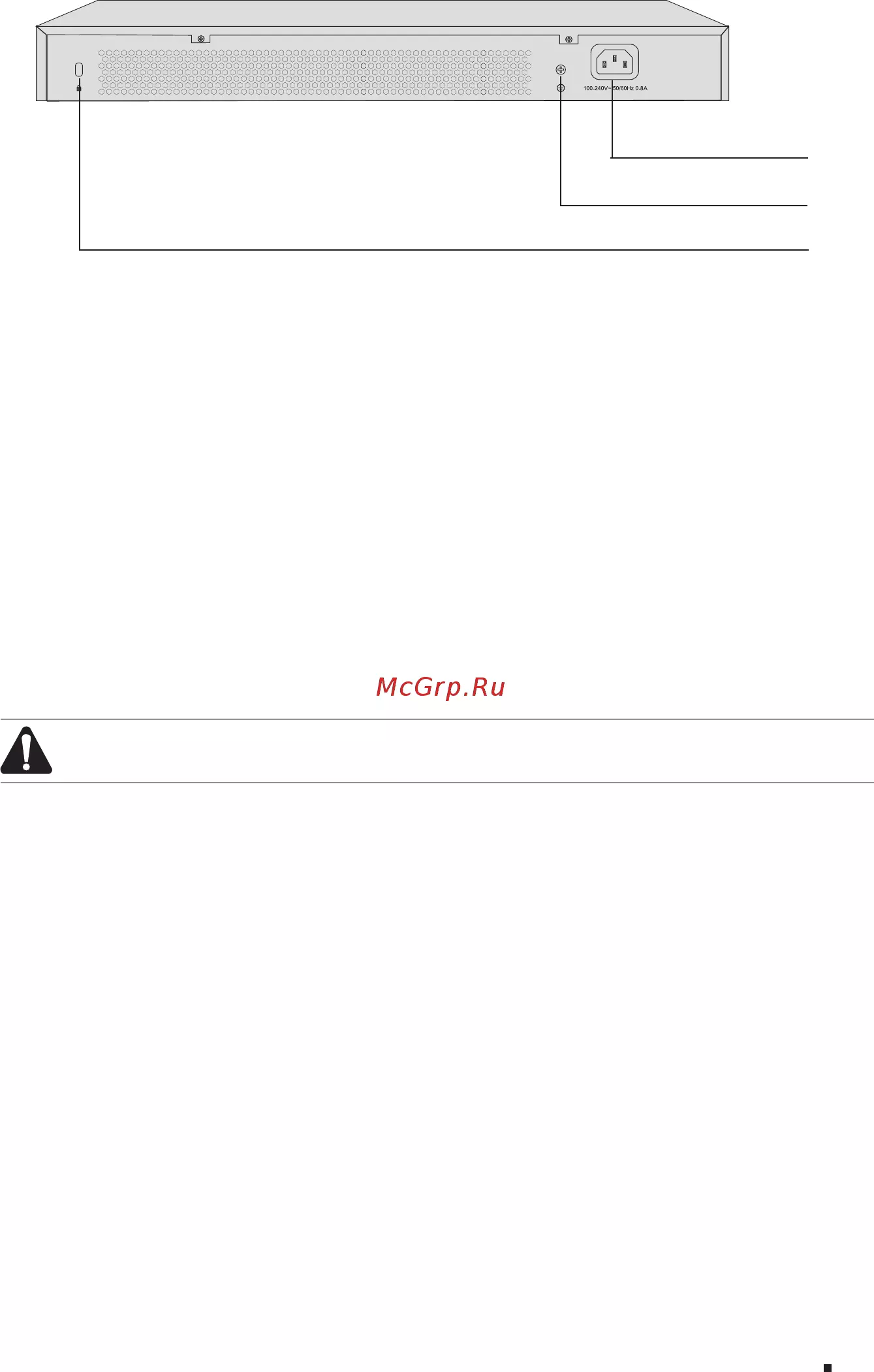

JetStream 24-Port Gigabit Stackable Smart Switch with 4 10GE SFP+ Slots
02 Introduction
LED Status Indication
Master
On
The switch works as master in the stack system, or
does not join any stack system
Off The switch works as stack member in the stack system
Link/Act
On
There is a device connected to the corresponding
port but no activity
Flashing
Data is being transmitted or received
Off No device is connected to the corresponding port
1000Mbps
On
A 1000Mbps device is connected to the corresponding
port
Off
A 10/100Mbps device or no device is connected to the
corresponding port
25-28
Green
On
A 10Gbps device is connected to the corresponding port,
but no activity
Flashing
Data is being transmitted or received
Yellow
On
A 1000Mbps device is connected to the corresponding
port, but no activity
Flashing
Data is being transmitted or received
Off
No device is connected to the corresponding port
Unit ID LED
Designed to display the stack Unit ID of the switch. For the switch that does not join
any stack system, it displays its default Unit ID. To modify the default unit number,
please logon to the GUI of the switch and go to Stack→Stack Management→Stack
Config page and configure the New Unit ID. The new Unit ID will take effect after you
reboot the switch.
Reset
Press this button for 5 seconds or above to reset the software setting back to
factory default settings.
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. Each has a corresponding Link/Act LED and a 1000Mbps LED.
SFP+ Port
Port 25-28, designed to install the 1Gbps SFP transceiver, 10Gbps SFP+ transceiver
or SFP+ cable.
Port Feature
Model 10/100/1000Mbps RJ45 Port SFP+ Port
T1700G-28TQ 24 4
