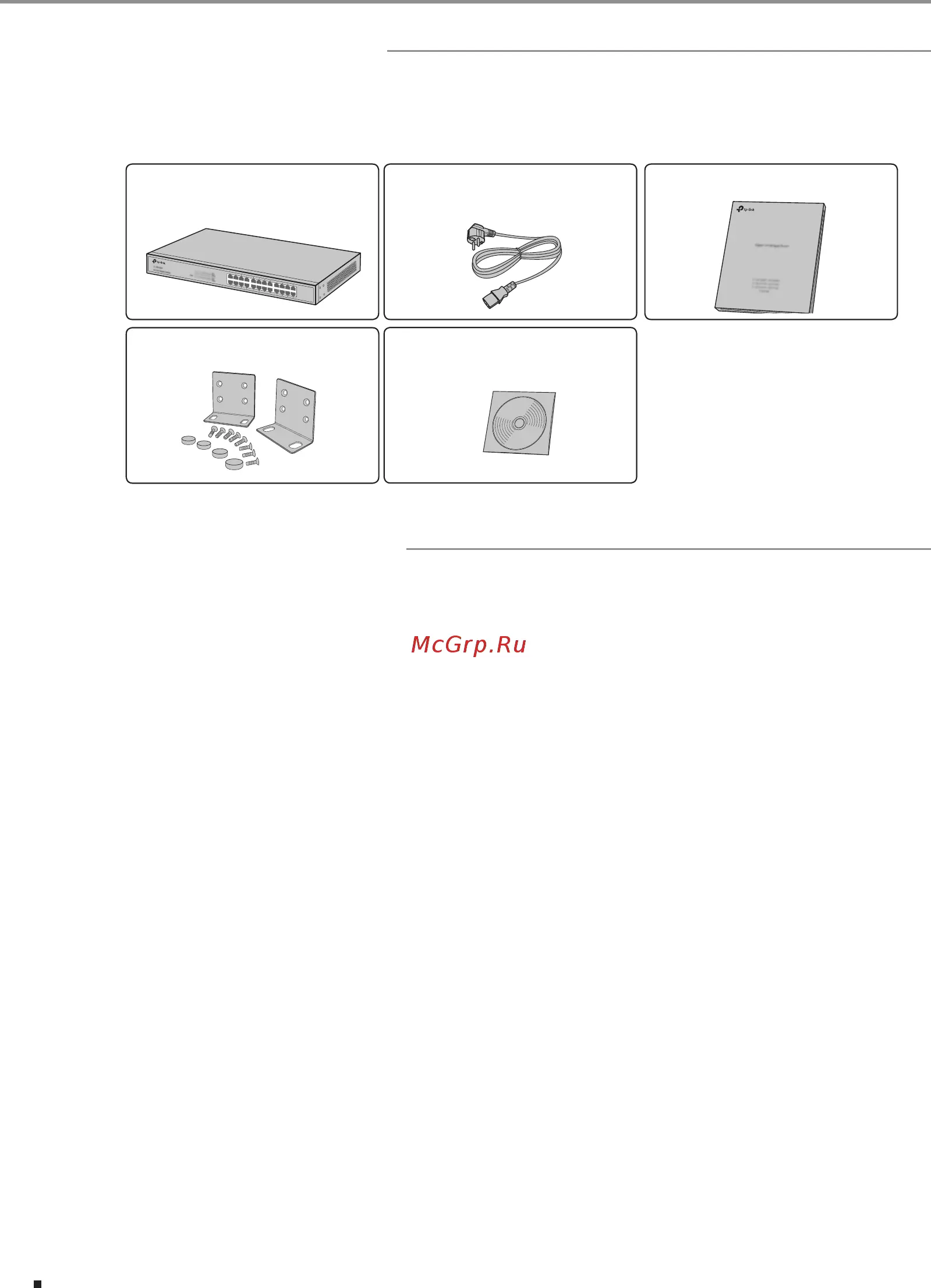

JetStream 24-Port Gigabit Stackable Smart Switch with 4 10GE SFP+ Slots
03Introduction
■
Rear Panel

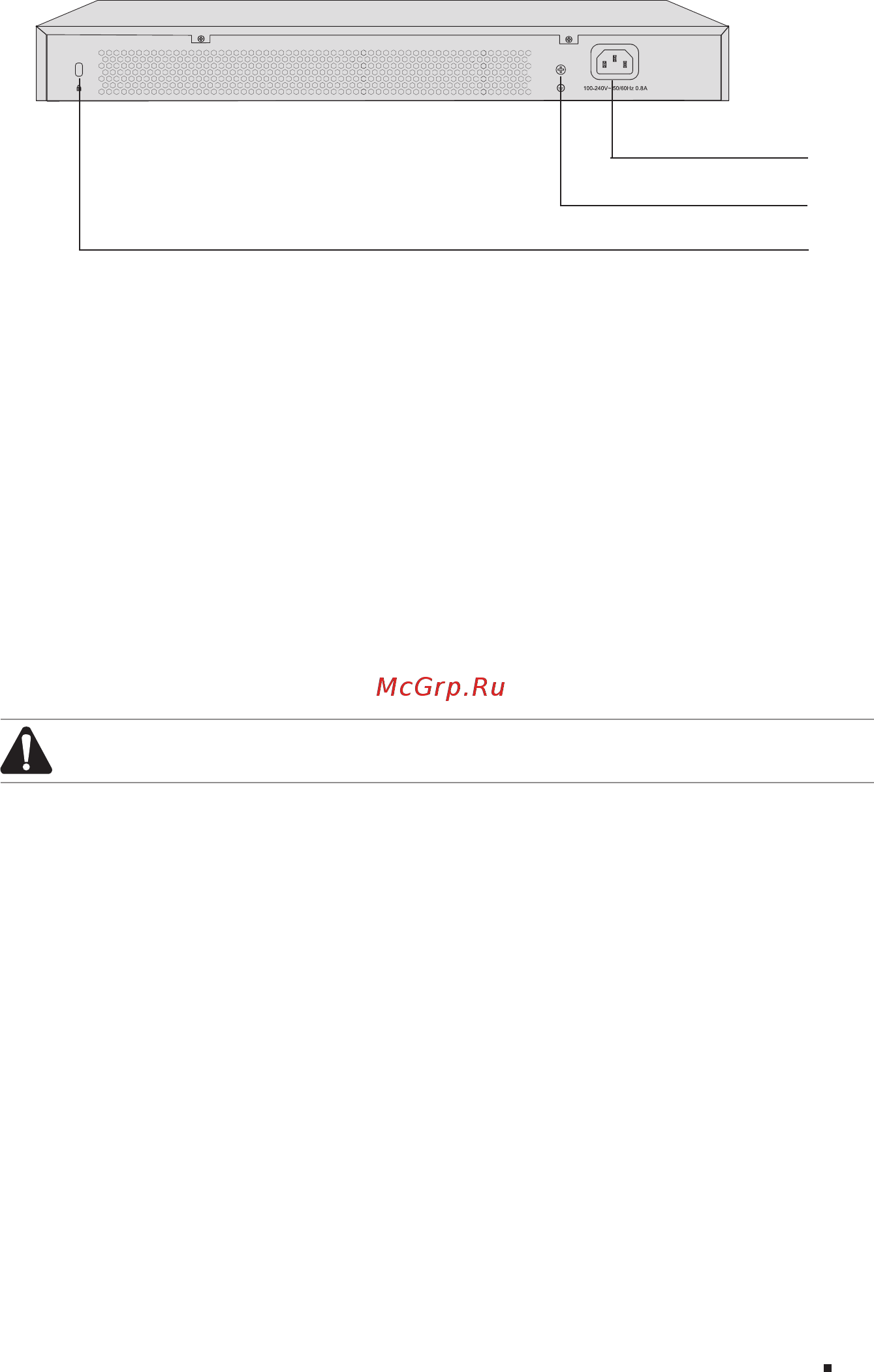

The rear panel of T1700G-28TQ is shown as the following figure.
Figure 1-2 Rear Panel of T1700G-28TQ
Grounding Terminal
Power Socket
Kensington Security Slot
Kensington Security Slot
Secure the lock (not provided) into the security slot to prevent the device from being
stolen.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground
the switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.
For detailed information, please refer to Chapter 3 Lightning Protection.
Power Socket
Connect the female connector of the power cord here, and the male connector to
the AC (Alternating Current) power outlet. Please make sure the voltage of the power
supply meets the requirement of the input voltage.
Caution:
Please use the provided power cord.
