JetStream 24-Port Gigabit Stackable Smart Switch with 4 10GE SFP+ Slots

17Connection

■

The power socket, device and rack are well grounded.

■

The device is correctly connected to other network devices.

4.4 Power On

Plug in the negative connector of the provided power cord into the power socket of the

device, and the positive connector into a power outlet as the following figure shows.

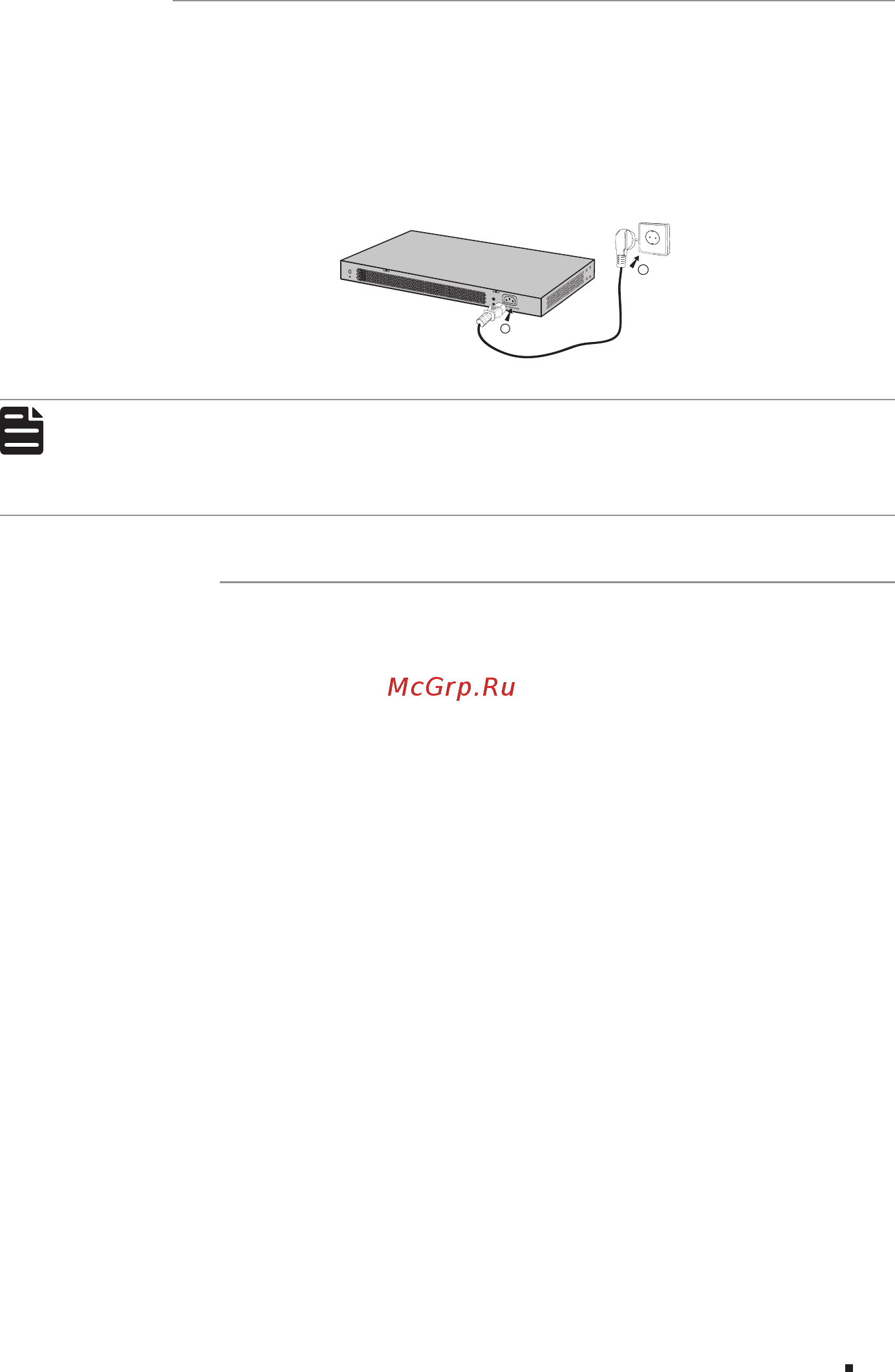

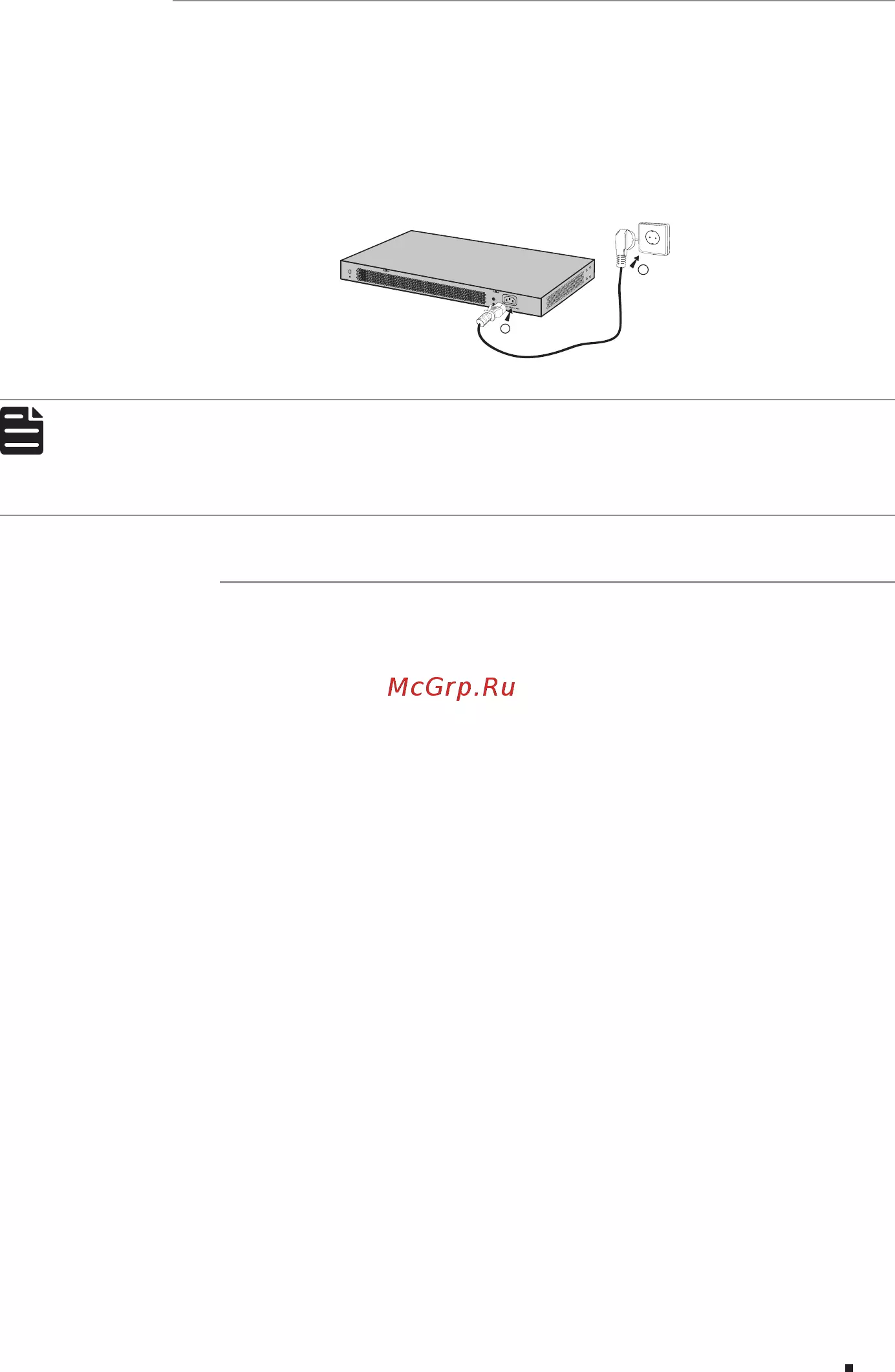

Figure 4-3 Connecting to Power Supply

Note:

The gure is to illustrate the application and principle. The power plug you get

from the package and the socket in your situation will comply with the regulation

in your country, so they may dier from the gure above.

4.5 Initialization

After the device is powered on, it begins the Power-On Self-Test. A series of tests

run automatically to ensure the device functions properly. During this time, its LED

indicators will respond in the following order:

1. The PWR LED lights on all the time. The SYS LED and the LED indicators of all the

ports keep off.

2. After over one minute, the LED indicators of all the ports will flash momentarily and

then turn off.

3. A few seconds later, the SYS LED indicator will flash, which represents a successful

initialization.
