Getting Started Installing the Configuration Utility
User Guide
9
program into the \Program Files\TP-Link\Unmanaged Pro Configuration Utility
directory, and places a utility icon
on the computer desktop.

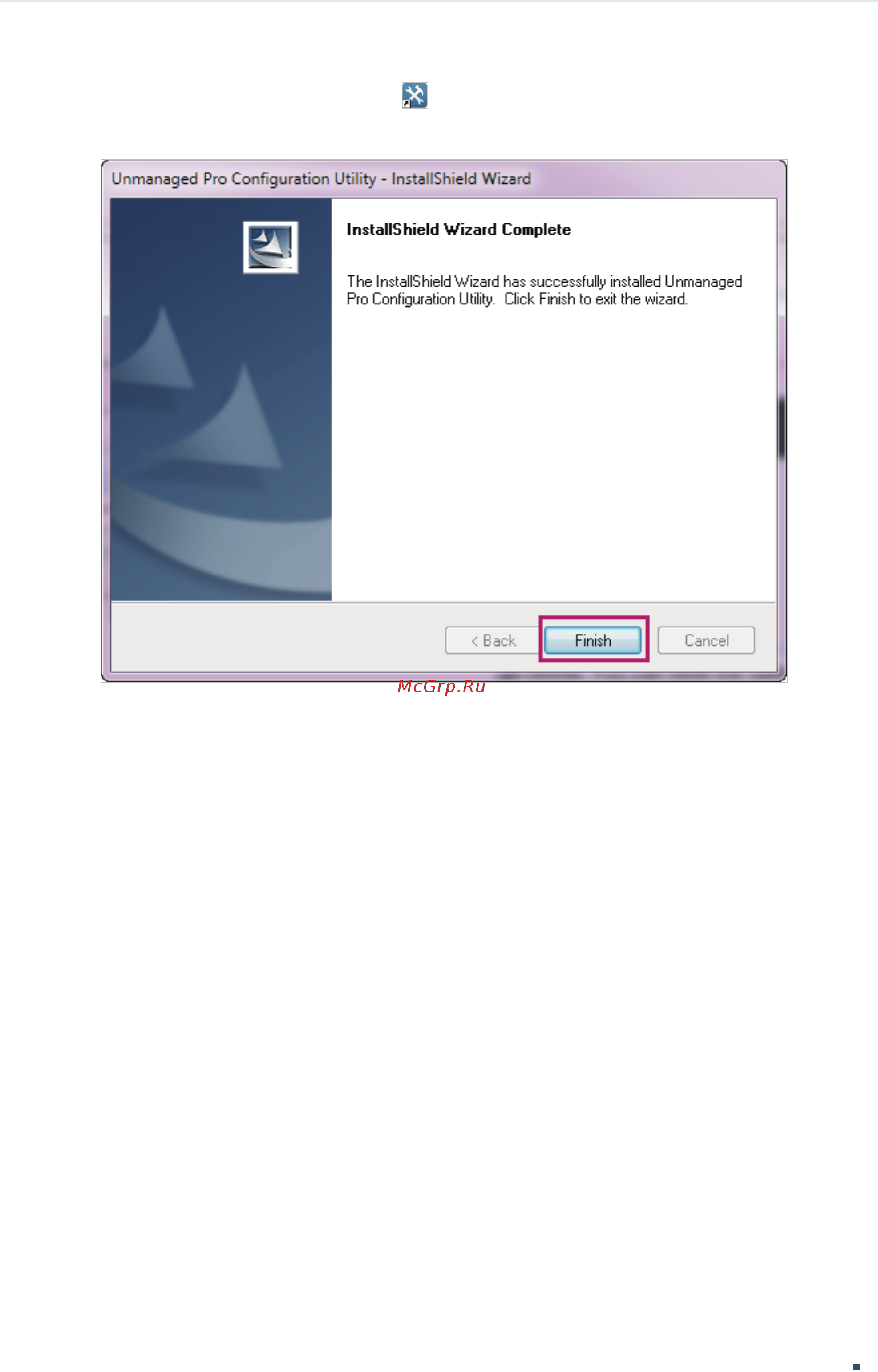

Figure 2-6 Finishing Installation
