Tp-Link TL-SG108E V2 [19/84] The following page will be displayed
![Tp-Link TL-SG108E V1 [19/84] The following page will be displayed](/views2/1473066/page19/bg13.png)
Getting Started Uninstalling the Utility
User Guide
15

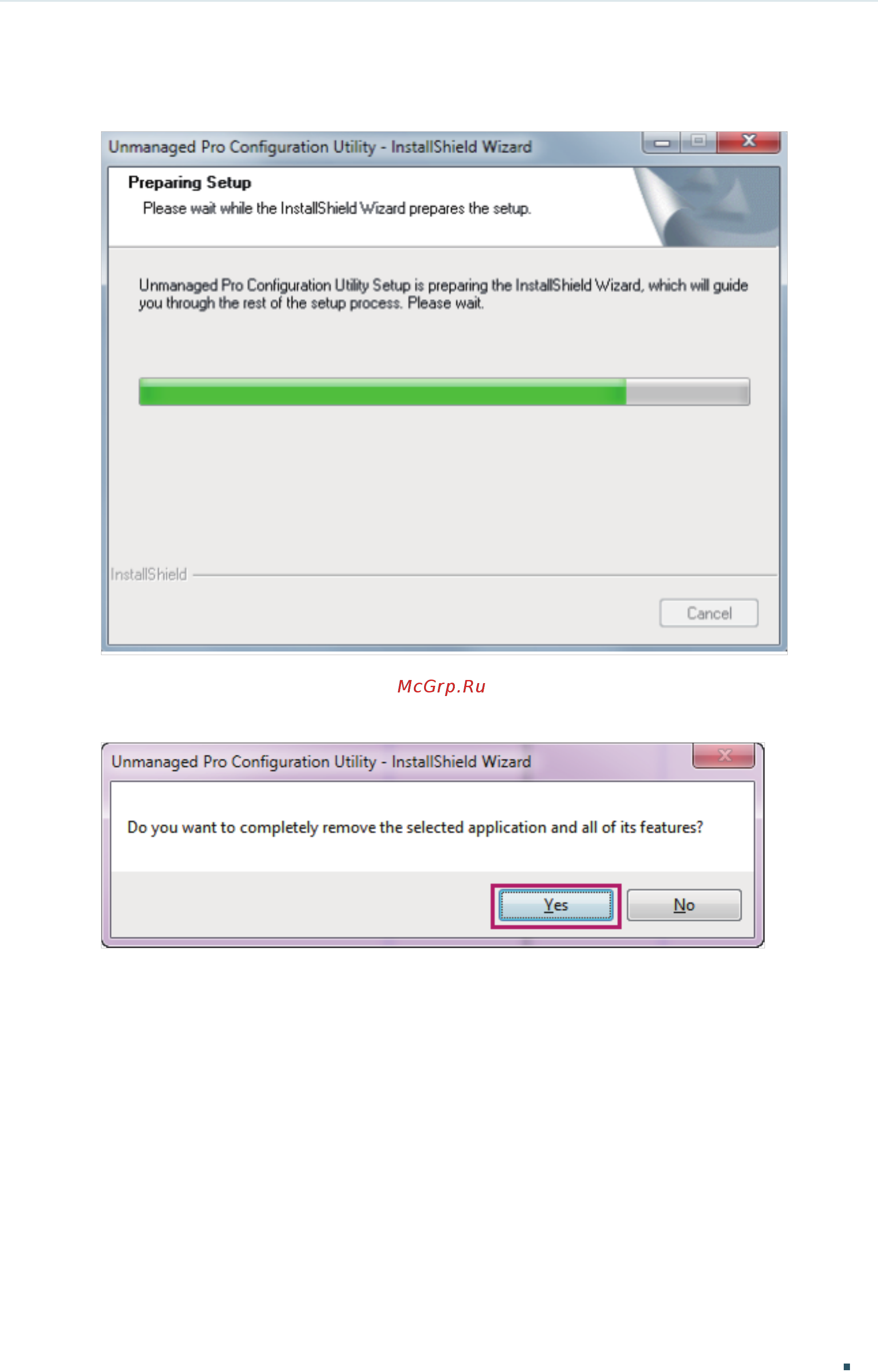

2) The following page will be displayed,
Figure 4-2 Preparing to Uninstall the Unmanaged Pro Configuration Utility
3) Wait for a while until the following page is displayed. Click Yes.
Figure 4-3 Being Sure to Uninstall the Unmanaged Pro Configuration Utility
