User Guide 68
Configuring QoS Configuring Basic QoS
2.2 Configuring QoS in 802.1P Based Mode
Choose the menu QoS > QoS Basic to load the following page.

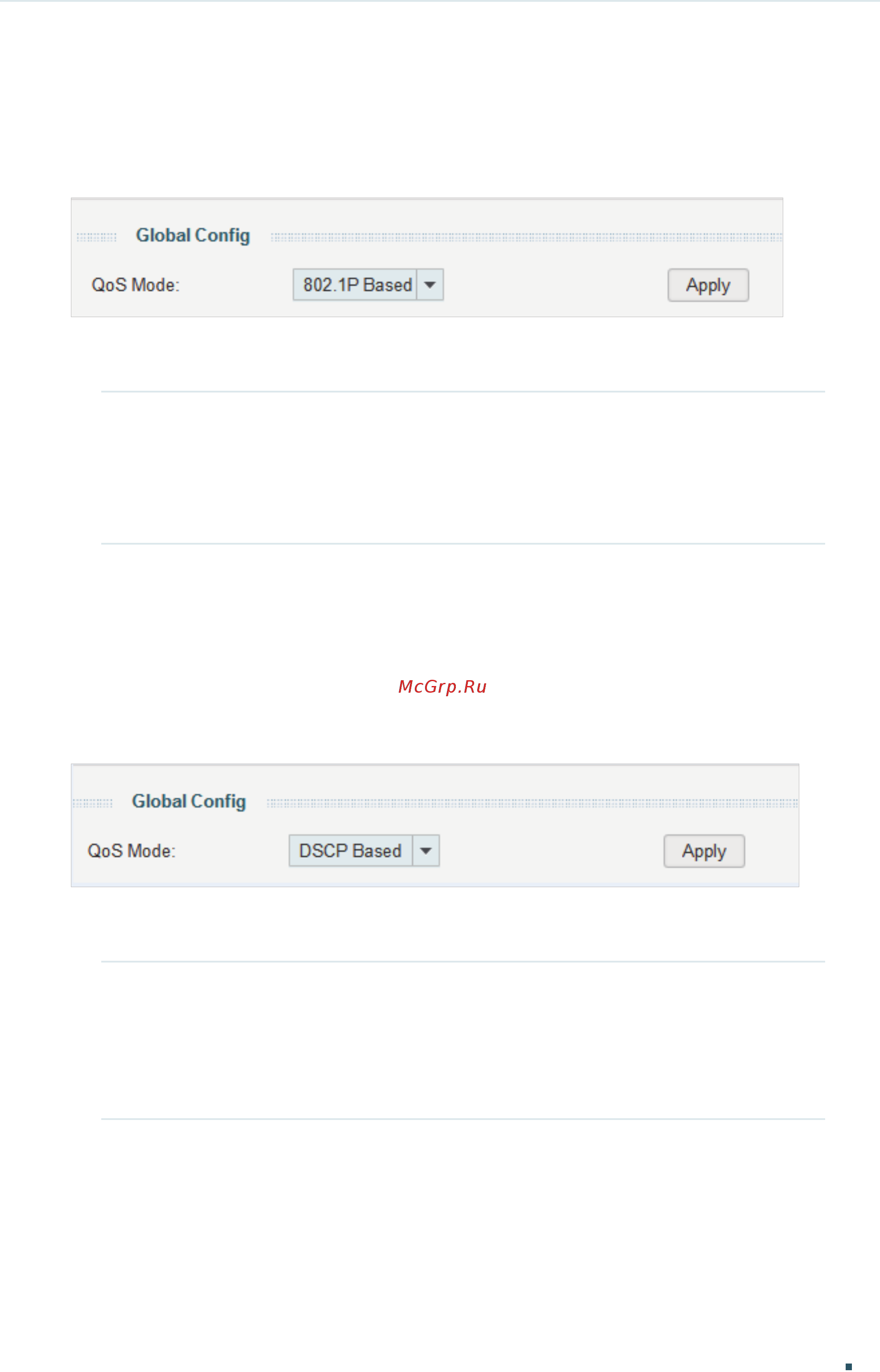

Figure 2-2 Configuring Basic QoS in 802.1P Based Mode
Follow these steps to configure QoS in 802.1P based mode:
1) Select QoS mode as 802.1P Based.
QoS Mode Select the QoS mode as 802.1P Based from the drop-down list.
802.1P Based: In 802.1P based mode, the switch only prioritizes packets
with VLAN tag, regardless of the IP header of the packets. The tagged
packets are mapped to 4 priority levels based on the Pri value in 802.1Q
tag (Lowest = 1, 2; Normal = 0, 3; Medium= 4, 5; Highest = 6, 7).
2) Click Apply.
2.3 Configuring QoS in DSCP Based Mode
Choose the menu QoS > QoS Basic to load the following page.
Figure 2-3 Configuring Basic QoS in DSCP Based Mode
Follow these steps to configure QoS in DSCP based mode:
1) Select QoS mode as DSCP Based.
QoS Mode
Select the QoS mode
as DSCP Based
from the drop-down list.
DSCP Based: In DSCP based mode, the switch only prioritizes IP packets,
regardless of the VLAN tag. The IP packets are mapped to 4 priority levels
based on the DSCP value (Lowest= 0-15; Normal = 16-31; Medium = 32-47;
Highest = 48-63).
2) Click Apply.
