Tp-Link TL-SG108E V2 [24/84] Specifying the device description
![Tp-Link TL-SG105E V3 [24/84] Specifying the device description](/views2/1473066/page24/bg18.png)
User Guide 20
Managing System Configuring System Info
2.2 Specifying the Device Description
Choose the menu System > System Info to load the following page. Specify a new device
description for the switch, and click Apply.

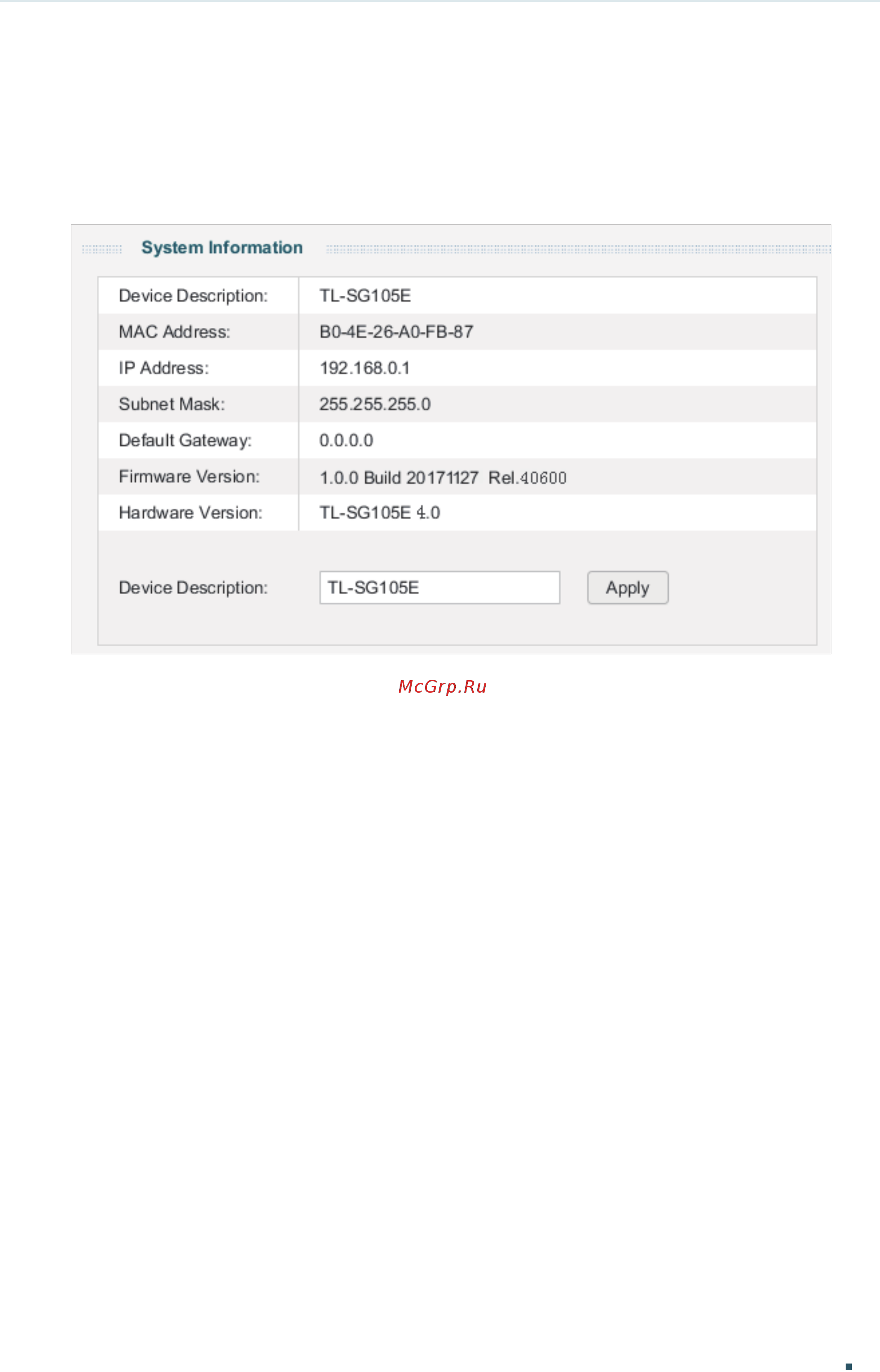

Figure 2-2 Specifying the Device Description
