User Guide 30
Managing System Upgrading the Firmware
8
Upgrading the Firmware

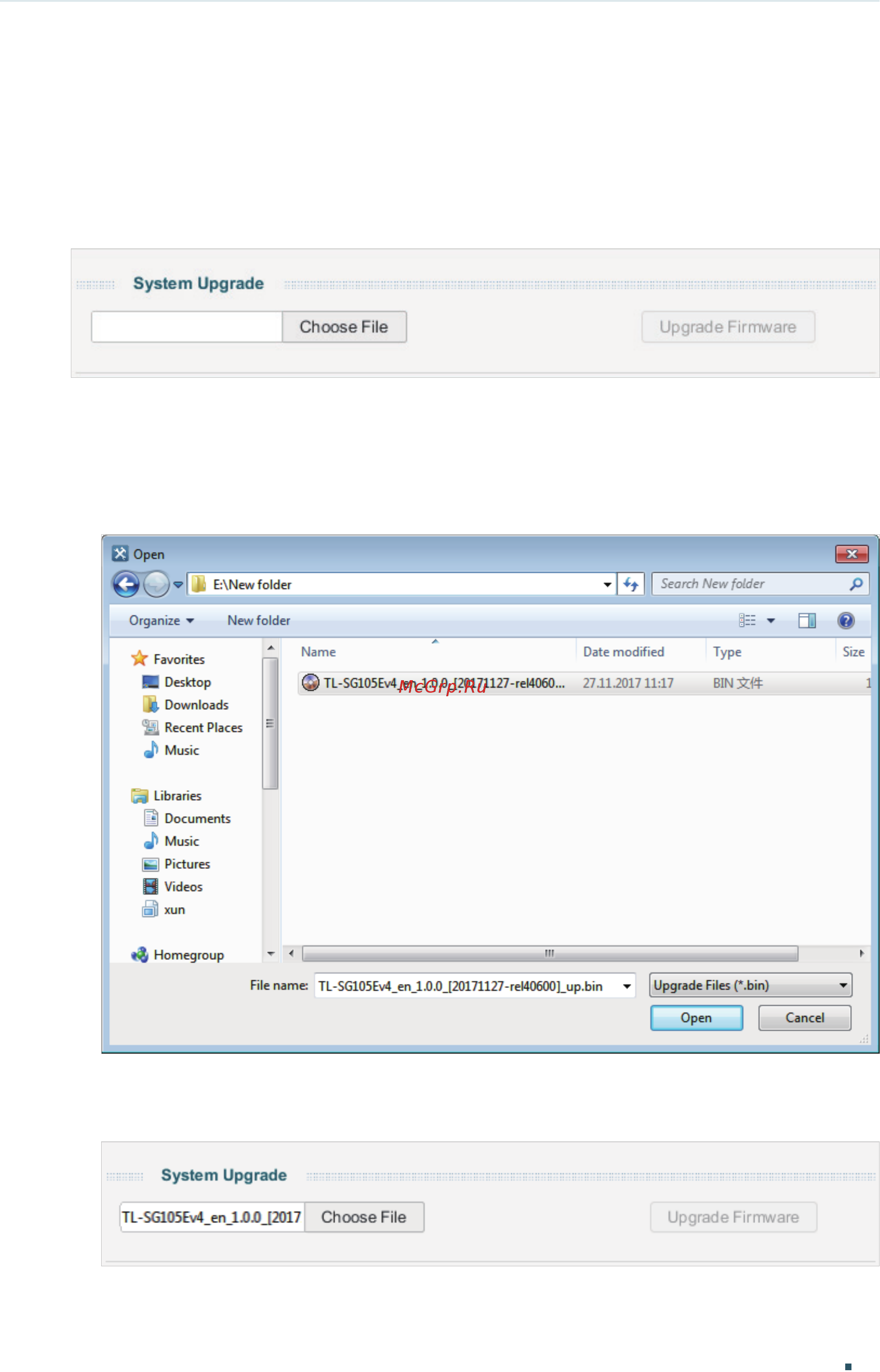

Choose the menu System > Firmware Upgrade to load the following page.
Figure 8-1 Upgrading the Firmware
Follow these steps to upgrade the firmware:
1) Click Choose File to load the following page. Enter the file path of the firmware in the
address bar and select the firmware. Click Open.
Figure 8-2 Choosing the Firmware
2) The following page will be displayed.
Figure 8-3 Choosing the Firmware
