User Guide 80
Searching Help Viewing Information About the Utility
3
Viewing Information About the Utility
Choose the menu Help > About to load the following page. You can view the information
about the utility, including the switch models supported by the utility, the version of the
utility software, and copyright information.

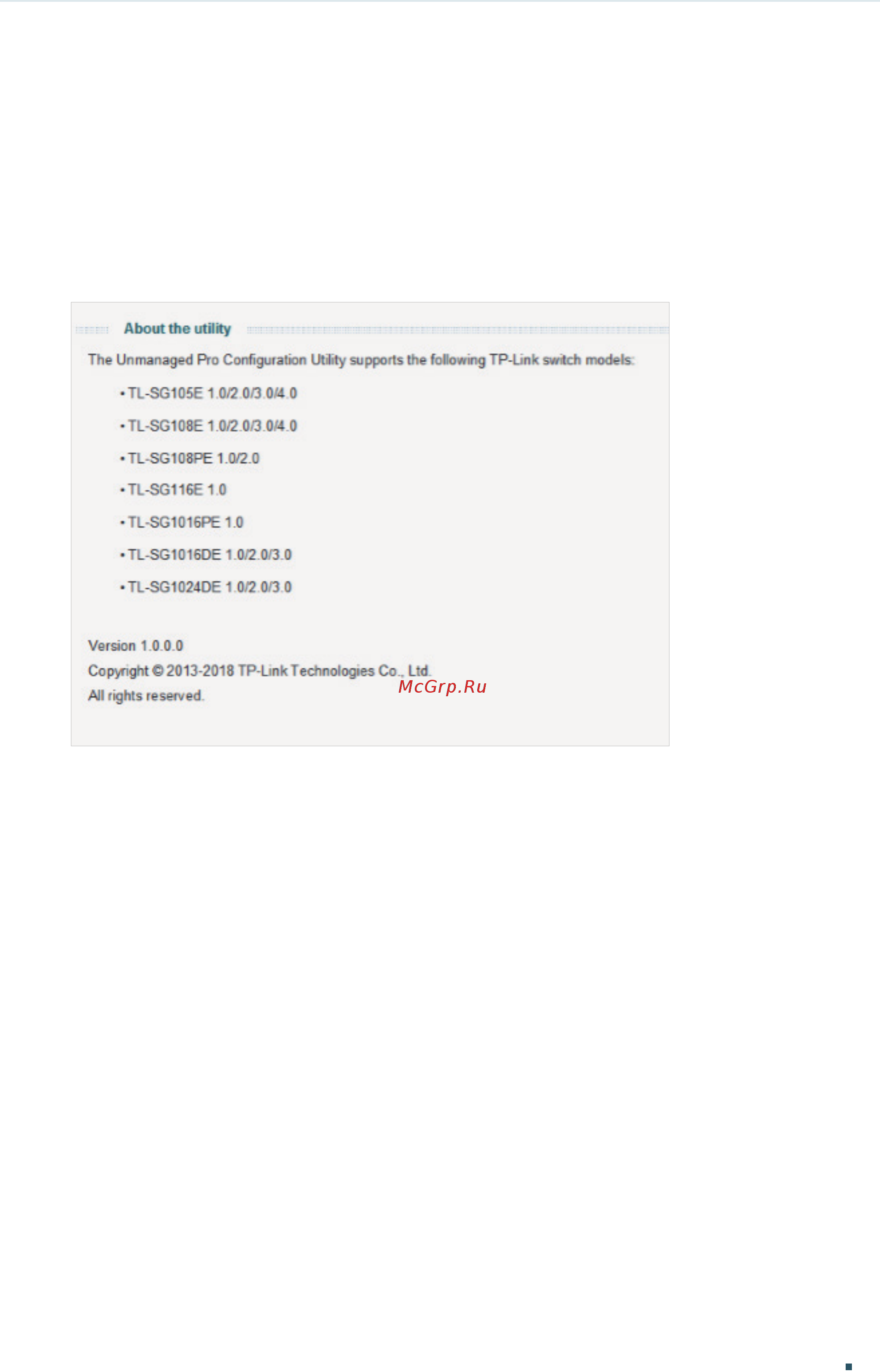

Figure 3-1 Viewing Information About the Utility
