User Guide 26
Managing System Backing Up and Restoring
Follow these steps to restore the switch to the previous configuration:
1) In the System Config Restore section, Click Choose File to load the following page.
Specify the configuration file path and select the configuration file. Click Open.

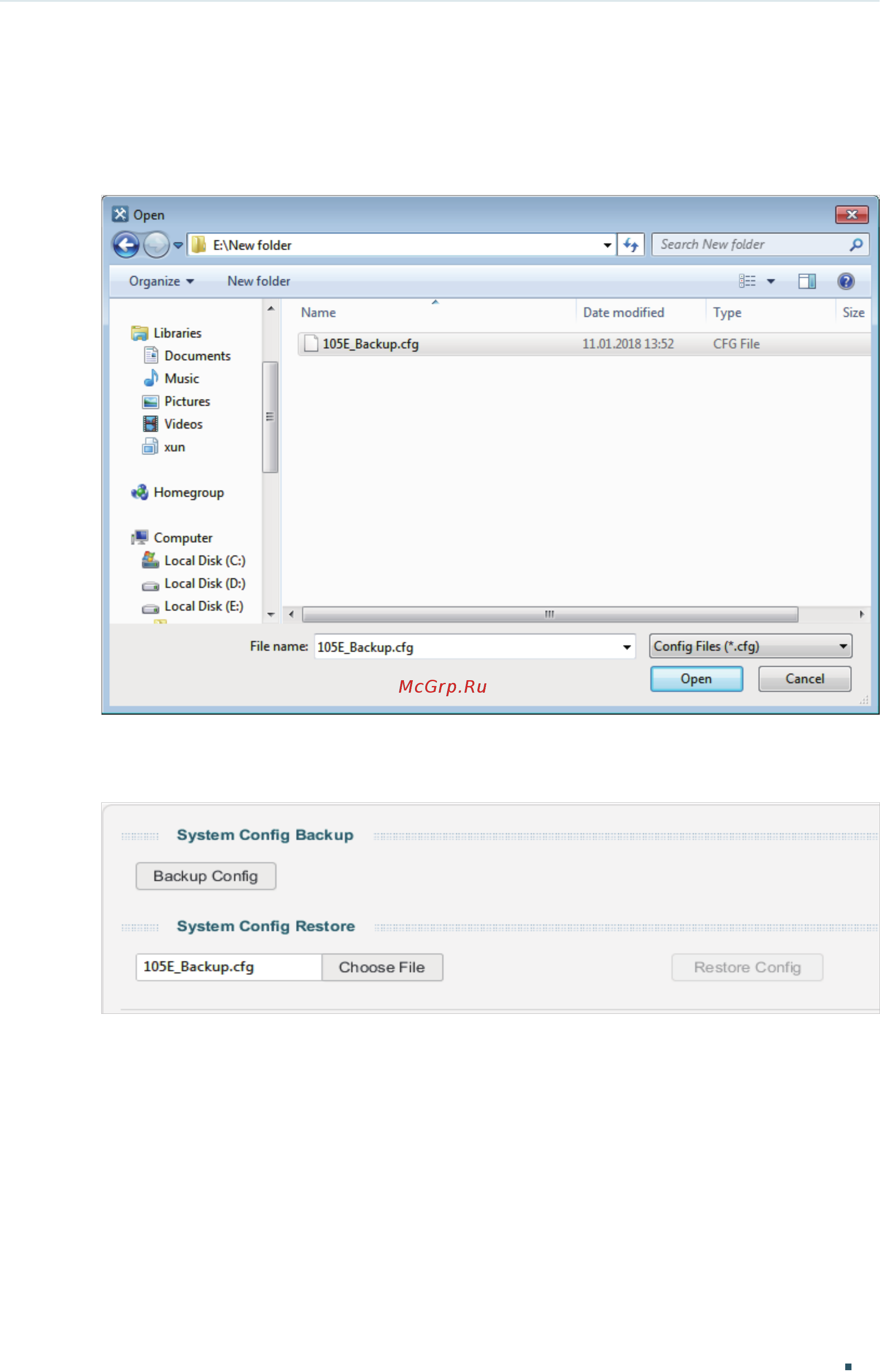

Figure 5-2 Choosing the Configuration File
2) The following page will be dispayed.
Figure 5-3 Choosing the Configuration File
