Evolis Quantum2 [12/18] Case 1

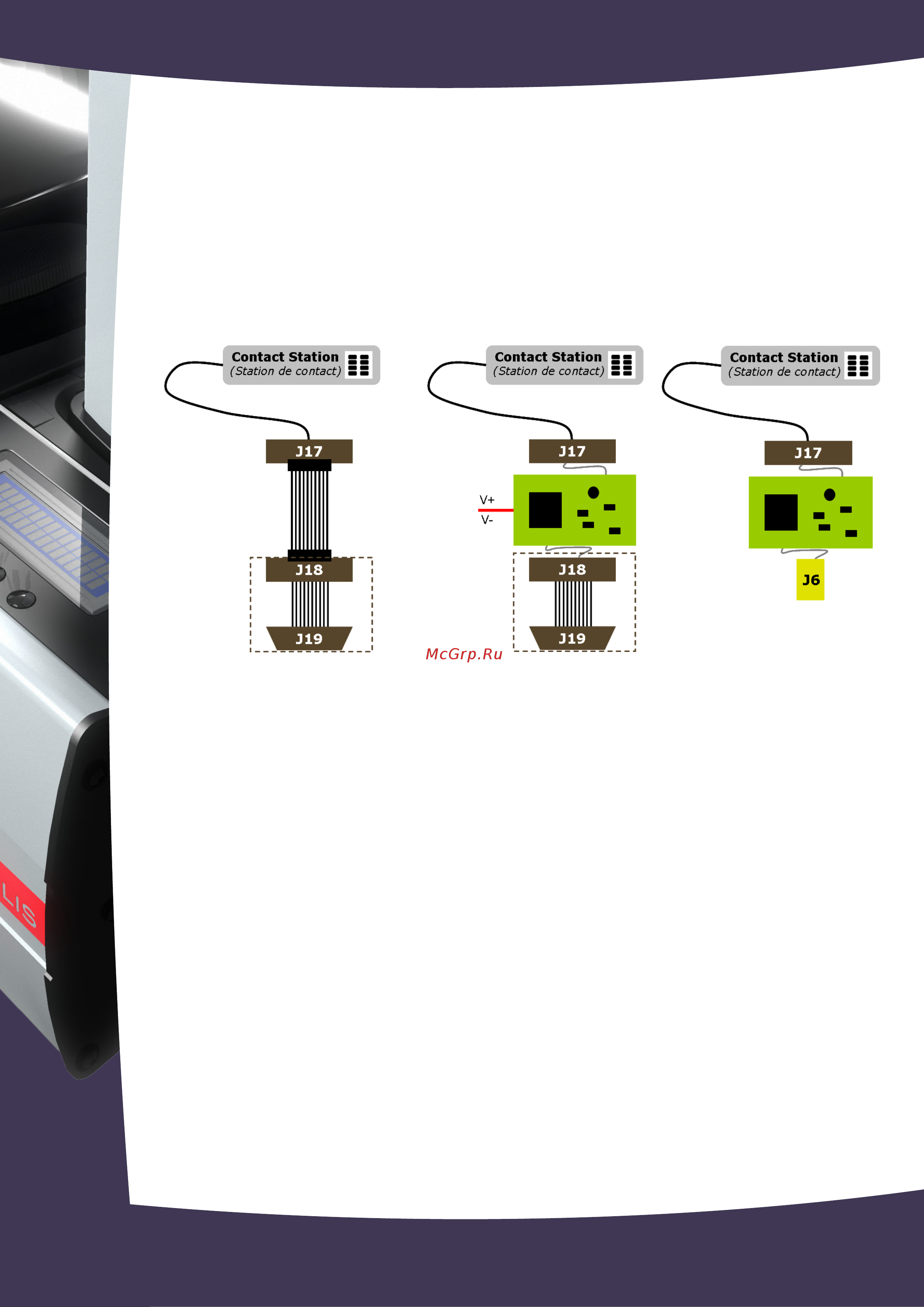

A contact smart card station can be connected in multiple ways. The most common ones are the

following:

case 1 - Use of an external smart card encoder. The encoder is plugged into the external DB9

(factory settings, if the printer is shipped without the encoder)

This mode supports all Evolis products that come with a smart card encoder option

(Pebble, Dualys, Securion)

case 2 - Use of an internal smart card encoder. The smart station is connected to the encoder,

and the encoder is connected to the external DB9 socket

case 3 - Use of an internal smart card encoder. The smart station is connected to the encoder,

and the encoder is connected to the internal USB hub

case 1

The connecting cable

J17 – J18, available as

a factory setting for

standard models

case 2

DB9/RS232 connection

case 3

USB connection
