Evolis Quantum2 [8/18] Ä overview of the connectors
![Evolis Quantum2 [8/18] Ä overview of the connectors](/views2/1484002/page8/bg8.png)
ä
The connectors required for integrating an encoder are provided on the motherboard of the
encoding module.

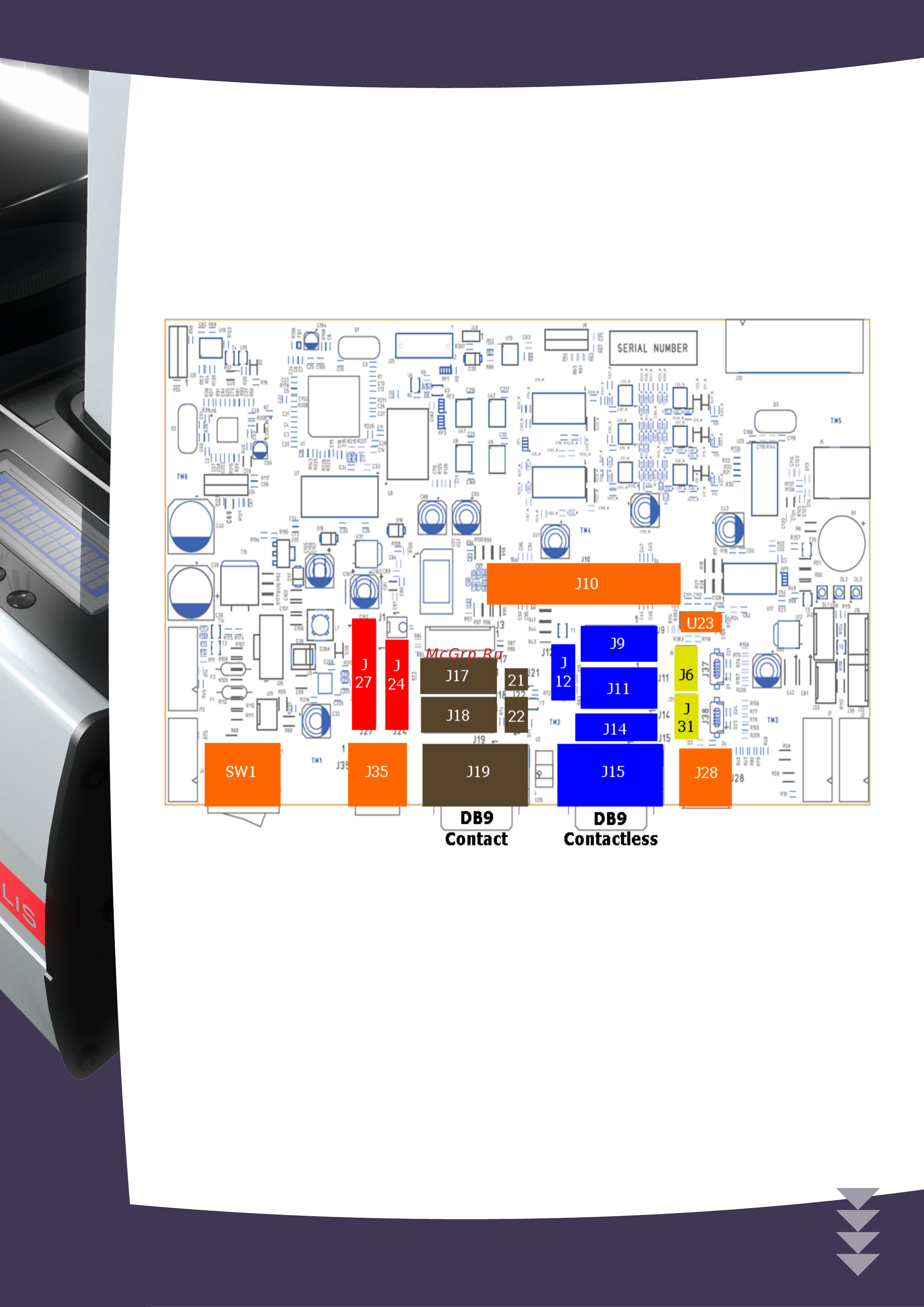

The following gure (top view taken from the back) shows all available connectors, as well as their
purpose and type.
Each connector has a reference number, stated in the technical charts, to identify each and
every cable terminal.
Grouped by colors, each connection item has a specic function which is highlighted in the
following colors:
Red : Power supply
Brown : of the smart card contact station (external DB9 connector), and of its encoder
(RS232)
Blue : Monitoring of the contactless smart card encoder (RS232 or TTL)
Yellow : Monitoring of contact and contactless smart card encoders using the internal USB
hub
Orange : lectrical or electronic components required for operating the module and
connecting the encoder
The plug board chart is available in Appendix 1. Please review it carefully before undertaking any
intervention.
Factory setting:
l Flat cable between J17 and J18
l Flat cable between J9 and J11
l Jumper positioned between J22-1 and J22-2
7
