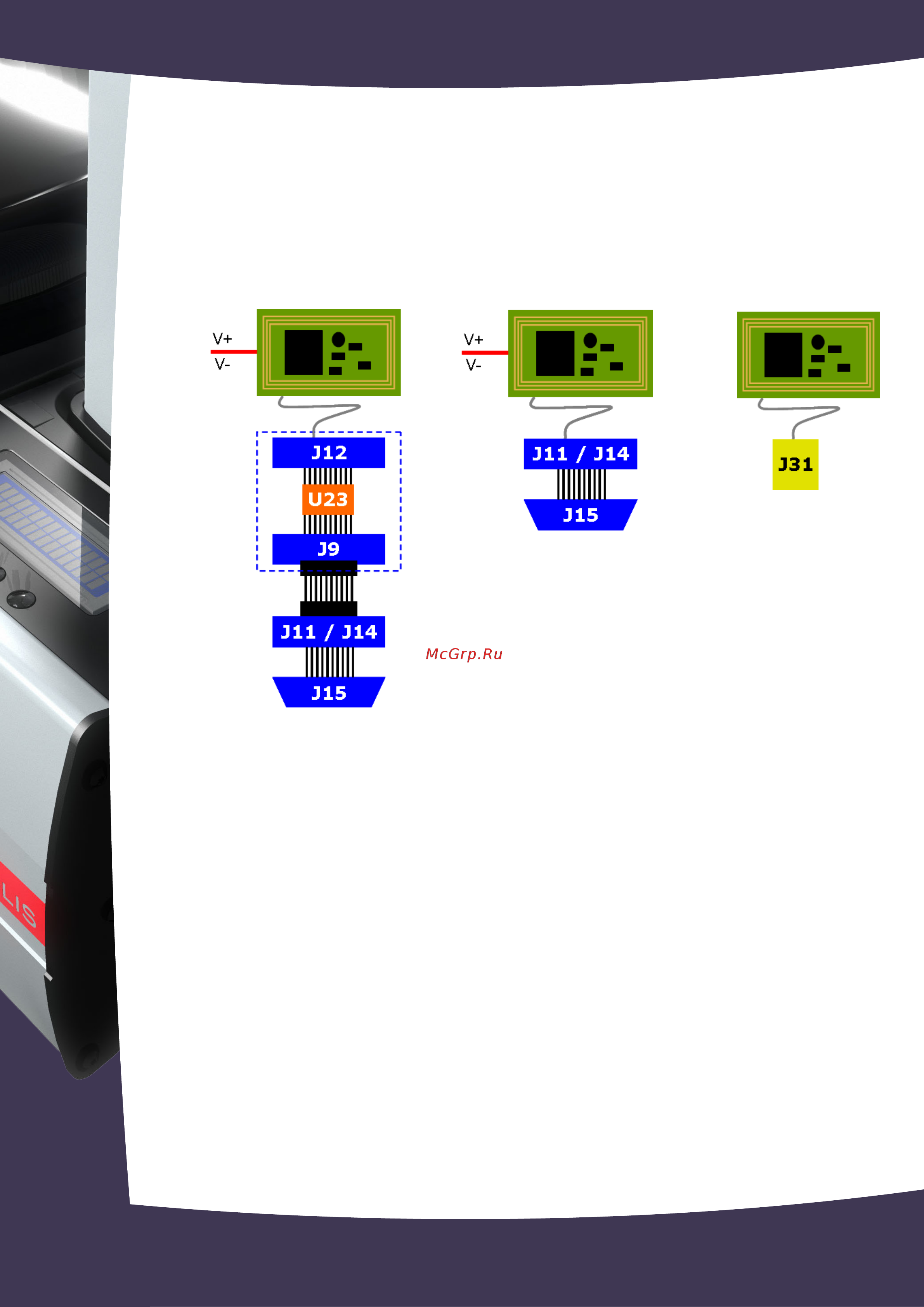

A contactless smart card station can be connected in various ways. The most common ones are
the following:
case 1 - Use of an internal smart card encoder with a TTL interface that requires a TTL ä
RS232 conversion. Output to the DB9 connector
case 2 - Use of an internal smart card encoder that has a RS232 data interface. Output to the
DB9 connector
case 3 - Use of an internal smart card encoder with a USB interface that also powers the
system. Connection to a USB port from the internal USB hub
case 1
Connecting cable J9 –
J11, available as a factory
setting for standard
models
case 2
DB9/RS232 connection
case 3
USB connection
