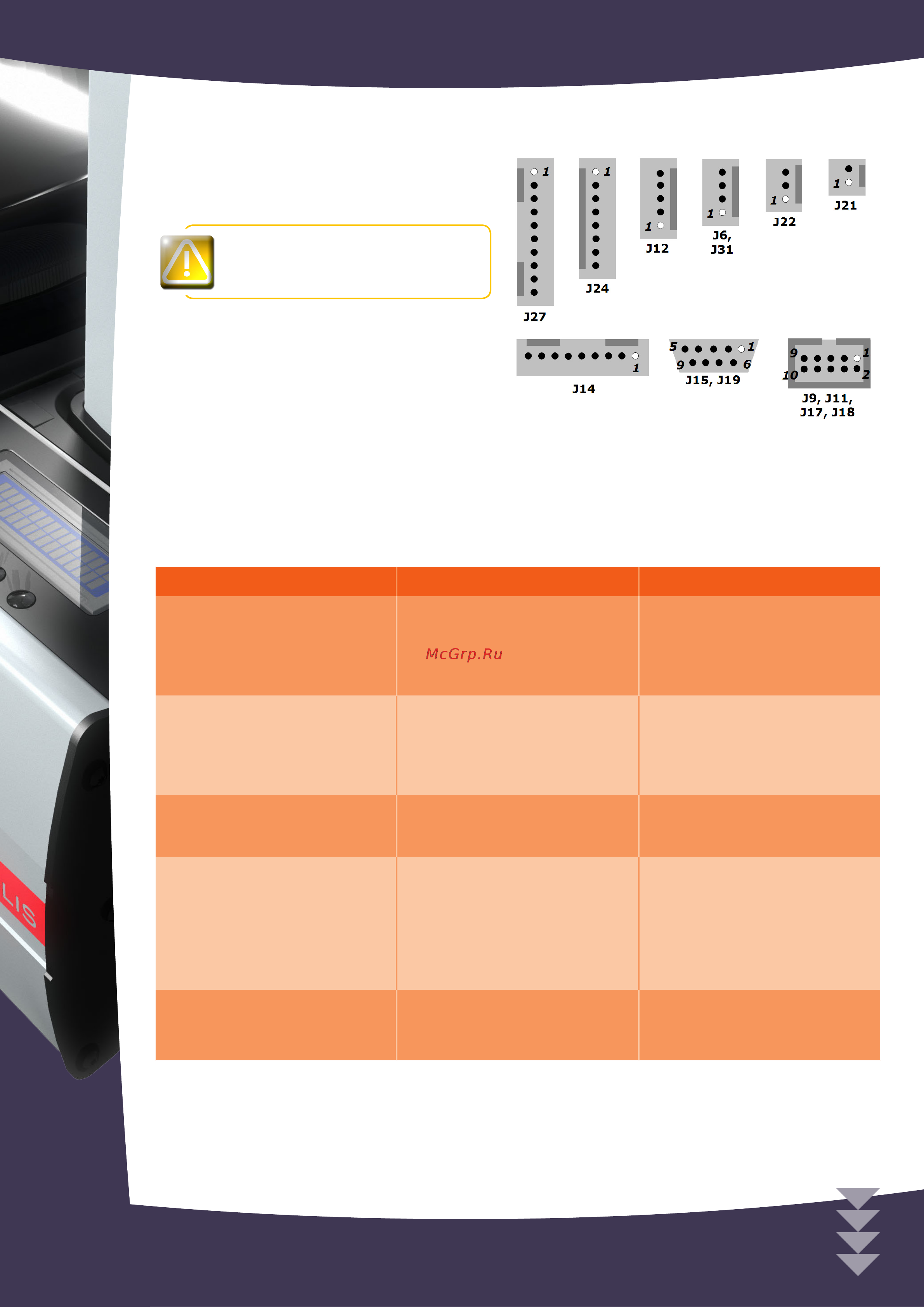

Evolis Quantum2 [9/18] Ä electrical and electronic items required for operating the module and connecting the encoders



The number « 1 » located next to the

white circle identies the marker for each

connector.

For connectors with two

rows, you must pay attention

the numbering of all pins!





(Items colored orange)

  

SW1 On/Off power switch

Switches the printer on or off

NOTE:

Always turn the printer off before

working on its electrical and

electronic parts

J35

Connecting the external power

supply

NOTE:

Always unplug the power cable

before working on the electrical

and electronic parts of the

printer

J28 USB port (onto the USB hub)

Enables a USB device to be

plugged into the printer’s internal

USB hub

J10

Connector for the reversible

encoding unit

This connector facilitates

communication between

the electronic board and the

encoding module.

Do not use this connector. It is

dedicated to monitoring the

encoding module.

U23 MAX232 component

TTL/RS232 – ST3232E converter

TTL signal: J12

RS232 signal: J9
