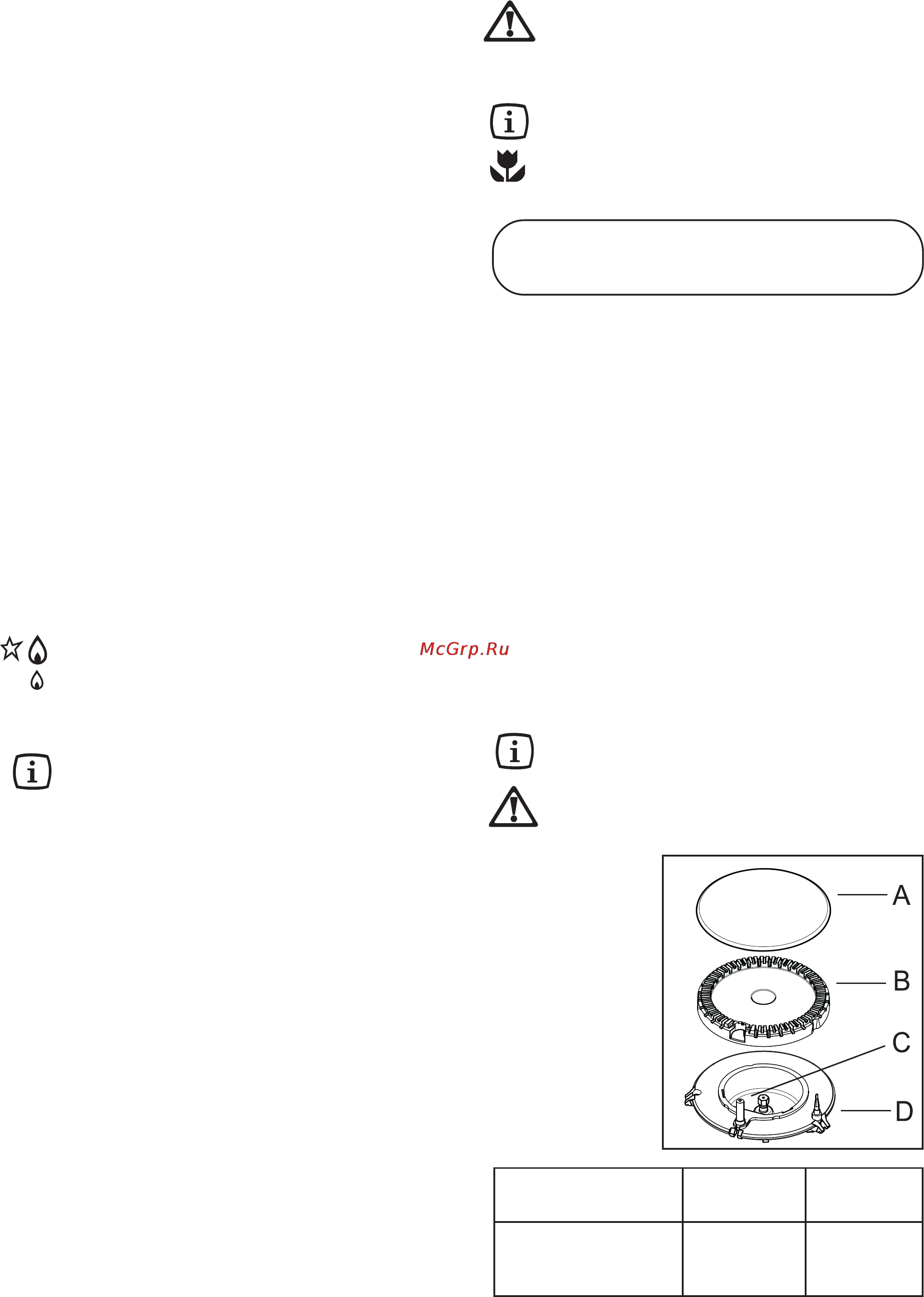

Hob burners control knobs
The hob burners control knobs are situated on the hob
front panel. The symbols on the knobs mean that :
there is no gas supply
there is maximum gas supply
there is minimum gas supply
Lighting the burners
For easier lighting, proceed before putting a
pan on the pan support.
Push the relevant knob down and turn it anti-clockwise
until it reaches the "maximum" position.
Mod. ZGF 646 ICTX
After lighting the flame, keep the knob pushed down
for about 5 seconds. This will allow the
"thermocouple" (Fig. 1 lett. D) to be heated and the
safety device to be switched off, otherwise the gas
supply would be interrupted.
Then, check the flame is regular and adjust it as
required.
If you cannot light the flame even after several
attempts, check the "cap" (Fig. 1 lett. A) and the
"crown" (Fig. 1 lett. B) are in the correct position.
To put the flame out, turn the knob to the symbol
•
.
• Always turn the flame down or put it out before
taking the pans off the burner.
Using the hob correctly
To ensure maximum burner efficiency, it is strongly
recommended that you use only pots and pans with a
bottom fitting the size of the burner used, so that flame
will not spread beyond the bottom of the vessel (see the
table beside).
It is also advisable, as soon as a liquid starts boiling, to
turn down the flame so that it will barely keep the liquid
simmering.
Use only pans or pots with flat bottom.
Carefully supervise cookings with fats or oil,
since these types of foodstuff can result in a
fire, if over-heated.
Burner minimum maximum
diameter diameter
Big (rapid) 180 mm. 260 mm.
Medium (semirapid) 120 mm. 220 mm.
Small (Auxiliary) 80 mm. 160 mm.
Fig. 1
FO 0204
Contents
The following symbols will be found in the text to guide
you throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
Hints and Tips
Environmental information
Guide to Use the instructions
These instructions are only for the countries
stated by the symbol printed on the front cover
of this instruction book.
For the User
Important Safety Information 2
Instruction for the User 3
Cleaning and Maintenance 4
For the Installer
Technical Data 5
Electrical Connection 6
Adaptation to different types of gas 7
Building In 8
Service and original spare parts 11
Instruction for the User
""
""
"
•
MANUFACTURER:
ELECTROLUX ITALIA S.p.A.
C.so Lino Zanussi, 30
33080 Porcia (PN) - Italy
A - Burner cap
B - Burner crown
C - Ignition candle
D - Thermocouple
