Gas Burners Rating
Rapid Burner (big) 3,0 kW (G20) - 2,8 kW (G30/G31)
Semirapid Burner (medium) 2,0 kW
Auxiliary Burner (small) 1,0 kW
Class 3 Appliance
Category II2H3B/P
Setting Natural Gas G20 - 20 mbar
Gas connection G 1/2"
Electric Supply 230 V
~ 50 Hz
Hob recess dimensions
Length 560 mm.
Width 480 mm.
Technical data
The following instructions about installation and
maintenance must be carried out by qualified
personnel in compliance with the regulation in
force.
The appliance must be electrically disconnected
before all interventions. If any electric supply to
the appliance is required to carry out the work,
ensure all the necessary precautions are followed.
The side walls of the unit in which the hob is
going to be installed, must not exceed the height
of the working top.
Avoid installing the appliance in the proximity of
inflammable materials (e.g. curtains, tea towels
etc.).
Gas Connection
Choose fixed connections or use a flexible pipe in
stainless steel.
If using flexible metallic pipes, be careful they do not
come in contact with mobile parts or they are not
squeezed. Use the same attention when the hob is
combinated with an oven.
IMPORTANT - To ensure a correct operation, a saving
of energy and the long-life of the appliance, the voltage
pressure of the appliance must correspond to the
recommended values.
The adjustable connection is fixed to the comprehensive
ramp by means of a threaded nut G 1/2".
Interpose the sealing between the components as shown
in Fig. 4.
Screw the parts without forcing, adjust the connection in
the required direction and tighten everything.
IMPORTANT - When the final connection has been
made, it is essential that a thorough leak test is carried
out on the hob and installation. Use some soapy water,
never a flame.

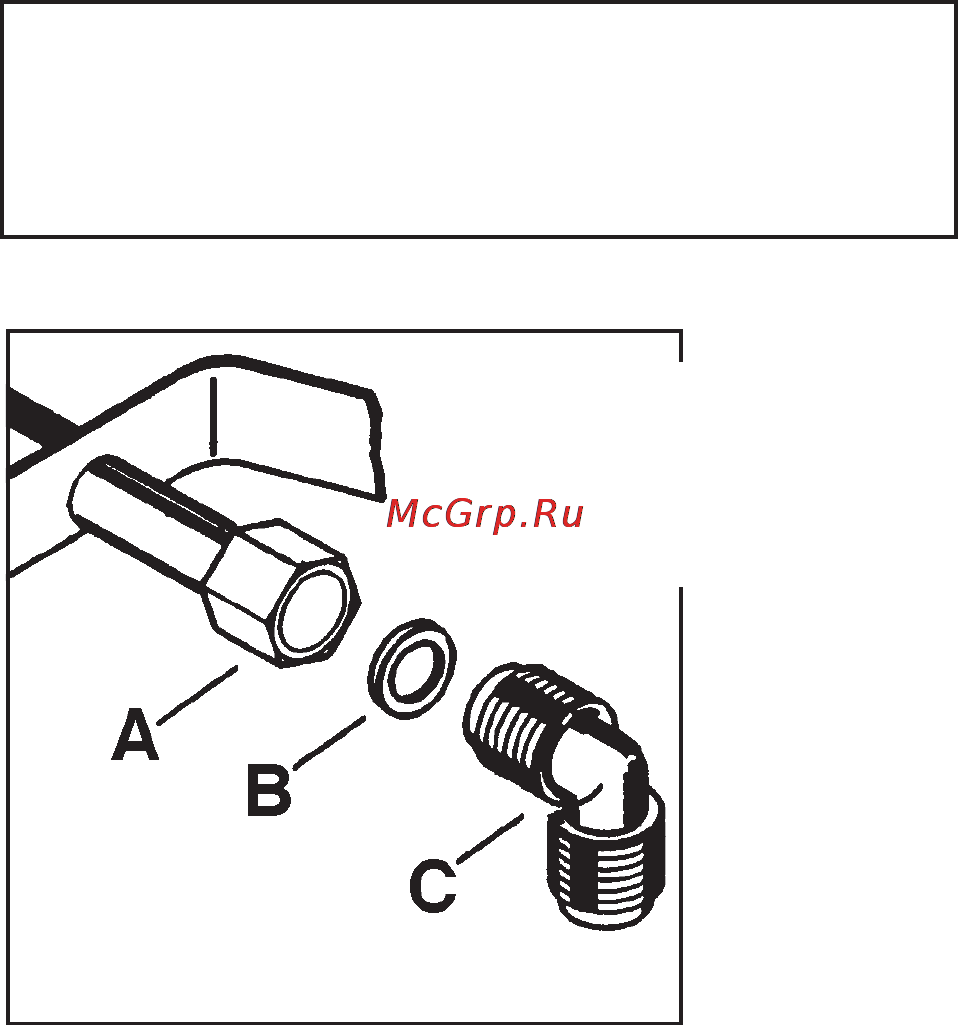

A) Ramp with ending nut
B) Seal
C) Adjustable connection
Fig. 4
FO 0264
Instruction for the Installer
THE MANUFACTURER WILL NOT ACCEPT LIABILITY,
SHOULD ANY OF THE OTHER SAFETY INSTRUCTIONS
INCORPORATED IN THIS BOOK OR THE REGULATION IN
FORCE BE IGNORED.
