Injector replacement
Remove the pan supports.
Remove the burner's caps and crowns.
With a socket spanner 7 unscrew and remove the
injectors (Fig. 7), and replace them with the ones
required for the type of gas in use (see table 2).
Reassemble the parts, following the same procedu-
re backwards.
Replace the rating label (placed near the gas supply
pipe) with the relevant one for the new type of gas
supply. You can find this label in the package of the
injectors supplied with the appliance.
Should the feeding gas pressure be different or
variable compared with the required pressure, an
appropriate pressure adjuster must be fitted on the gas
supply pipe, in compliance with the rules in force.

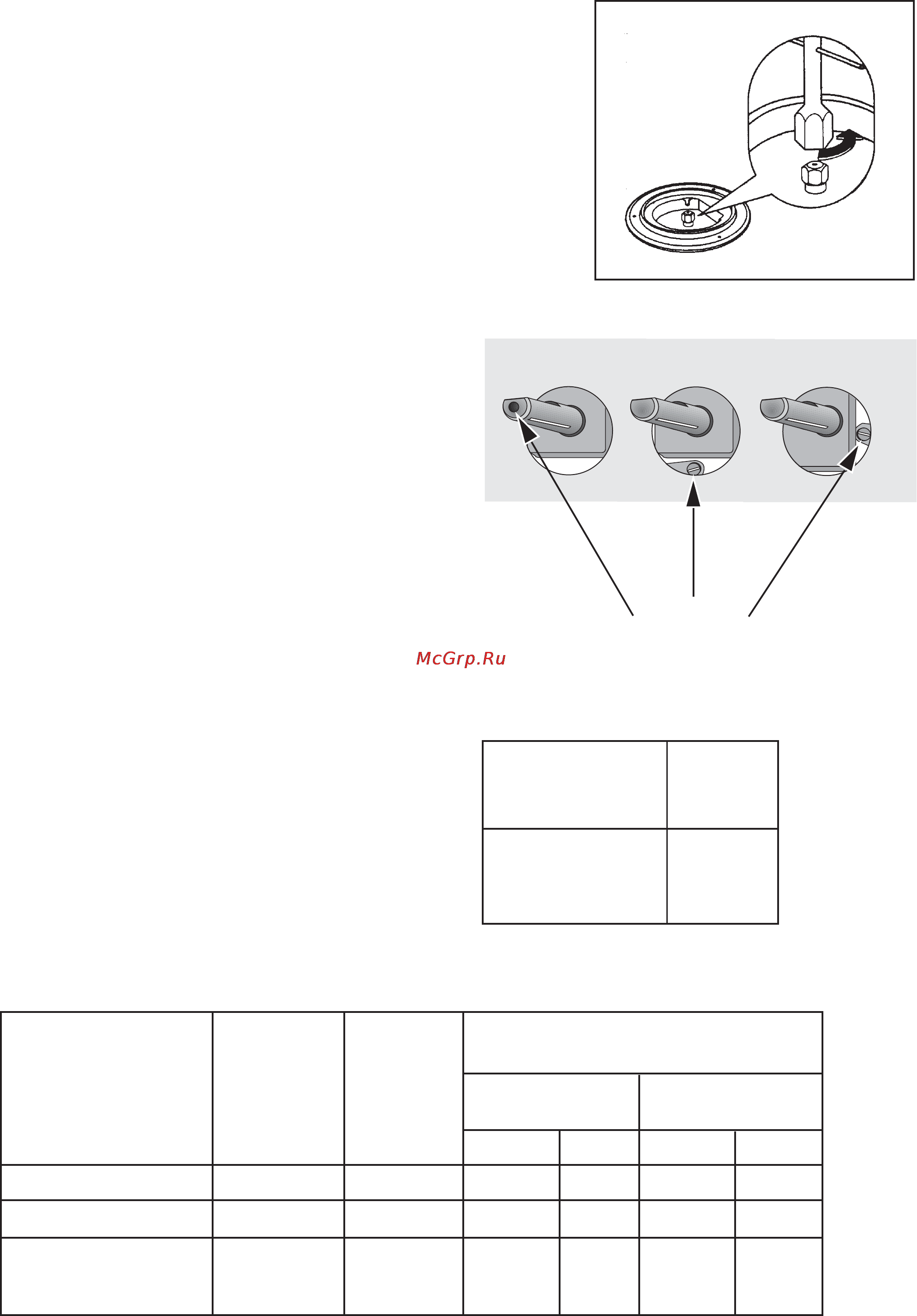

Fig. 7
FO 0392
Adjustment of minimum level
To adjust the minimum level of the burners, proceed as
follows:
Light the burner.
Turn the knob on the minimum position.
Remove the knob.
With a thin screwdriver, adjust the by-pass screw
positioned in the centre of the gas tap control shaft
(see Fig. 6). If changing from natural gas 20 mbar to
liquid gas, completely tighten the adjustment screw
in. If changing from liquid gas to natural gas 20 mbar,
undo the by-pass screw about 1/4 of a turn. If changing
from natural gas 20 mbar to natural gas 13 mbar undo
the by-pass screw about 1/4 of a turn. If changing from
liquid gas to natural gas 13 mbar, undo the by-pass
screw about 3/4 of a turn.
Finally check the flame does not go out when quickly
turning the knob from the maximum position to the
minimum position.
This procedure can easily be carried out, anyhow the
hob has been positioned or built in the working top.
BURNER NORMAL REDUCED NORMAL
POWER POWER POWER
kW kW NATURAL GAS LPG
G20 - 20 mbar G30/30 mbar
inj. 1/100 m
3
/h inj. 1/100 g/h - G30
Auxiliary (small) 1,0 0,33 70* 0,095 50 73
Semi-rapid (medium) 2,0 0,45 96* 0,190 71 145
Natural gas :
Rapid (big) 3,0 0,75 119* 0,286 86 204
LPG : 2,8
Burner Ø By-pass
in 1/100
of mm.
Auxiliary 28
Semi-rapid 32
Rapid 42
Table 1 : BY-pass diameters
Table 2 : injectors
Fig. 8
By-pass
screw
Adaptation to different types of gas
