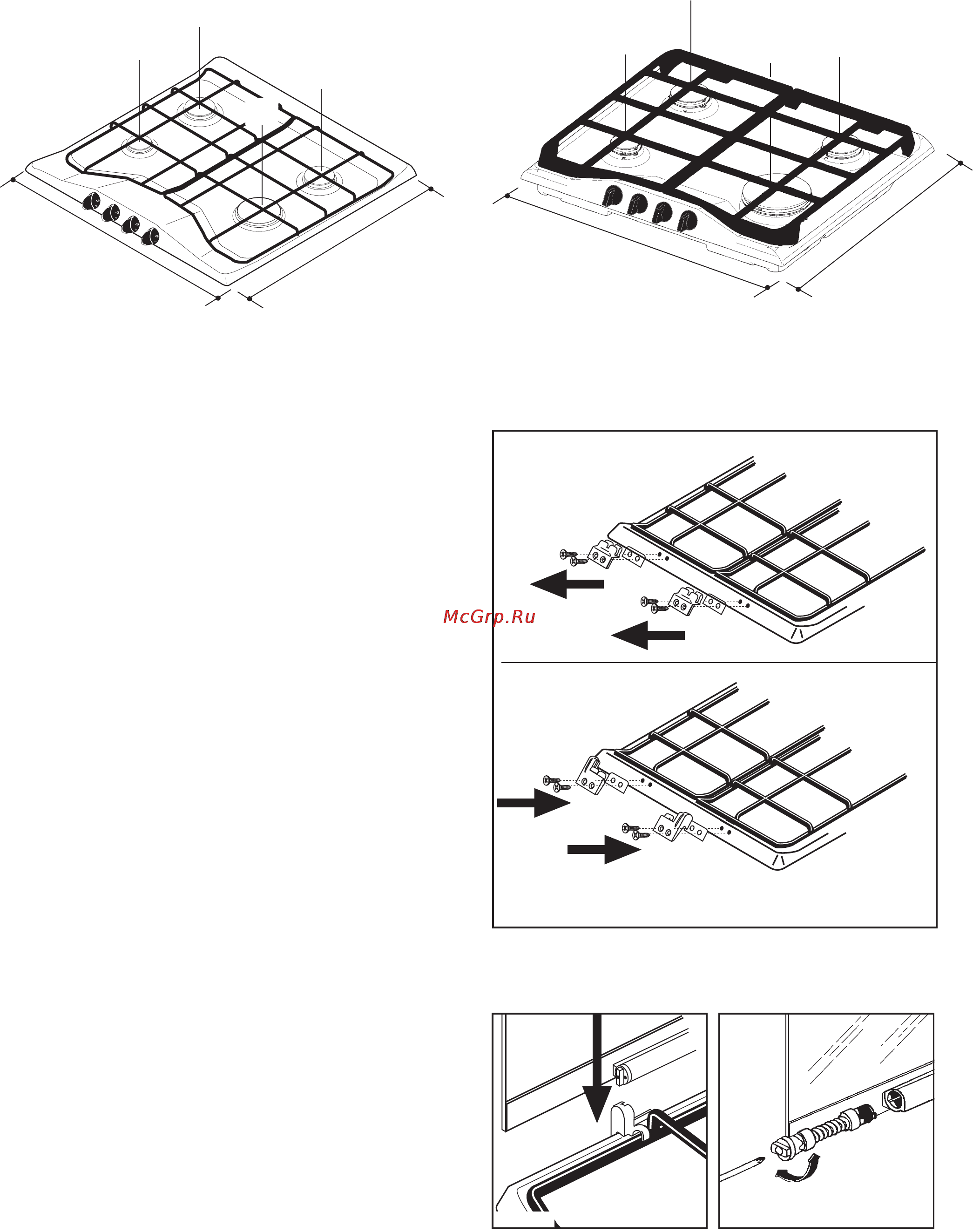

Zanussi ZGF646IX [8/24] Building in

Fitting the lid (only mod. ZGF 646 IX)

We recommend the lid hinge block are fitted

before installing the hob into the worktop.

To install the lid onto the hob, proceed as follows:

a. Remove the right and left hand grid blocks fitted to the

back of the hob, by unscrewing the relevant screws

(Fig. 10)

b. Fit the lid hinge blocks onto the hob, using the original

screws, ensuring that the relevant shims are fitted

between the hinge blocks and the hob (Fig. 10);

c. Fit the left hand lid hinge (marked S) into the hinge

block (Fig.11);

d. Carry out the same operation with the right hand lid

hinge (marked D).

Adjusting the lid balance

To adjust the lid balance, turn clockwise or anti-

clockwise the central screw of the right- and left-hand

hinges (Fig. 12).

A = Auxiliary burner

SR = Semirapid burner

R = Rapid Burner

These hobs can be inserted in a built-in kitchen unit

whose depth is between 550 and 600 mm. The hobs

dimensions are shown in Fig. 9.

Fig. 10

Fig. 11

Fig. 12

FO 2036

FO 2037

FO 2035

510

580

510

Fig. 9

Building in

ZGF 646 IX

ZGF 646 ITCX

580
