Installation and assembly

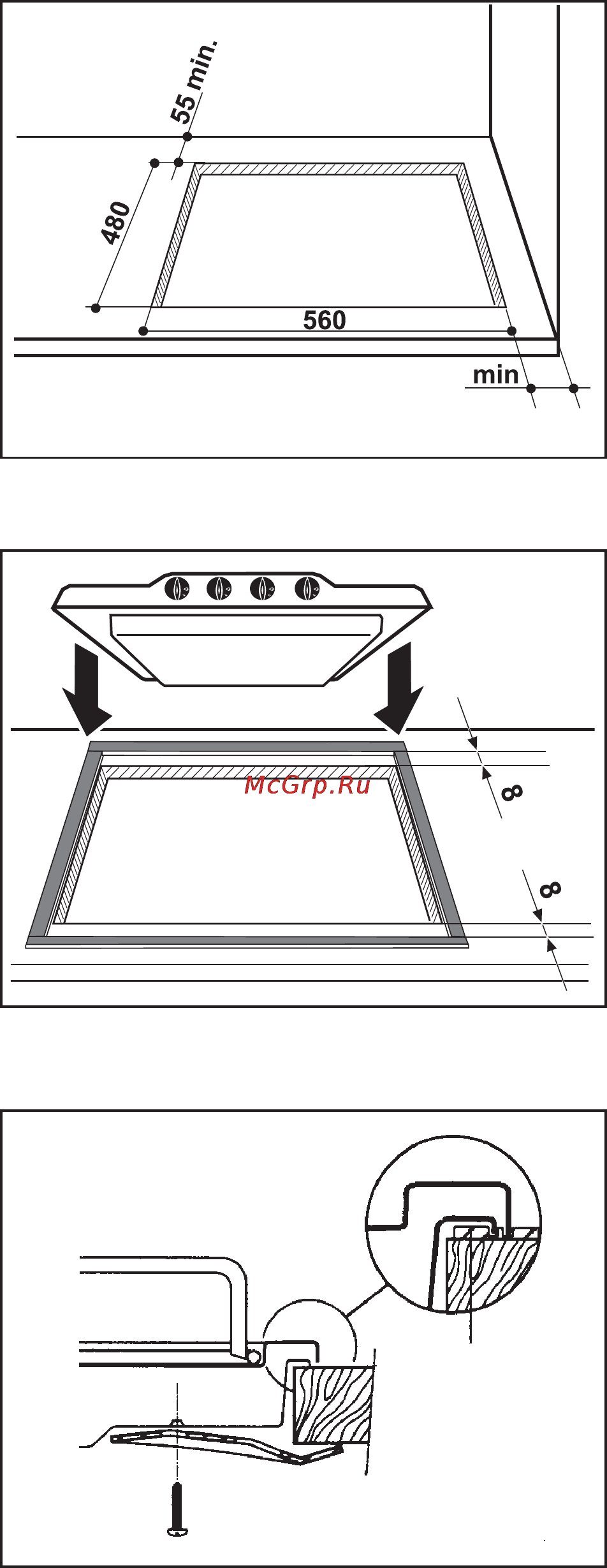

These hobs can be installed in a kitchen unit with an

opening for insertion whose dimensions are shown in

Fig. 13.

The edge of the cut out must have a minimum distance

from the rear wall of 55 mm.

If there are side walls, or sides of the furniture unit near

the hob, the cut out edges must have a minimum

distance of 100 mm. as shown in Fig. 13.

Carry out the building in of the hob as follows:

• put the relevant sealings, supplied with the hob, on

the edges of the cut out, as shown in Fig. 14, taking

care that the sealings meet without overlapping;

• place the hob in the cut out, taking care of its centring;

• fix the hob with the relevant screws (Fig. 15). The

traction of the screws is able to trace the sealing, any

excess of which can then be easily removed.

The edge of the hob forms a double labyrinth seal

which provides a total guarantee against infiltration of

liquids.

Fig. 15

FO 0199

a) sealing

Fig. 13

Fig. 14

FO 2038

100
