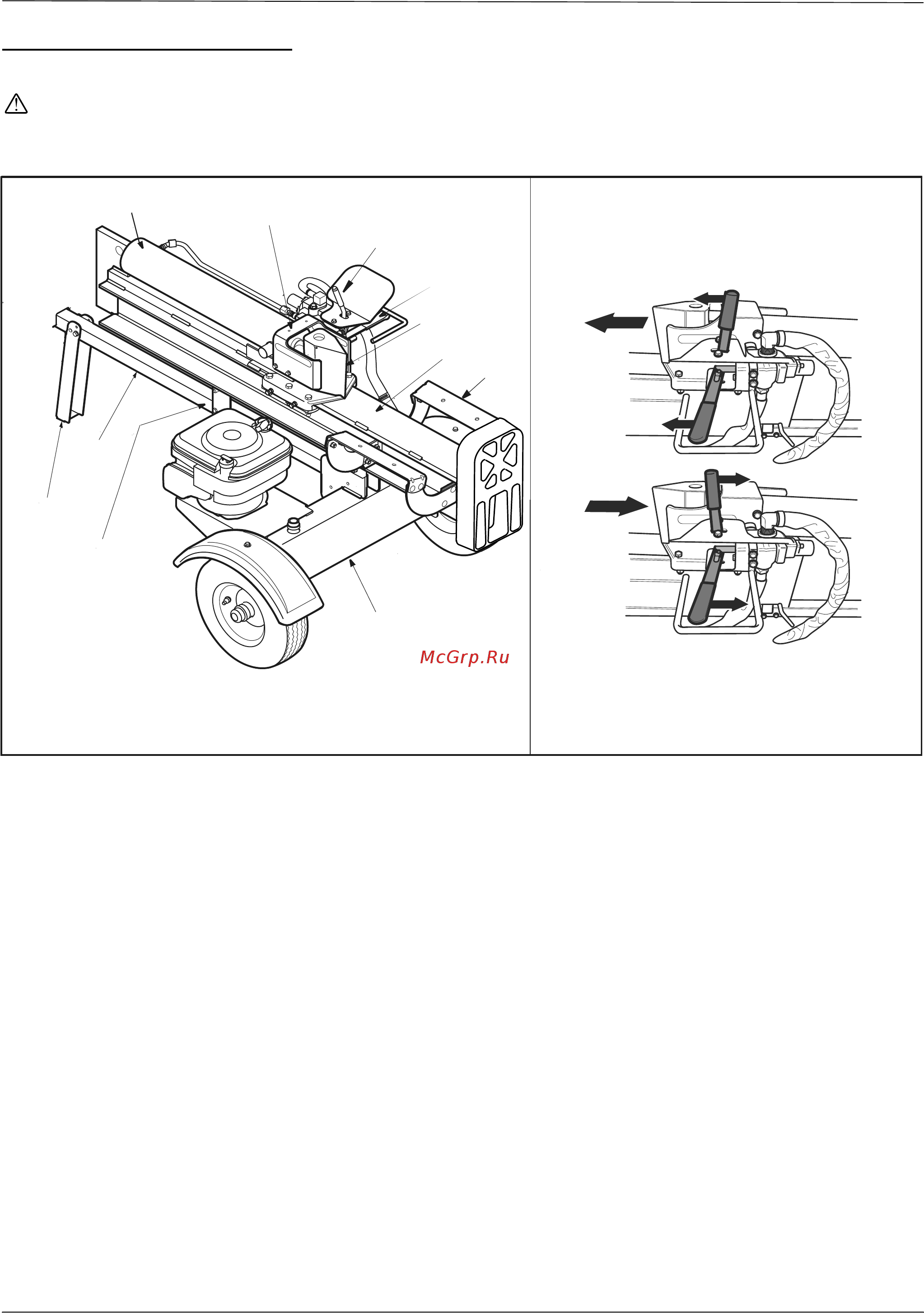

Operating Manual for Wood Splitter English Controls Fig 11 A Caution Compare the diagram in Fig 11 with the controls on your unit and familiarise yourself with their functions before you start work In an emergency you must know how to switch off the unit quickly Fig 11 1 Horizontal column lock 2 Connecting rod 3 Support block Operating levers 4 Cylinder 5 Stripper 6 Operating levers 7 Splitting wedge 8 Splitting column 9 Wood support 10 Hydraulic tank 11 Feed position forward movement of the splitting wedge to split the wood Note Both levers A and B must be pressed simultaneously 12 Reverse position backward movement of the splitting wedge Note Both levers A and B must be pressed simultaneously Feed position Press both operating levers to the left in order to drive the splitting wedge into the piece of wood The operating levers 6 or A B have three positions Note Both operating levers must be pressed simultaneously as soon as one lever is released the splitting wedge stops Note Both operating levers must be pressed simultaneously as soon as one lever is released the splitting wedge stops Engine controls The positions and functions of the con trols for the engine can be found in the enclosed engine manual Neutral position Release one or both operating levers to stop the movement of the splitting wedge Reverse position Press both operating levers to the right in order to retract the splitting wedge 7
