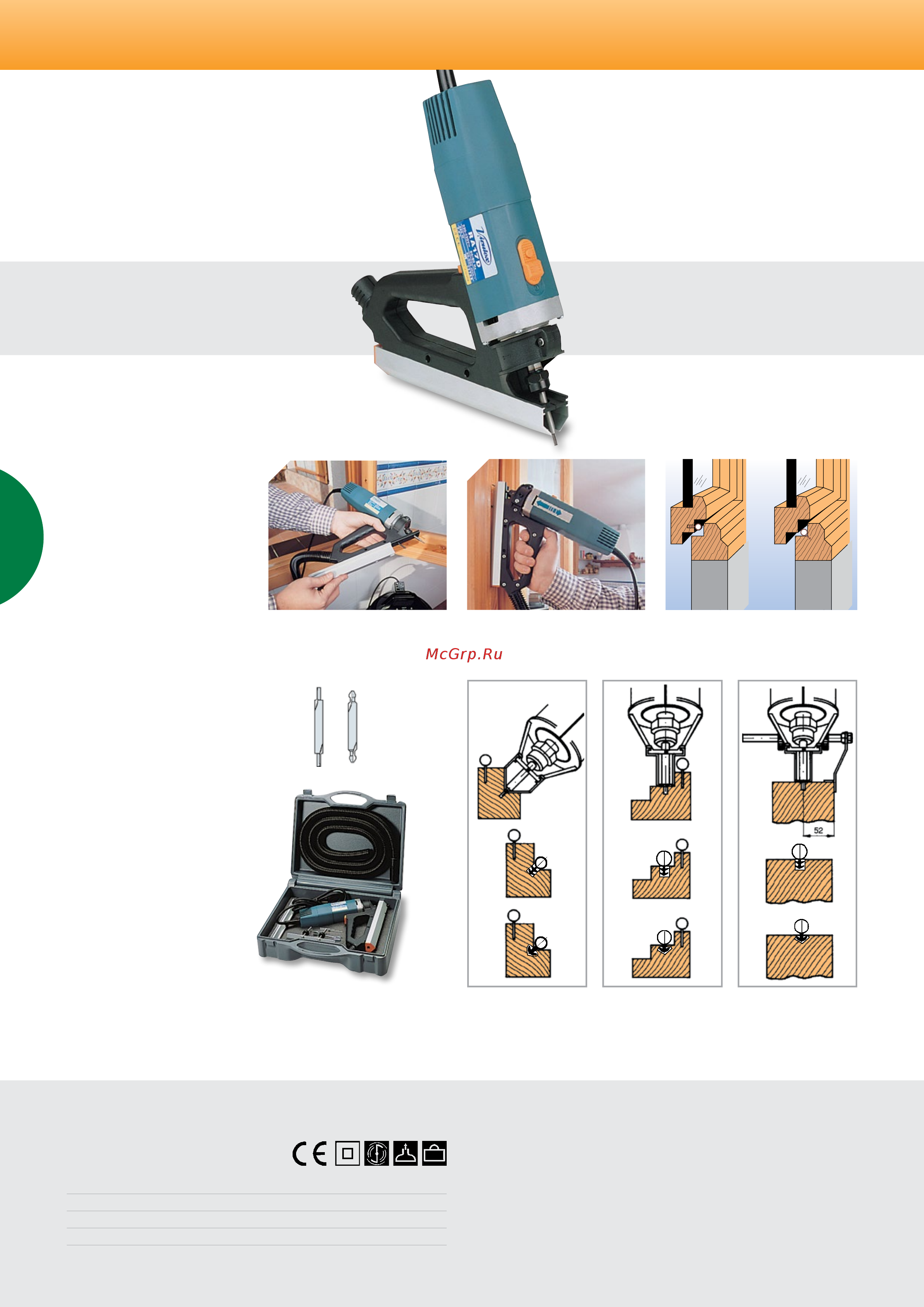

Installation and restoration of doors and windows
Machine specially designed for
slotting wooden doors and windows,
for installation of silicon insulating
joints. Equipped with double point 3
mm bit, two interchangeable bases,
lateral fence, dust collector pipe and
carrying case.
Equipped with 2 types of in terchan-
geable fences which allow you to
make slots at 45° angle or straight.
With centering pivot easing entry
of the bit at the start of slotting
process.
Standard equipment
Carrying case, combined double side bit, 90° guide,
straight guide, reversible fence, depth gauge, service
keys and dust collector connection 2.25 m.
Optional accessoires
1222024 Chuck collet 8 mm
1222085 Chuck collet 6.35 mm (1/4”)
1740103 Double slotting carbide
bit for slot e=3
1740104 Double slotting carbide
bit for anchor slot
Silicon insulating joints:
see page 53
Specifications
Input power 550 W
Chuck collet 6 mm
No-load speed 30,000/min
Weight 1.9 kg
Using a 90° fence, slots
at 45° angle on rabated
frames and windows.
Using the straight fence:
straight slots on rabated
frames and windows.
Using the straight fence
and reversible square,
slots on smooth areas
such as the side of door
hinges.
| Slotting machine
Slots on windows, doors or frames.
