61

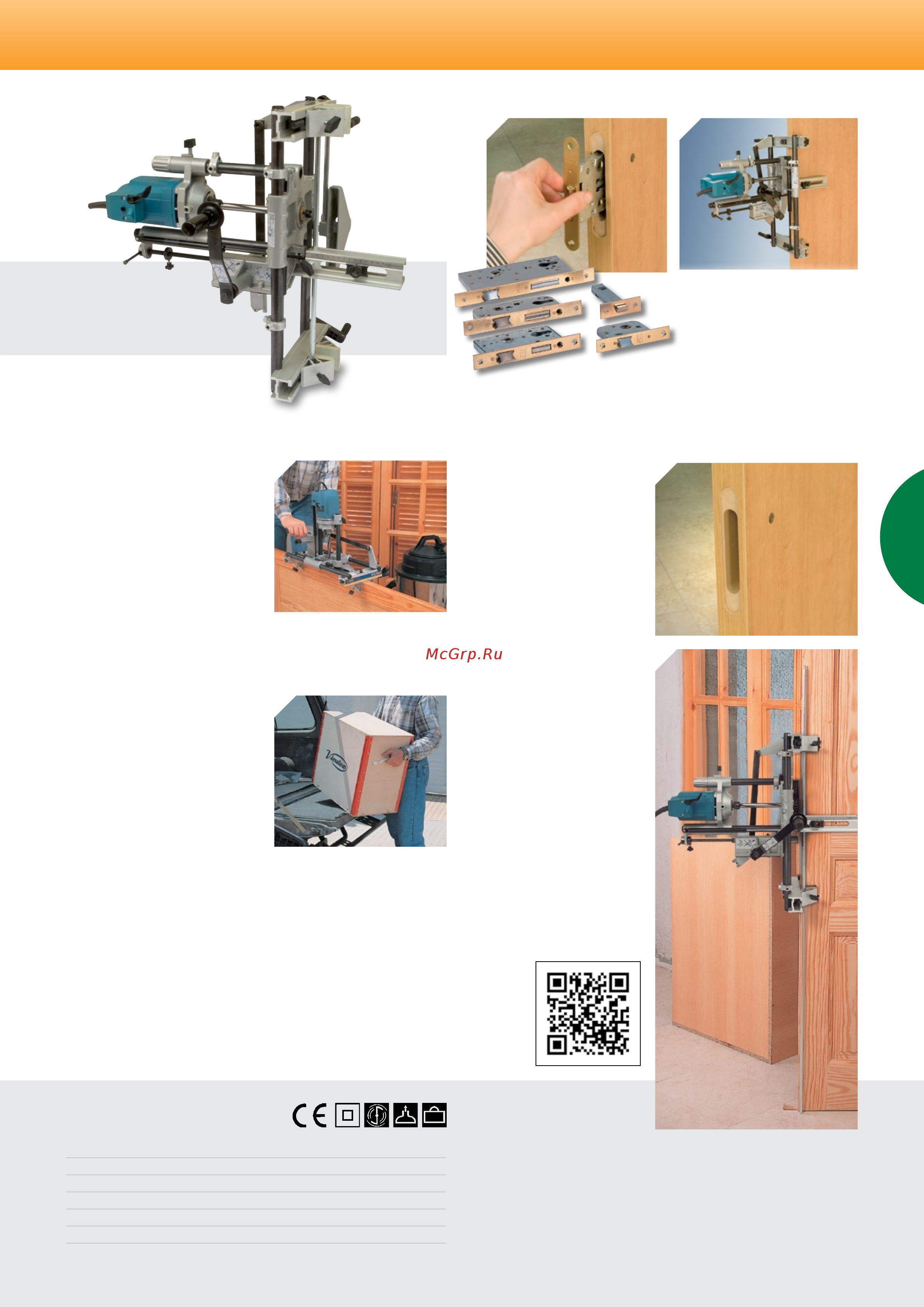

FC116U
Specially designed for quick, pre-
cise mortising on doors or other
elements, either at the work site or
in the workshop. Its special fixing
system allows the mortising of
doors that have already been hung,
without damaging the surface. Its
quick measurement adjustment
permits multiple mortises to be made
in record time. Possibility to trim the
frontal lock plate just changing the
bit. Equipped as standard with the
accessory UT16I which allows to take
references for drilling the hole for
the handle and key cylinder. Also able
to work horizontally. For mortising
grooved doors or those with overlap,
there is an adjustment system to cen-
tre the machine. Optional bits are low
cost and easily interchangeable, as
they use the same tool-holding shaft.
The machine is also able to work
horizontally. Especially useful
if deciding to make a series of
mortises, with the doors unhung.
Wooden box for carriage.
Ideal for making lock mortises.
It also permits to mortise
grooved doors or those with
overlap, thanks to the possi-
bility of adjusting the centre
of the machine over the
section of the door where
the mortise is required.
Standard equipment
Equipped from factory with
carbide lock mortiser bit Ø 16 mm,
locking bar to make mortises on
several doors at the same height,
rubber protectors for delicate
jobs, service keys, dust collector
connection and UT16I drilling
accessory.
Specifications
Input power 1,100 W
Max. bit Ø 30 mm
No-load speed 23,000/min
Max. mortising depth 0-125 mm
Max. mortising length 177 mm+bit Ø
Max. clamp vise opening 190 mm
The FC116U incorporates a locking bar, which is fixed to
the machine at the height from the ground established
for the first mortised door, allowing the mortising of the
rest of the doors at the same height without retaking
measurements.
Mount any
lock with the FC116U
| Lock mortiser
