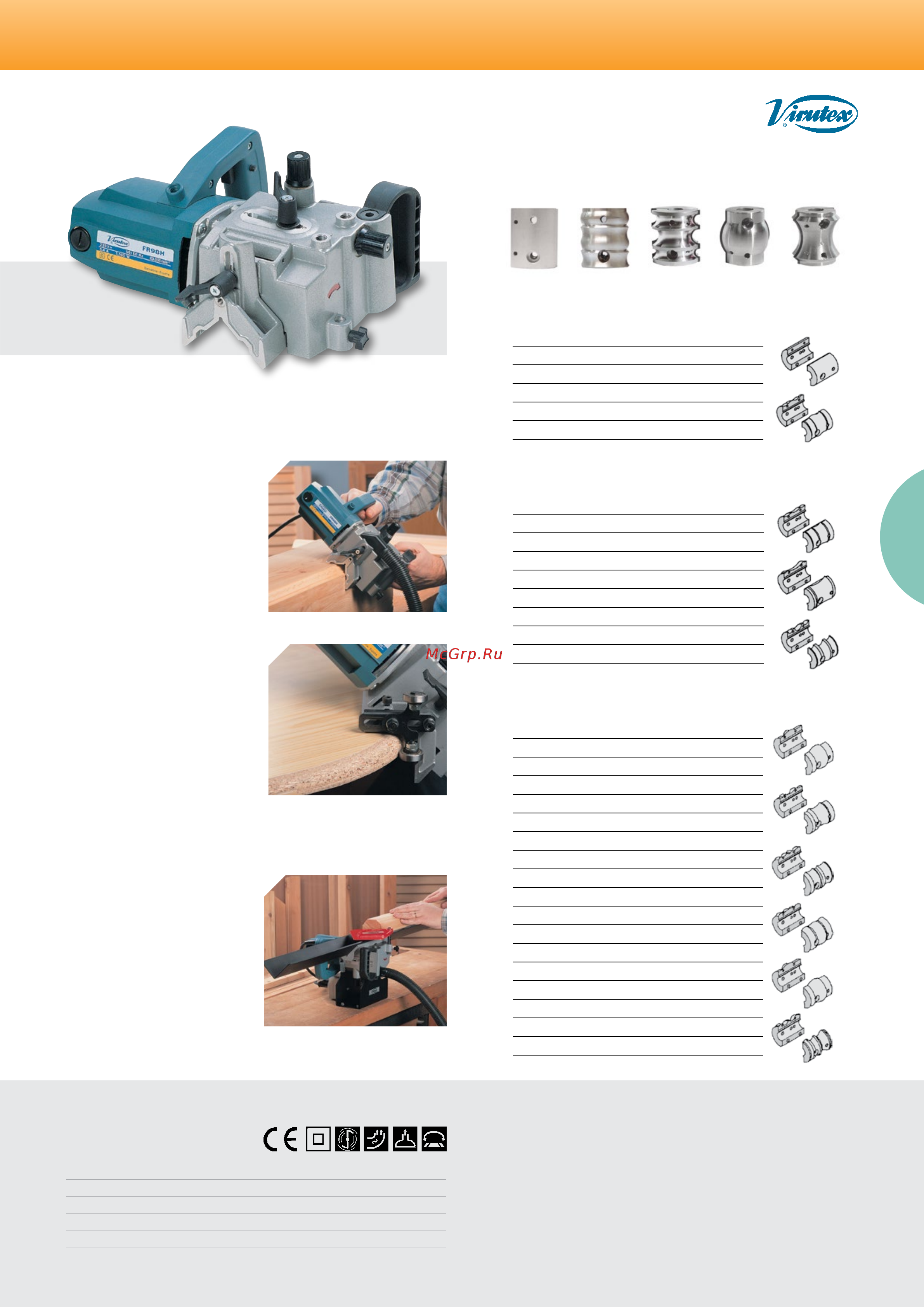

9
FR98H
Designed for shaping the edges of
longitudinal beams and crossbeams
and modeling coffered ceilings. Fac-
tory fitted with two different sets
of blades, with their correspondant
cutter-holders, for moulding and
bevel edging. Using the optional
blades, with different radius and
profiles it is possible to obtain a
great variety of different finishings.
The width of the straight or moulded
profile obtained can be set between
0 and 40 mm. The guide on which
the piece to be shaped rests can be
moved with respect to the blades,
which means that different profiles
can be made on an edge, according
to the zone of the blade on which
work is being done. There are two
handles, one parallel to the main
grip and at the same level, allowing
a comfortable work on longitudinal
beams and vertical parts, and a top
knob with two optional positions for
work on horizontal surfaces, thus
in both cases allowing a perfectly
comfortable and secure two-handed
grip on the machine. Machine equip-
ped with a smooth electronic star-
ting system and safety connection
cut-off switch to avoid undersired
start-up. It is also equipped with a
dust collection nozzle.
Specifications
Input power 1,300 W
Maximum cutting width 40/20 mm
No-load speed 23,000/min
Max. blades pitch diameter 49 mm
Weight 4.9 kg
Optional accessories
9800150 Radius copier. Allows straight chamfered
edges to be made on pieces with exterior circular
curves
6446073 Standard dust collector connection 3.5 m
1746245 Standard dust collector attachment 5 m
Safe and comfortable handling.
Radius copier (optional). Edge roun-
ding or cutting on radius (R=5, 10
or 15) is also possible using radius
blades 9841005.
Blades and cutter-holders (included with standard equipment)
Ref. Descripon
9841004 Set of two carbide straight blades
9845239 Cuer-holder for straight blades
9841006 Set of two carbide moulding blades
9845273 Cuer-holder for moulding blades
Ref. Descripon
9841005
Set of two carbide blades for 1/4 R=5, 10 & 15
9845270 Cuer-holder 1/4 R=5, 10 & 15
9841010
Set of two carbide blades for
1/4 R=25
9845271 Cuer-holder 1/4 R=25
9841011
Set of two carbide blades for
1/2 R=4,5 & 7
9845272 Cuer-holder 1/2 R=4,5 & 7
Blades and cutter-holders (optionals)
Ref. Descripon
9841012
Set of two carbide blades
R=25
9845332 Cuer-holder R=25
9841013
Set of two carbide blades
R=20/90°
9845333 Cuer-holder R=20/90°
9841014
Set of two carbide blades
R=10 and 10
9845334 Cuer-holder R=10 and 10
9841015
Set of two carbide blades R=5, 20 and 5 180°
9845335 Cuer-holders R=5, 20 and 5 180°
9841016
Set of two carbide blades
R= -20
9845336 Cuer-holder R= -20
9841017
Set of two carbide blades
R= -7,7,7 y -7
9845337 Cuer-holder R= -7,7,7 and -7
Base with guide extension Ref.
9800050 (Optional).
Planers
| Shape planer
Types of profiles
Blades and cutter-holders (optionals)
