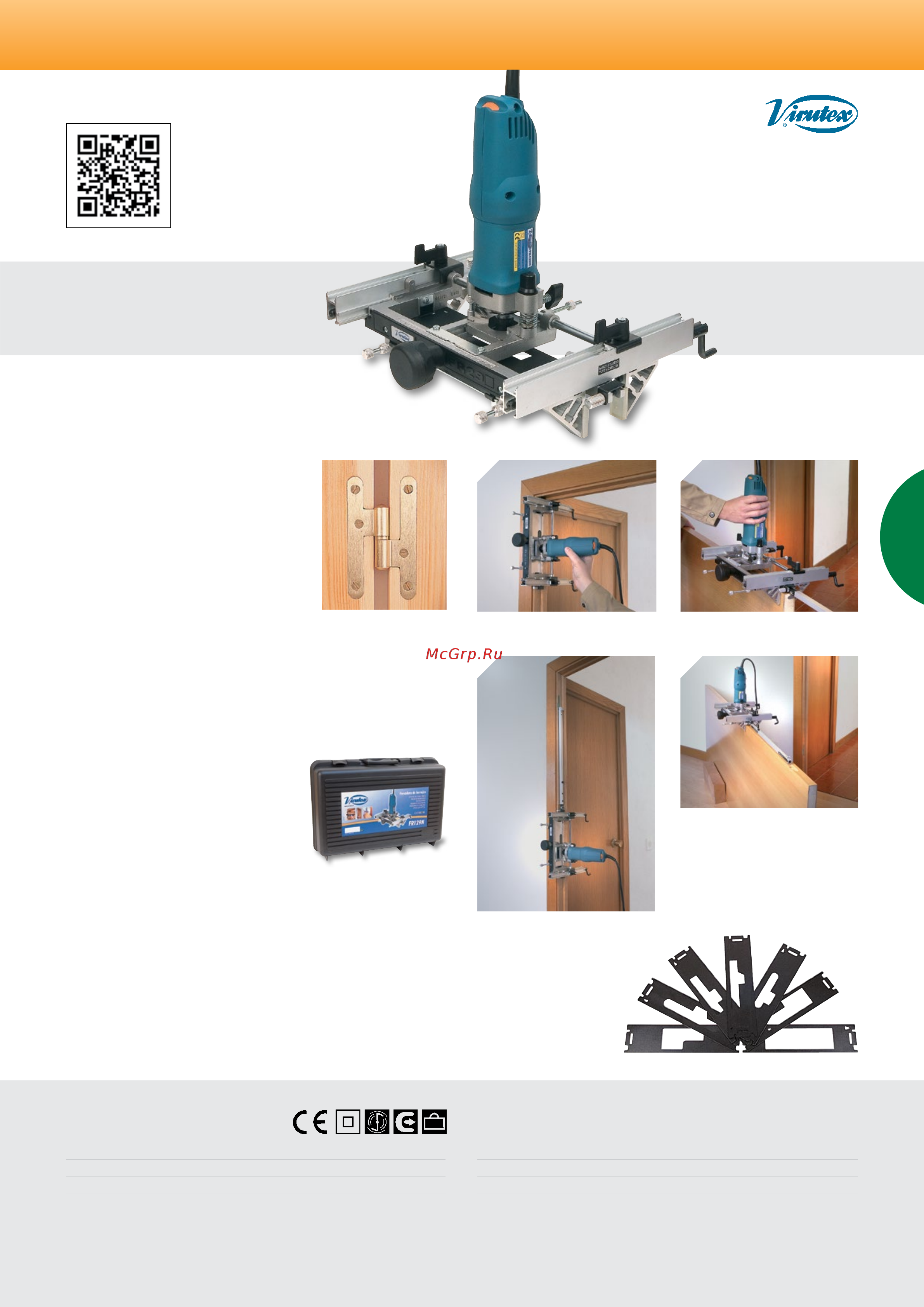

57
FR129N
Specifications
Input power 750 W
No-load speed 30,000/min
Chuck collet 8 mm
Max. bit diameter 32 mm
Max. trimming dim. (bit Ø 16 mm) 161x70 mm
Max. trimming depth 11 mm
Special router for fitting hinges and all kinds
of hardware for frames and doors. Easy
fitting without taking sizes and without
leaving marks. Equipped with carbide bit
and guide ring for 9.5 cm hinges. Two
distributing rods for fitting 3 or 4 hinges
and carrying case included.
Guide rings
2950104 Ø ext. 10 mm (for 6 mm bits)
2950105 Ø ext. 12 mm (for 8 mm bits)
2950106 Ø ext. 14 mm (for 10 mm bits)
2950107 Ø ext. 16 mm (for 12 mm bits)
2950081 Ø ext. 18 mm (for 14 mm bits)
2950108 Ø ext. 20 mm (for 16 mm bits)
Making the upper recess on the
frame.
To make other recesses both on
frames and doors it is not necessary
to readjust the machine.
Standard equipment
Machine equipped with template,
carbide bit (1140059) and guide ring
ref. 2950105, 2 recess distributor rods
for 3 or 4 hinges, service keys, carrying
case.
Making the firt recess on the door.
Optional accessories
Templates for fitting
different types of hinges
2935142 Special eyebolt
templates
| Router for fitting hinges
Making the second recess on the
frame.
Perfect finishing
Installation and restoration of doors and windows
Max. clamp opening 200 mm
Min. clamp opening 33 mm
Weight 4,3 kg
Bits
see pag. 45
