EN - 9
4. Remove the gear cover from top of
chute pedestal.
5. Release the lock teeth on the gear
assembly with your finger and rotate the
discharge chute so it points straight
ahead.
NOTE: Make sure alignment markers are
lined up when discharge chute is pointing
straight ahead.
6. Remove rubber grommet from control
panel.
7. Make sure the chute control cable is
routed between the lower handlebar and
the bottom of the control panel, insert
control assembly into slot in control
panel from below and install assembly
into nylon bushing in control panel.
8. Reinstall rubber grommet over control
assembly knob and into control panel.
NOTE: To ensure the discharge chute follows
its full range of travel, make sure the control
lever is centered in the slot and pointing
straight up before installing the chute rod.
9. Insert chute rod end without ears into
control lever and slide into control panel
until opposite end of rod clears the gear
assembly.
10. Align end of chute rod with hex hole in
gear assembly and insert until ears hit
gear.
11. Insert hairpin into hole in chute rod near
gear assembly.
12. Hook the chute control cable onto the
chute rod.
IMPORTANT: The chute control cable hook
will prevent the cable from contacting the
engine or muffler guard. Make sure this cable
stays connected while unit is in operation.
13. Check to make sure the chute control
cable ends are properly seated in control
assembly and control arm.
14. Adjust control cable as necessary to
remove cable slack. Be sure lock arm is
fully seated in gear teeth.
15. Replace gear cover on top of chute
pedestal.
16. Orient the chute and pedestal to its most
vertical position and tighten pedestal
hardware to 15 – 31 lbf-ft (20 – 42 N•m).
17. Make sure the discharge chute rotates
left and right when you push the
discharge chute control lever left and
right.
NOTE: If chute does not stay in position,
adjust as directed in Discharge Chute Control
on page 25, or repair before operation.

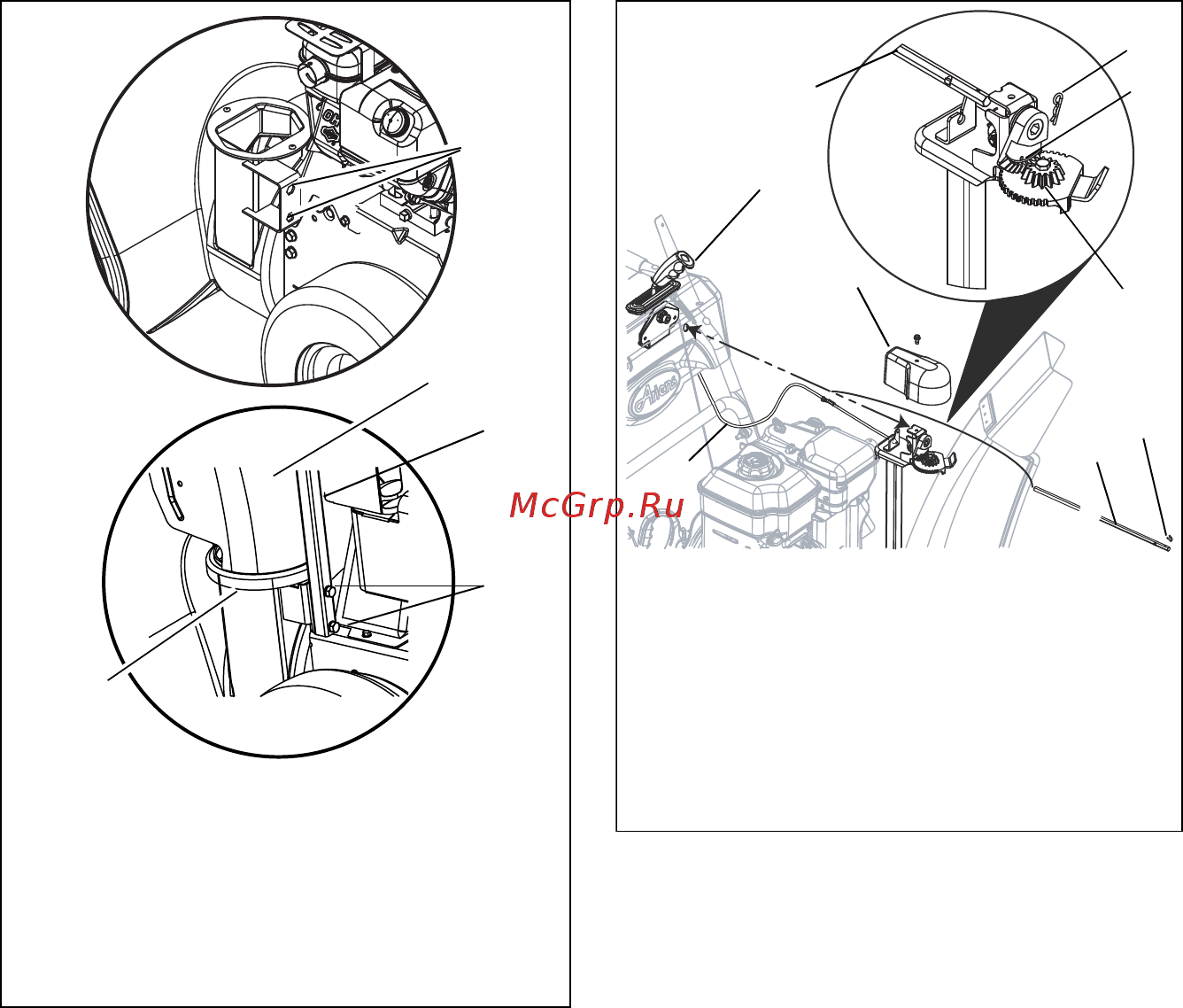

Figure 5
1. Mounting Holes
2. Discharge Chute
3. Discharge Chute Ring
4. Chute Pedestal
5. Mounting Hardware
1
5
4
2
OS7040
3
Figure 6
1. Chute Rod
2. Gear Cover
3. Control Assembly
4. Gear Assembly
5. Chute Control Cable
6. Alignment Marker
7. Hair Pin
3
2
1
7
4
5
6
7
1
