EN - 10
Remote Deflector Control
(Figure 7)
Connect the cable end to the cable anchor on
the discharge deflector before clipping the
cable to the cable bracket on the discharge
chute.
1. Route deflector remote cable along the
left side of the chute pedestal.
2. Insert the barrel on the cable end into
the bracket on left side of chute deflector
(Figure 7).
3. Hold seal out of the way while routing
the cable through the bracket on the left
side of the discharge chute, and then
push the cable fitting into the bracket.
4. Push the seal securely over the end of
the cable fitting to prevent water from
entering the cable.
Check deflector travel. Adjust nut on cable
end under handlebar to obtain full travel, if
necessary (see Remote Deflector Control on
page 24).
Check Function of Dual Handle
Interlock
Without the engine running, press down
(engage) both clutch levers. Release
attachment clutch lever. Attachment clutch
should remain engaged until traction clutch
lever is released, then both clutches must
disengage. If they do not, contact your Dealer
for repairs.
Check Tire Pressure
(926053, 054, 055)
Check tire pressure and adjust to the
pressure listed on tire sidewall.
Check Track Tension
(926056)
Check tracking of unit with the differential
locked, and tension of tracks (see Track
Tension Adjustment on page 29).
Check Auger Gearcase Oil
Check oil level in auger gearcase (see Check
Auger Gearcase on page 21).
Check Engine Crankcase Oil
IMPORTANT: The engine may be shipped
with oil in crankcase. Refer to Engine Manual
for detailed instructions.
Fill Fuel Tank
Fill fuel tank. DO NOT OVERFILL! See
FILLING FUEL TANK on page 17.
Setting Neutral Position
Set neutral position of speed selector. See
Speed Selector Adjustment on page 25.
Check Function of all Controls
Ensure unit runs and performs properly. Refer
to OPERATION on page 13.
Run-in Attachment Belt
1. Start unit in a well-ventilated area
according to Starting and Shut Off on
page 18.
2. Engage attachment clutch lever and run
attachment for about 15 minutes.
3. Stop unit, wait for all moving parts to
stop, and remove spark plug wire.
4. Adjust belt finger, if necessary. See
Check Belt Finger Clearance on
page 27.
5. Adjust clutch idler according to
Attachment Clutch/Brake Adjustment on
page 25.

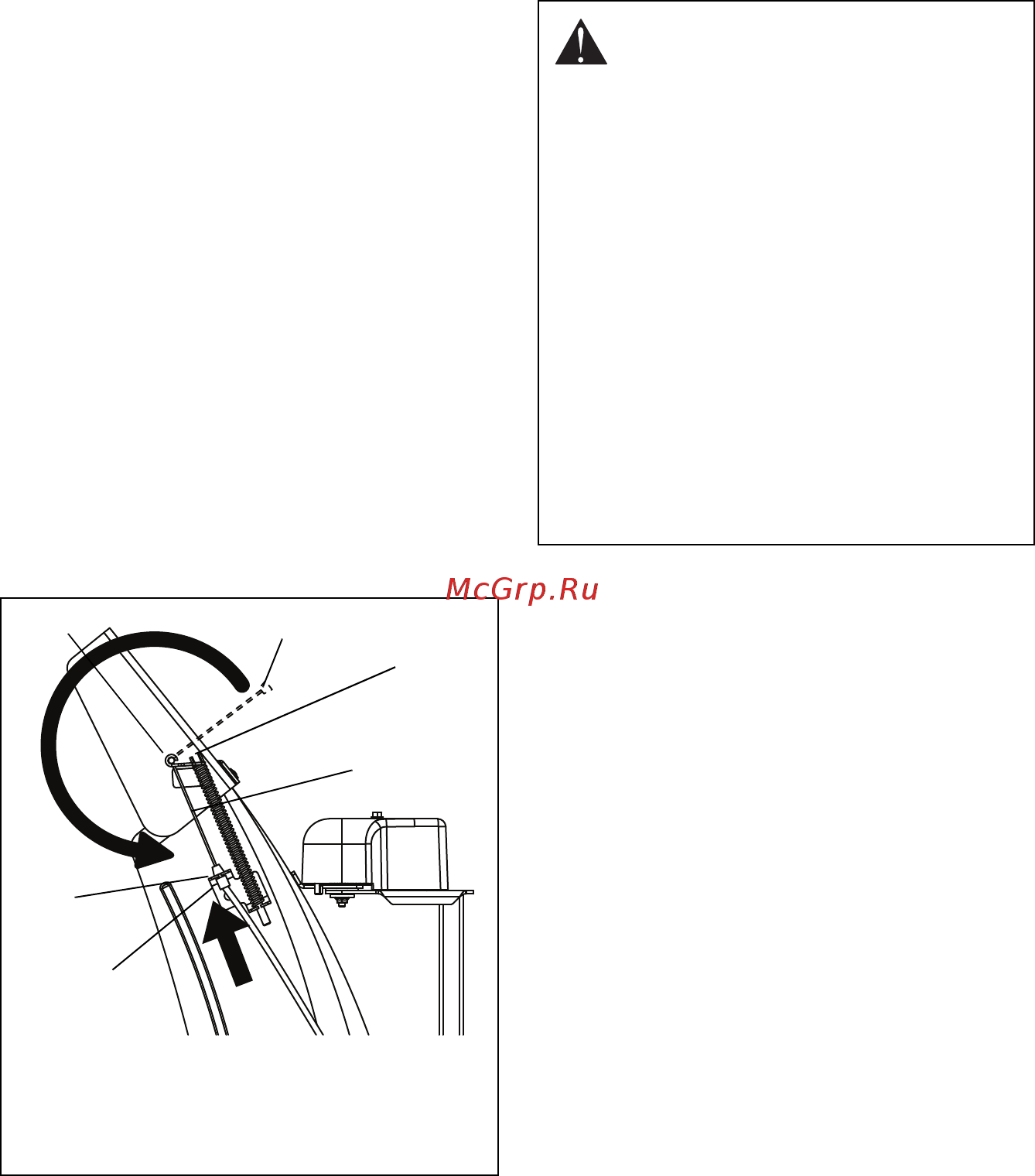

Figure 7
1. Cable Anchor
2. Cable End
3. Deflector Cable
4. Cable Fitting
5. Cable Bracket
1
2
3
5
4
3
OS7070
CAUTION: Avoid injury! Explosive
separation of tire and rim parts is
possible when they are serviced
incorrectly:
• Do not attempt to mount a tire
without the proper equipment and
experience to perform the job.
• Do not inflate the tires above the
recommended pressure.
• Do not weld or heat a wheel and
tire assembly. Heat can cause an
increase in air pressure resulting
in an explosion. Welding can
structurally weaken or deform the
wheel.
• Do not stand in front or over the
tire assembly when inflating. Use a
clip-on chuck and extension hose
long enough to allow you to stand
to one side.
