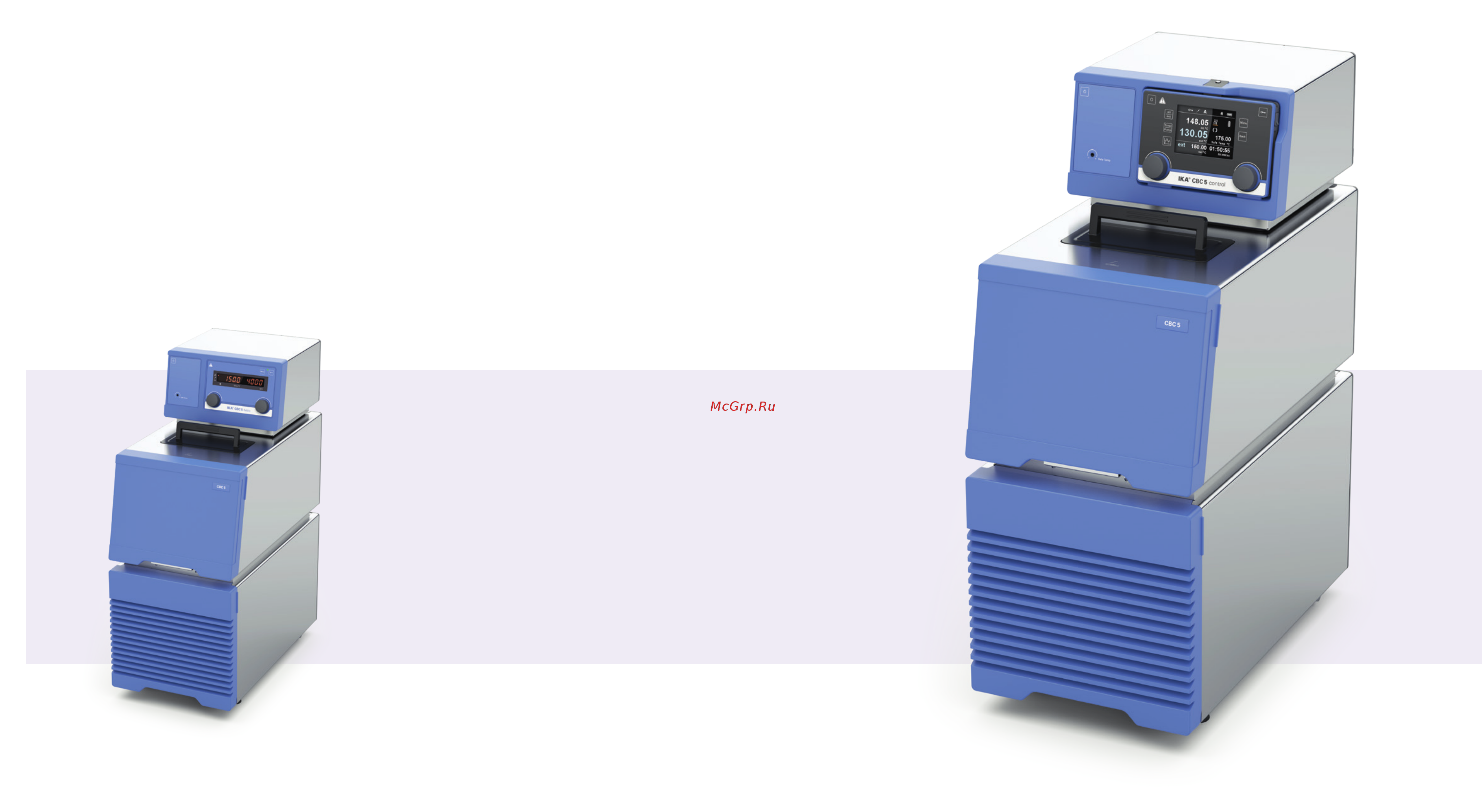

CBC 5 basic and control
/// Powerful refrigerated and heating circulators
The CBC 5 is a powerful refrigerated and heating circulator with 2,500 W heating
power and 350 W cooling power. It is best suited for external applications as it
uses the proven pressure and suction pump of the HBC and IC series. High-quality
insulation of the device allows for fast heat-up times and reduces heat input at low
temperatures.
The basic as well as the control models can temper the medium by using an external
temperature sensor. All parameters can be read out, monitored and completely do-
cumented by software (e.g., labworldsoft
®
or NAMUR commands), using the
RS 232 or USB interfaces.
SAFETY AND
CONVENIENCE FEATURES
› Safety and convenience features
› Adjustable safety circuit
› Filling level detection
› Visual and audible alarm
› RS 232 and USB interfaces
› Multi IO-port (control version only)
› Switching from external to internal
temperature control at the push of
a button (control model)
› Excellent insulation
› Safety drain valve
CBC 5 control
Refrigerated and
heating circulator
30
31
