3D SERIES

centrifugal pumps close coupled and standardized en 733

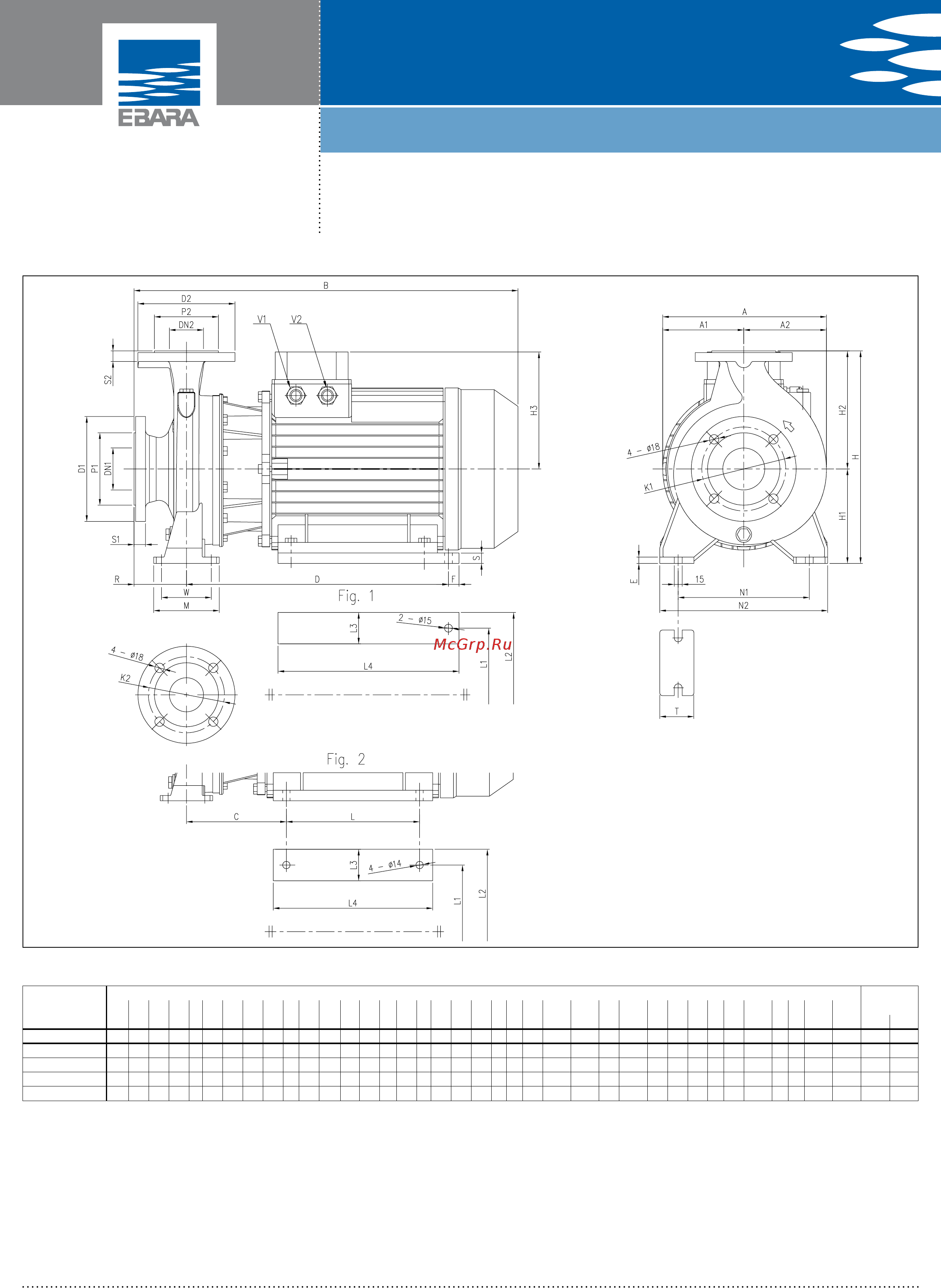

DIMENSIONS 3D SERIES - from 15kW and above 2 Poles

DIMENSIONAL TABLE

Model Dimensions [mm]

Weight

[kg]

DN1 P1 K1 D1 S1 DN2 P2 K2 D2 S2 H H1 H2 H3 Fig. R W M N1 N2

E A A1 A2 B C L L1 L2 L3 L4 D F S V1 V2

Ø Ø Ø Ø Ø Ø Ø [*]

3D50-200/15

65 122 145 185 20 50 102 125 165 20 360 160 200 223 2 100 70 100 212 265

10 296 154,5 141,5 723 190,5 254 254 318 64 304 - - - PG21 PG21 121,0 124,1

3D65-160/15

80 138 160 200 22 65 122 145 185 20 360 160 200 223 2 100 95 125 212 280

12 296 154,5 141,5 732 199,5 254 254 318 64 304 - - - PG21 PG21 126,0 129,1

3D65-200/15

80 138 160 200 22 65 122 145 185 20 405 180 225 223 1 100 95 125 250 320

12 312 154,5 157,5 732 - - 254 314 60 345 499,5 20 20 PG21 PG21 126,0 129,1

3D65-200/18.5

80 138 160 200 22 65 122 145 185 20 405 180 225 223 1 100 95 125 250 320

12 312 154,5 157,5 732 - - 254 314 60 345 499,5 20 20 PG21 PG21 140,0 146,3

3D65-200/22

80 138 160 200 22 65 122 145 185 20 405 180 225 223 1 100 95 125 250 320

12 312 154,5 157,5 732 - - 254 314 60 345 499,5 20 20 PG21 PG21 152,0 158,1

[*]=IE3motorsonly
