Ebara 3DS 50-200/15 [59/66] D series

Your Life, our Quality. Worldwide. 58 3D SERIES

The contents of this publication must not be regarded as binding. EBARA Pumps Europe S.p.A. reserves the right to effect any modiﬁcation it deems necessary, without prior notice.

3D SERIES

centrifugal pumps close coupled and standardized en 733

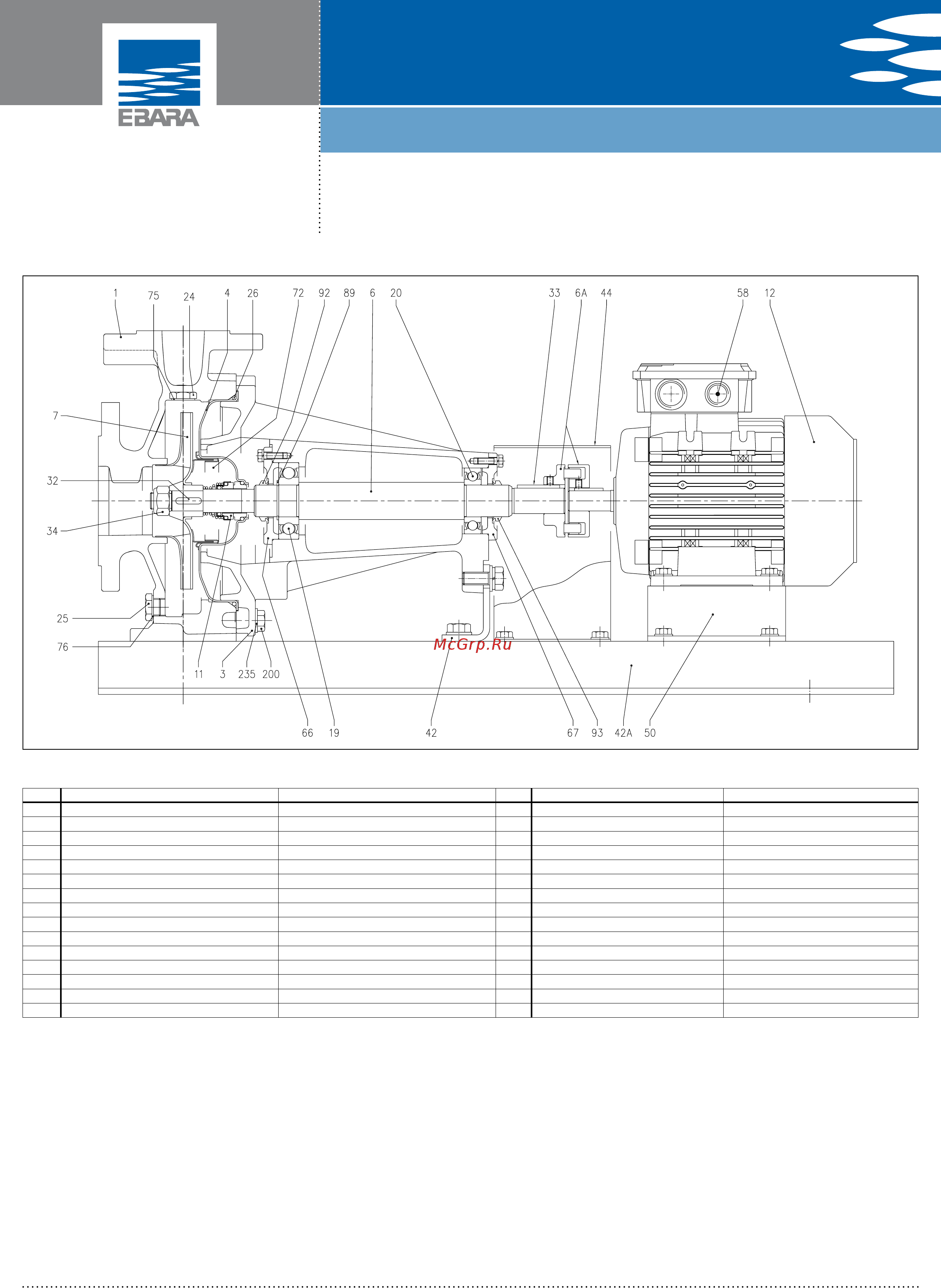

SECTIONAL VIEW 3DP4 SERIES 4 Poles

Ref. Name

Material

Ref.

Name

Material

001

Pump casing

CastironEN-GJL-250-EN1561

034 Impellernut €EN1.4301(AISI304)

003 Motorbracket CastironEN-GJL-250-EN1561 042 Pump support Fe37Galvanized

004 Sealhousingdisc EN1.4301(AISI304) 042A Base Fe37Galvanized

006 Rotorshaft EN1.4301(AISI304) 050 Motorsupport Aluminium/Galvanizedsteel

006A Flexiblejoint CastironEN-GJL-250-EN1561 058 Cablegland -

007 Impeller [1] 066 Supportcover CastironEN-GJL-250-EN1561

011 Mechanicalseal Ceramic/Carbon/NBR 067 Supportcover CastironEN-GJL-250-EN1561

012 Motorframe - 072 Casing ring [3] EN1.4301(AISI304)

019 Bearing - 075 Washer Aluminium

020 Bearing - 076 Washer Aluminium

024 Plug Brass 089 Seeger ring SteelalcarbonioTC80

025 Plug Brass 092 Seal ring -

026 O-Ring NBR[2] 093 Seal ring -

032 Key EN1.4401(AISI316) 200 Screw Galvanizedsteel8.8classISO898-1

033 Key C40 235 Washer Galvanizedsteel

MATERIALS TABLE

[1]=EN1.4301(AISI304)for3DP4SERIES32,40,50;EN1.4401(AISI316)for3DP4SERIES65

[2]=FPMforH,HS,HW,HSWversions;EPDMforEversion

[3]=Onlyfor3DP4SERIES32-200,40-200,50-160,50-200
