Ebara 3DS 50-200/15 [32/66] D series

Your Life, our Quality. Worldwide. 31 3D SERIES

The contents of this publication must not be regarded as binding. EBARA Pumps Europe S.p.A. reserves the right to effect any modification it deems necessary, without prior notice.

3D SERIES

centrifugal pumps close coupled and standardized en 733

MATERIALS TABLE

Ref. Name Material

001 Pump casing CastironEN-GJL-250-EN1561

003 Motorbracket CastironEN-GJL-250-EN1561

004 Sealhousingdisc EN1.4301(AISI304)

020 Bearing -

024 Plug Brass

025 Plug Brass

026 O-Ring NBR[2]

032 Key EN1.4401(AISI316)

033 Key C40

034 Impellernut EN1.4301(AISI304)

042 Pump support Fe37Galvanized

042A Base Fe37Galvanized

044 Support protection Fe37Galvanized

076 Washer Aluminium

092 Vring -

093 Vring -

200 Screw Galvanizedsteel8.8classISO898-1

235 Washer Galvanizedsteel

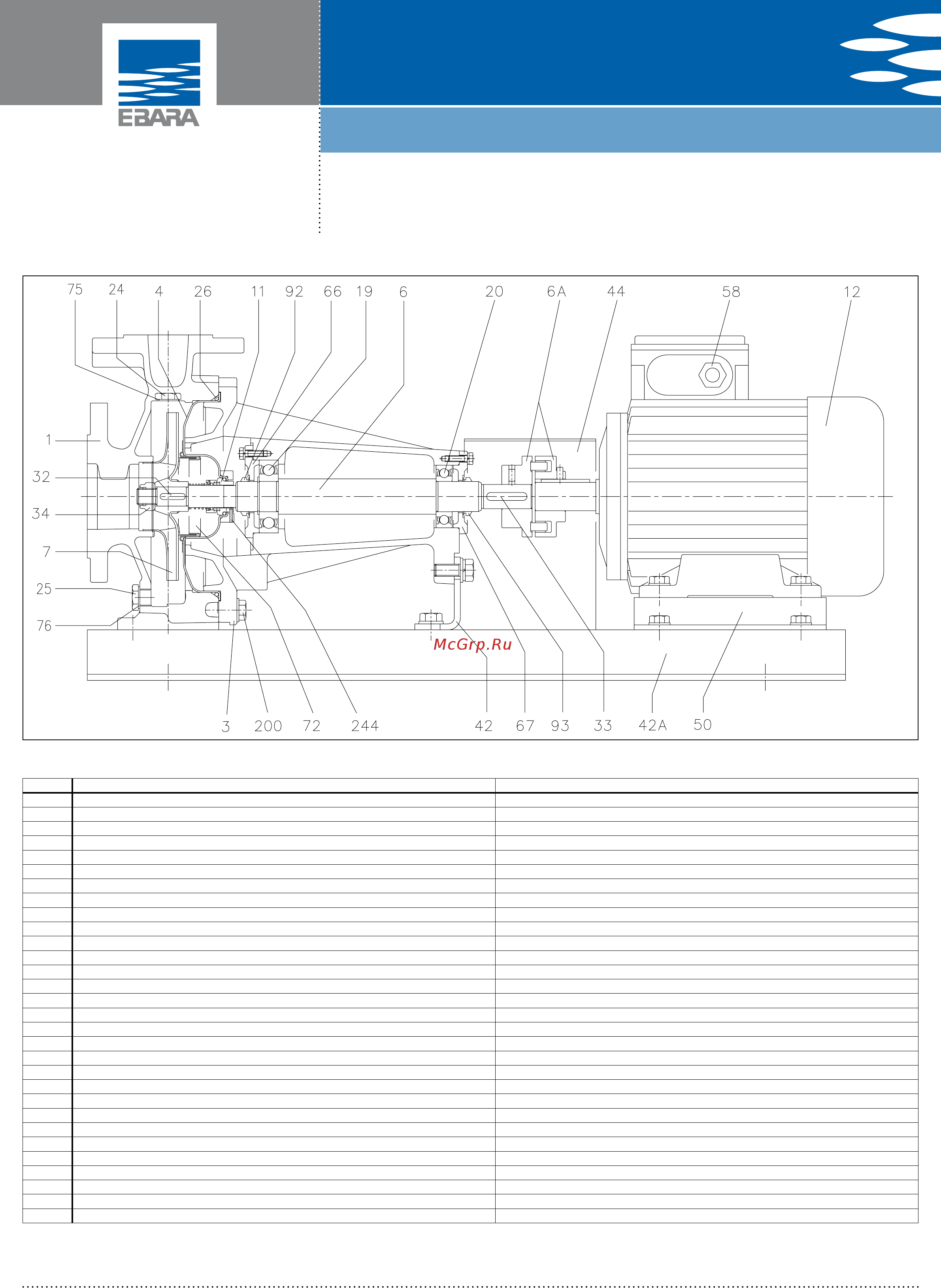

SECTIONAL VIEW 3DP SERIES 32, 40, 50, 65 2 Poles

[1]=EN1.4301(AISI304)for3DSERIES32,40,50;EN1.4401(AISI316)for3DSERIES65

[2]=FPMforH,HS,HW,HSWversions;EPDMforEversion

[3]=Onlyfor3DSERIES32-200,40-200,50-160,50-200
