Your Life, our Quality. Worldwide. 20 3D SERIES
The contents of this publication must not be regarded as binding. EBARA Pumps Europe S.p.A. reserves the right to effect any modification it deems necessary, without prior notice.
3D SERIES
centrifugal pumps close coupled and standardized en 733

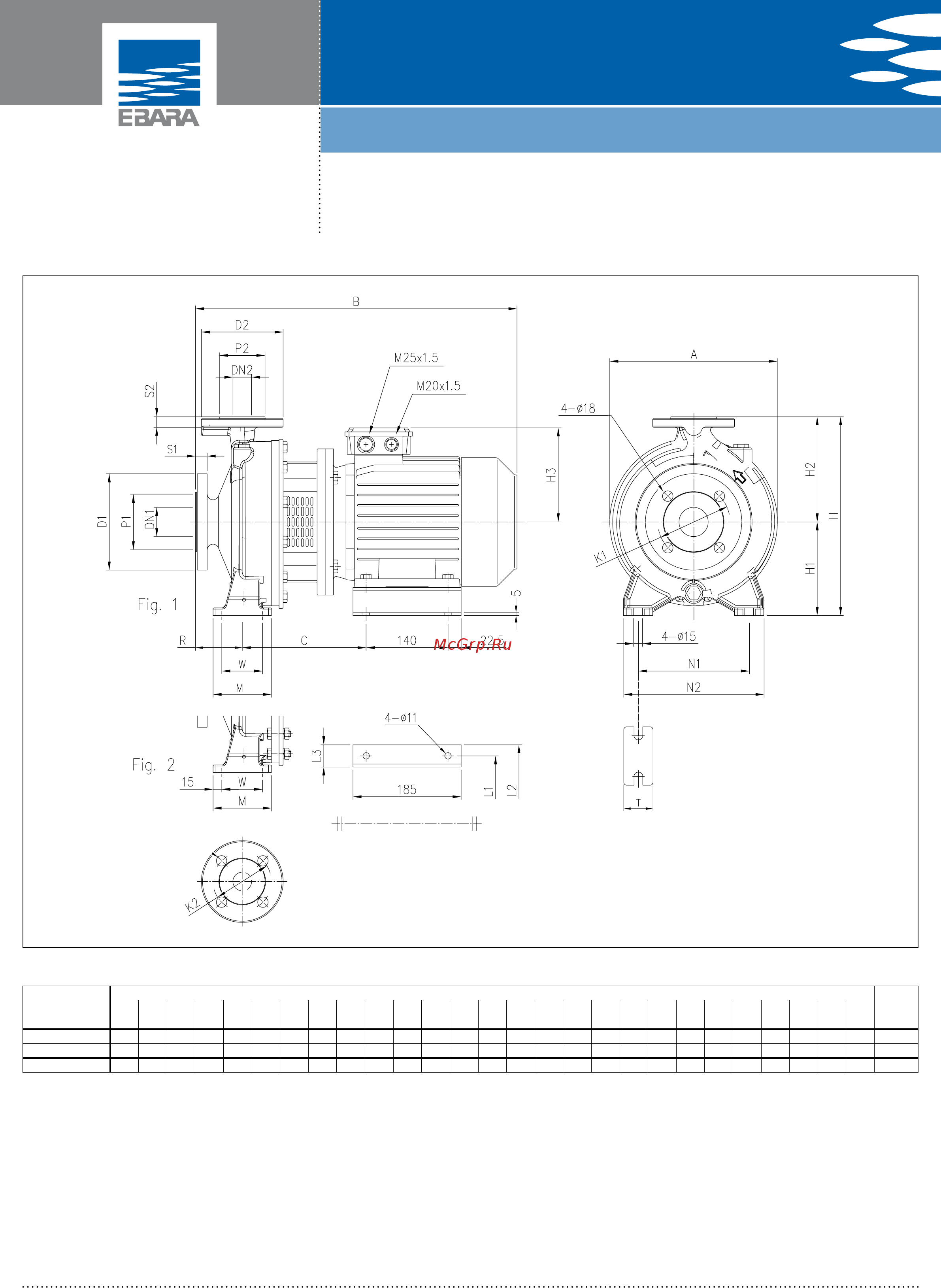

DIMENSIONS 3DS SERIES 32, 65 2 Poles
DIMENSIONAL TABLE
Model Dimensions [mm]
Weight
DN1 P1 K1 D1 S1 DN2 P2 K2 D2 S2 Fig. H H1 H2 H3 R W M N1 N2 T A B C L1 L2 L3 [kg]
Ø
Ø Ø Ø Ø Ø Ø Ø
3DS32-200/3.0 50 102 125 165 20 32 78 100 140 18 1 340 160 180 155 80 70 100 190 240 50 296 528 205 160 202 42 59,3
3DS32-200/4.0 50 102 125 165 20 32 78 100 140 18 1 340 160 180 171 80 70 100 190 240 50 296 550 212 190 228 38 60,8
3DS65-125/4.0 80 138 160 200 22 65 122 145 185 20 2 340 160 180 171 100 95 125 212 280 65 180 570 212 190 228 38 65,4
