3D SERIES

centrifugal pumps close coupled and standardized en 733

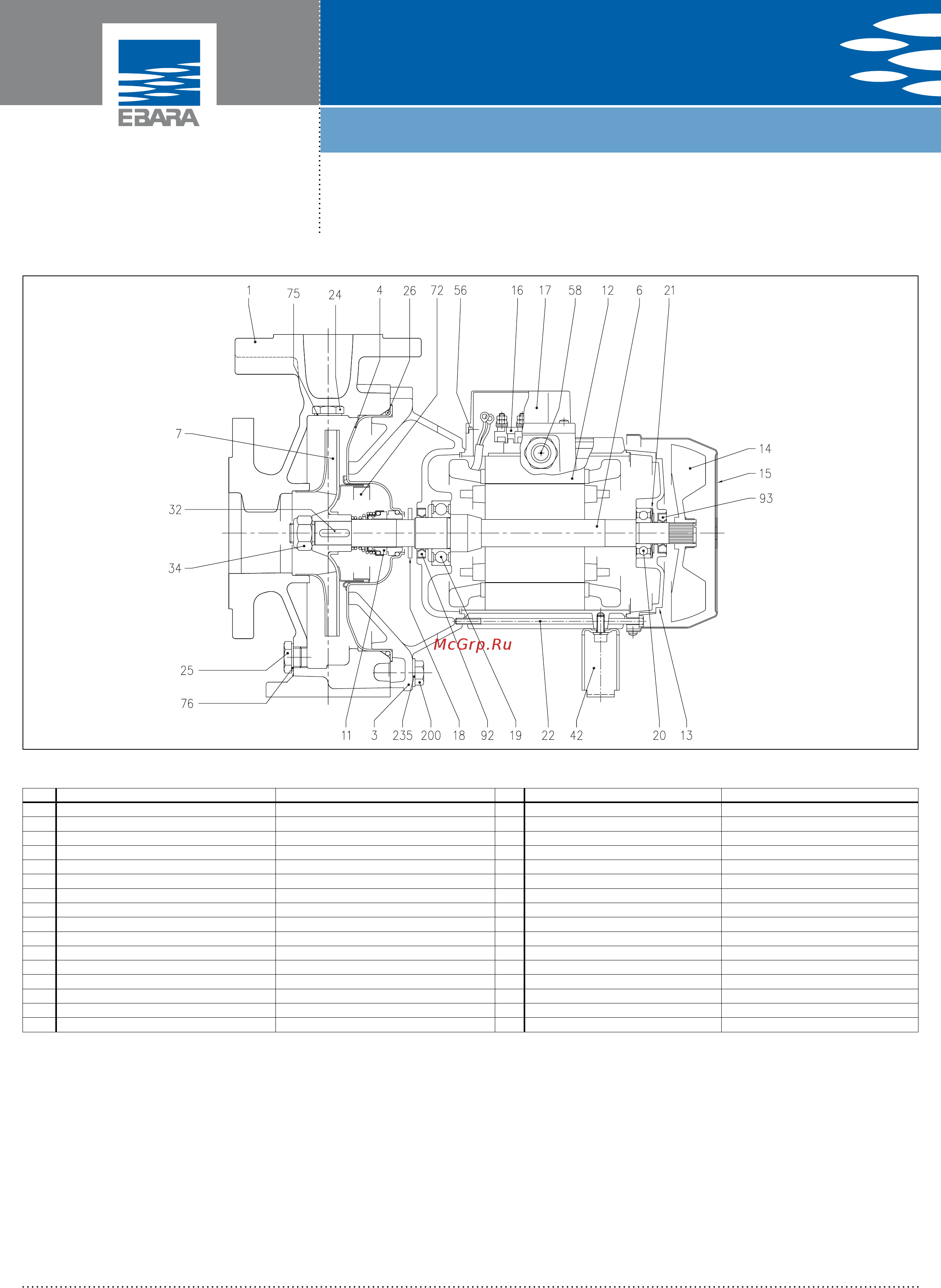

SECTIONAL VIEW 3D4 SERIES 4 Poles

Ref. Name Material Ref. Name Material

001 Pump casing CastironEN-GJL-250-EN1561[1] 022 Tie-rod Fe42Galvanized

003 Motorbracket [1] 024 Plug Brass

004 Sealhousingdisc EN1.4301(AISI304) 025 Plug Brass

006 Rotorshaft

(partincontactwiththeliquid) EN1.4301(AISI304) 026 O-Ring NBR[3]

007 Impeller [2] 032 Key EN1.4401(AISI316)

011 Mechanicalseal Ceramic/Carbon/NBR 034 Impellernut EN1.4301(AISI304)

012 Motorframe - 042 Motorsupport Aluminium/Galvanizedsteel

013 Motorcover Aluminium 056 Terminalboxgasket NBR

014 Fan PA 058 Cablegland -

015 Fancover FeP04Galvanized 072 Casingring[4] EN1.4301(AISI304)

016 Terminalbox - 075 Washer Aluminium

017 Terminalboxcover Aluminium(threephaseonly) 076 Washer Aluminium

018 Sprayprotectorwasher NBR 092 Seal ring -

019 Bearing(pumpside) - 093 Seal ring -

020 Bearing(motorside) - 200 Screw Galvanizedsteel8.8classISO898-1

021 Adjusting ring SteelC70 235 Washer Galvanizedsteel

[1]=AluminiumAL-EN-1706-AC-46000-Dfor3D4SERIES50-200/2.2,65-125/0.75and1.1,65-160/2.2,65-200/2.2and3kW;castironEN-GJL-200-EN1561fortherestoftherange

[2]=EN1.4301(AISI304)for3D4SERIES32,40,50;EN1.4401(AISI316)for3D4SERIES65

[3]=FPMforH,HS,HW,HSWversions;EPDMforEversion

[4]=Onlyfor3D4SERIES32-200,40-200,50-160,50-200

MATERIALS TABLE
