• Check thoroughly the area you are going to work on and remove all
items that can be sucked into the suction tube or blown away by the
air blower.
• Do not begin working without air tubes, safety devices and covers
installed in place.
• Hold the tool with both hands so the end of the pipe is not obstructed
by the ground.
• Attach the extension cord to prevent its accidental disconnection.
USE
• Work only in daylight or good artificial light.
• Avoid sucking in water.
• Always make sure that your legs stand firmly on a slope.
• Walk, never run.
• Pay particular attention when changing sucking or blowing direction.
• When moving the tool, turn it off.
• Do not use the tool, if the pipe is damaged or not attached.
• Make sure the vents are free from dirt or debris.
• Before starting the tool, make sure that you are firmly holding the tool
handle.
• Pull the plug out of mains socket:
– every time you walk away from the device;
– before inspecting, cleaning or repairing the device;
– after the device has been struck by a foreign object - check if it is
not broken;
– if it begins to vibrate excessively;
• The tool should be repaired by authorized personnel only.
• Use only original spare parts recommended by the manufacturer.
MAINTENANCE AND STORAGE
• Keep all components in good condition to make sure that the tool will
work safely.
• For safety reasons, replace worn or damaged parts.
• Protect the tool from moisture.
• Keep out of reach of children.

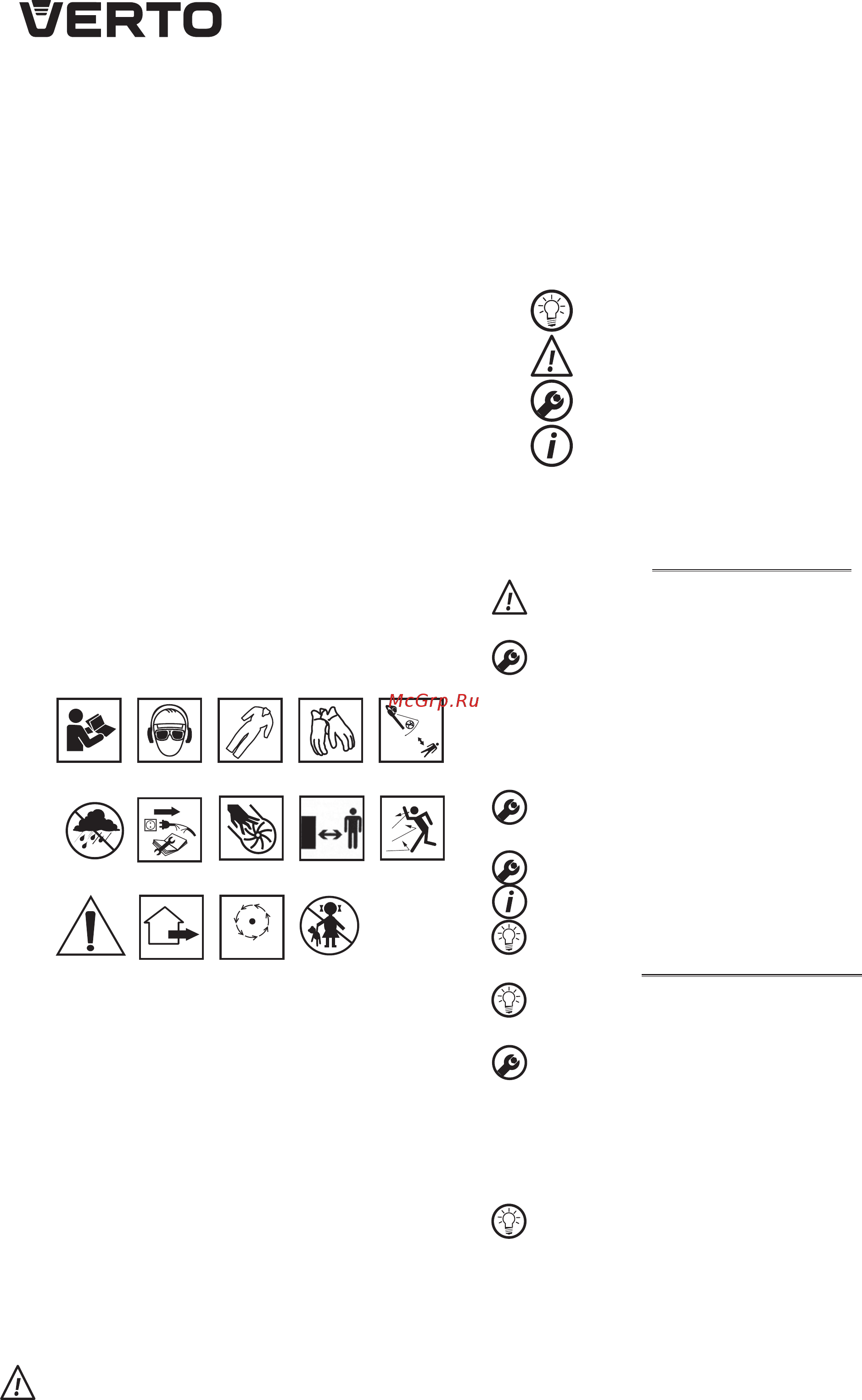

Explanation of pictograms used
360°
STOP
12345
67
8910
11 12 13 14
1. Read all instructions
2. Use safety glasses and ear protection
3. Use protective clothing
4. Use protective gloves
5. Watch out for people in the tool operating range
6. Protect from rain
7. Disconnect before repair (maintenance)
8. Risk of fingers cut-off by rotating rotor blades
9. Keep a distance
10. Watch out for debris
11. Warning
12. For use outdoors
13. Do not touch moving parts of the machine
14. Do not allow children to the tool
CONSTRUCTION AND USE
The electric blower is a hand device with Class II insulation. It is driven
by a single-phase AC commutator motor. The electric blower is a two-
function device designed for blowing and sucking in the around the
house and garden. It is perfect for cleaning and removing leaves, mown
grass from patios, paths and roads. This device is not designed for
industrial applications and indoor use.
The device cannot be used for other purposes than it is intended for.
DESCRIPTION OF GRAPHIC PAGES
The enumeration below refers to the parts of the device shown in the
graphic pages of this manual.
1. Blowing connector
2. Switch
3. Switch lock button
4. Suction connector
5. Nozzle
6. Collection bag
7. Carbon brush plug
* The actual product may differ from the drawing.
MEANING OF SYMBOLS
CAUTION
WARNING
ASSEMBLY/SETTINGS
INFORMATION
EQUIPMENT AND ACCESSORIES
1. Nozzle – 1 pcs.
2. Dust bag – 1 pcs.
OPERATION / SETTINGS
SWITCHING ON / OFF
The mains voltage must correspond to the value specied on the
device nameplate.
Switching on – press the switch button (2) and hold it down.
Switching o – release the switch button (2).
Switch lock (continuous operation)
Switching on:
• Press the button switch (2), and then press the switch lock button (3).
Switching o:
• Press and release the switch button (2).
BLOWING
• Attach the nozzle (5) to the blowing connector (1) and rotate it to lock
it in place (g. A).
SUCTION
• Attach the nozzle (5) to the suction connector (4).
• Attach the dust bag (6) to the blowing connector (1) (g. B).
After each use the dust bag must be emptied. Open the zip fastener of
the bag and empty its contents.
If the bag lling level is high, it will reduce the suction power.
CARE AND MAINTENANCE
Unplug the power cord from mains socket before commencing any
activities related to installation, adjustment, repair or maintenance.
REPLACEMENT OF CARBON BRUSHES
Used (shorter than 5mm), burnt or broken motor carbon brushes
should be immediately replaced. Both carbon brushes should always be
replaced at the same time.
• Turn off the carbon brush plugs (7) (g. C).
• Take out used carbon brushes and remove any carbon dust using
compressed air.
• Insert new carbon brushes. Carbon brushes should slide smoothly
into brush holders (g. D).
• Fasten the carbon brush plugs (7).
When the carbon brushes are removed, the device should be
switched on for approximately 1-2 minutes, so that carbon brushes
t the motor commutator. Carbon brushes should be replaced only
by a qualied person using original spare parts.
CLEANING
• It is recommended that you clean the device after each use.
• If possible, the motor housing should be always kept free from dust
and debris.
• Wipe the device with a clean cloth or blow it with low pressure
compressed air.
• Do not use water or chemical cleaning agents for cleaning.
