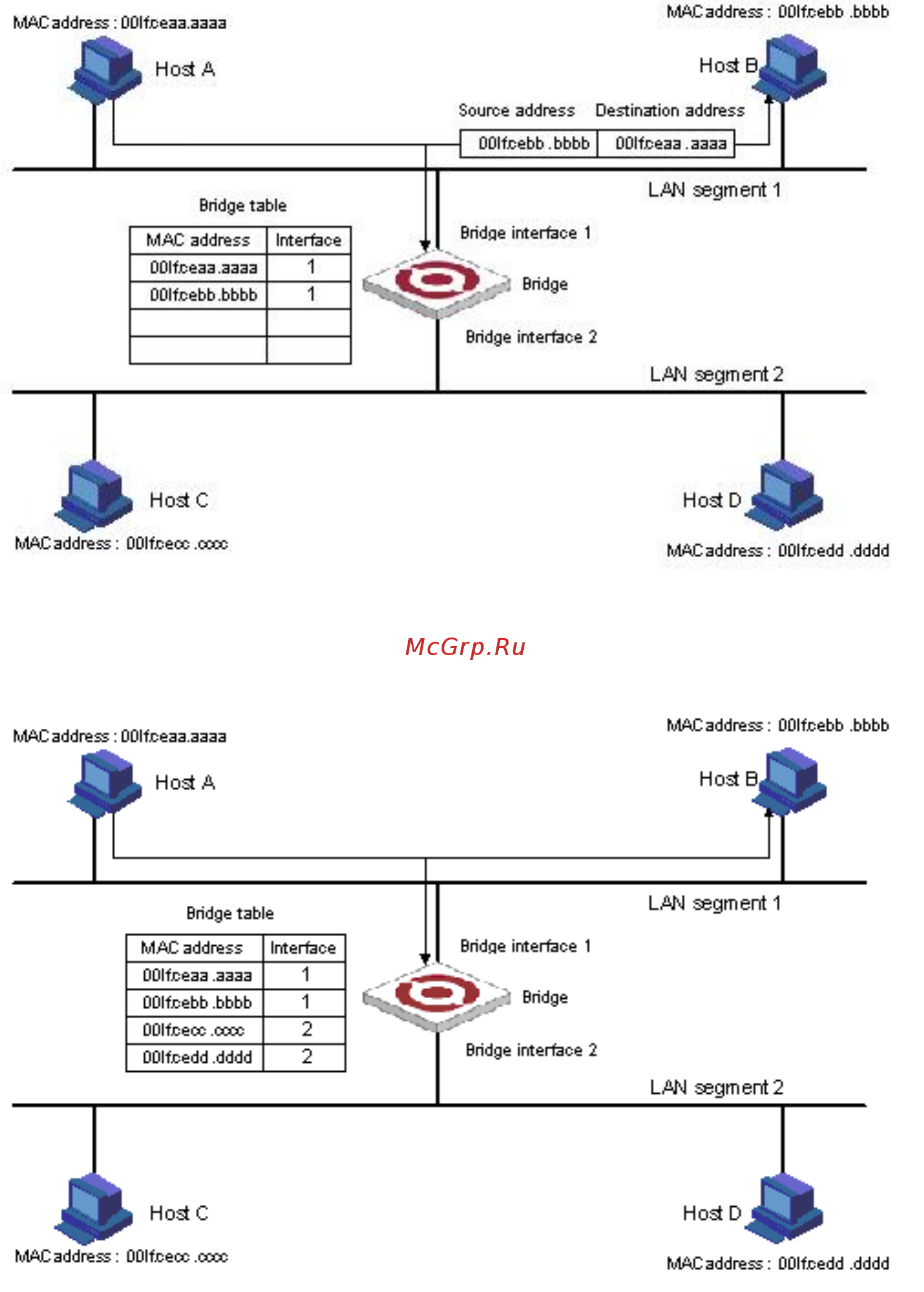

Figure 3 The bridge determines that Host B is also attached to interface 1
Finally, the bridge obtains all the MAC-interface mappings (assume that all hosts are in use), as shown in
Figure 4.
Figure 4 The final bridge table
b) Forwarding and filtering
The bridge makes data forwarding or filtering decisions based on the following scenarios:
When Host A sends an Ethernet frame to Host C, the bridge searches its bridge table and finds out that Host C
is attached to bridge interface 2, and forwards the Ethernet frame out of bridge interface 2, as shown in II. Figure 5.
