3-48

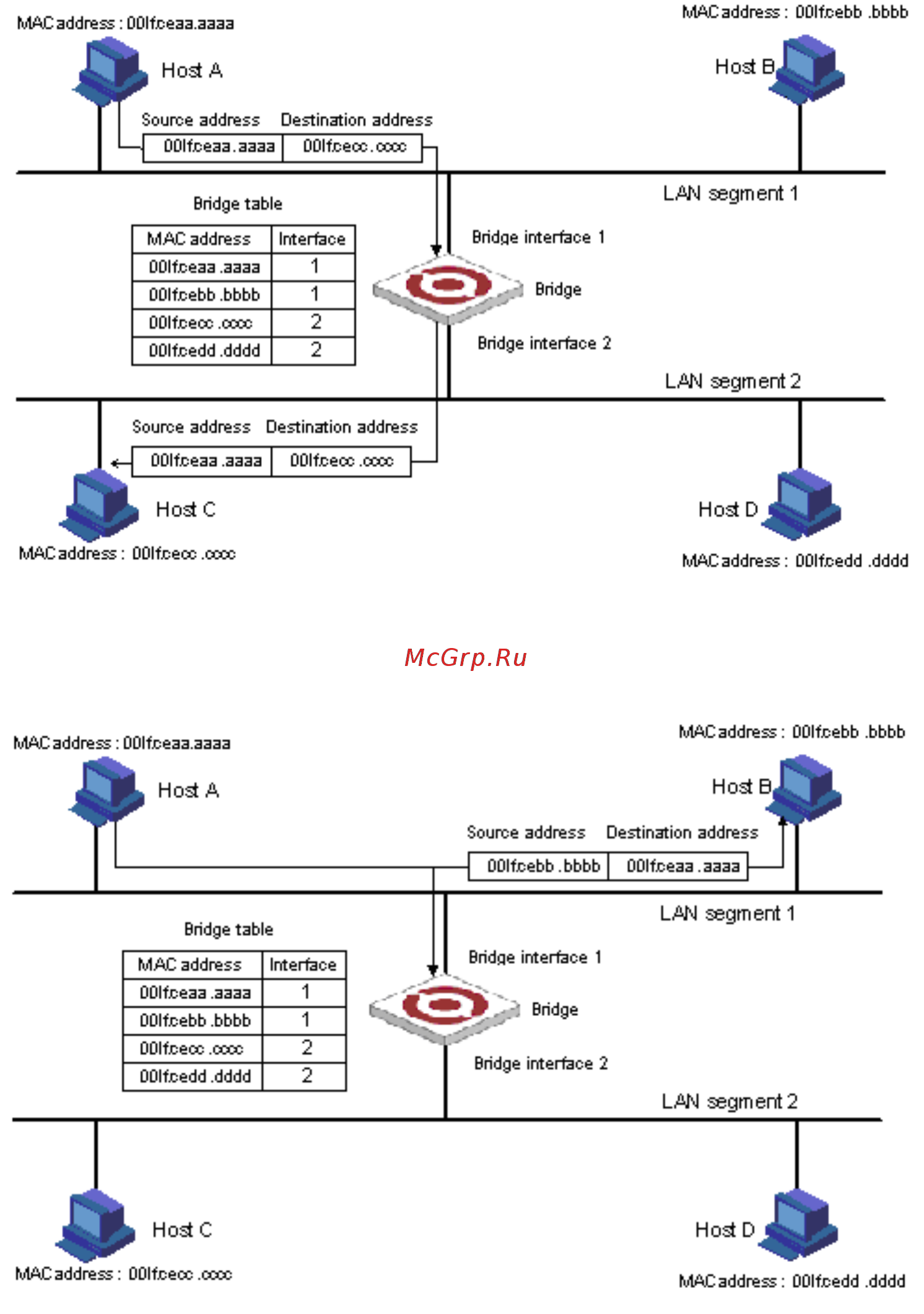

Figure 5 Forwarding
When Host A sends an Ethernet frame to Host B, as Host B is on the same LAN segment with Host A, the
bridge filters the Ethernet frame instead of forwarding it, as shown in II. Figure 6.
Figure 6 Filtering
When Host A sends an Ethernet frame to Host C, if the bridge does not find a MAC-to-interface mapping about Host
C in its bridge table, the bridge forwards the Ethernet frame to all interfaces except the interface on which the frame
was received, as shown in Figure 7.
