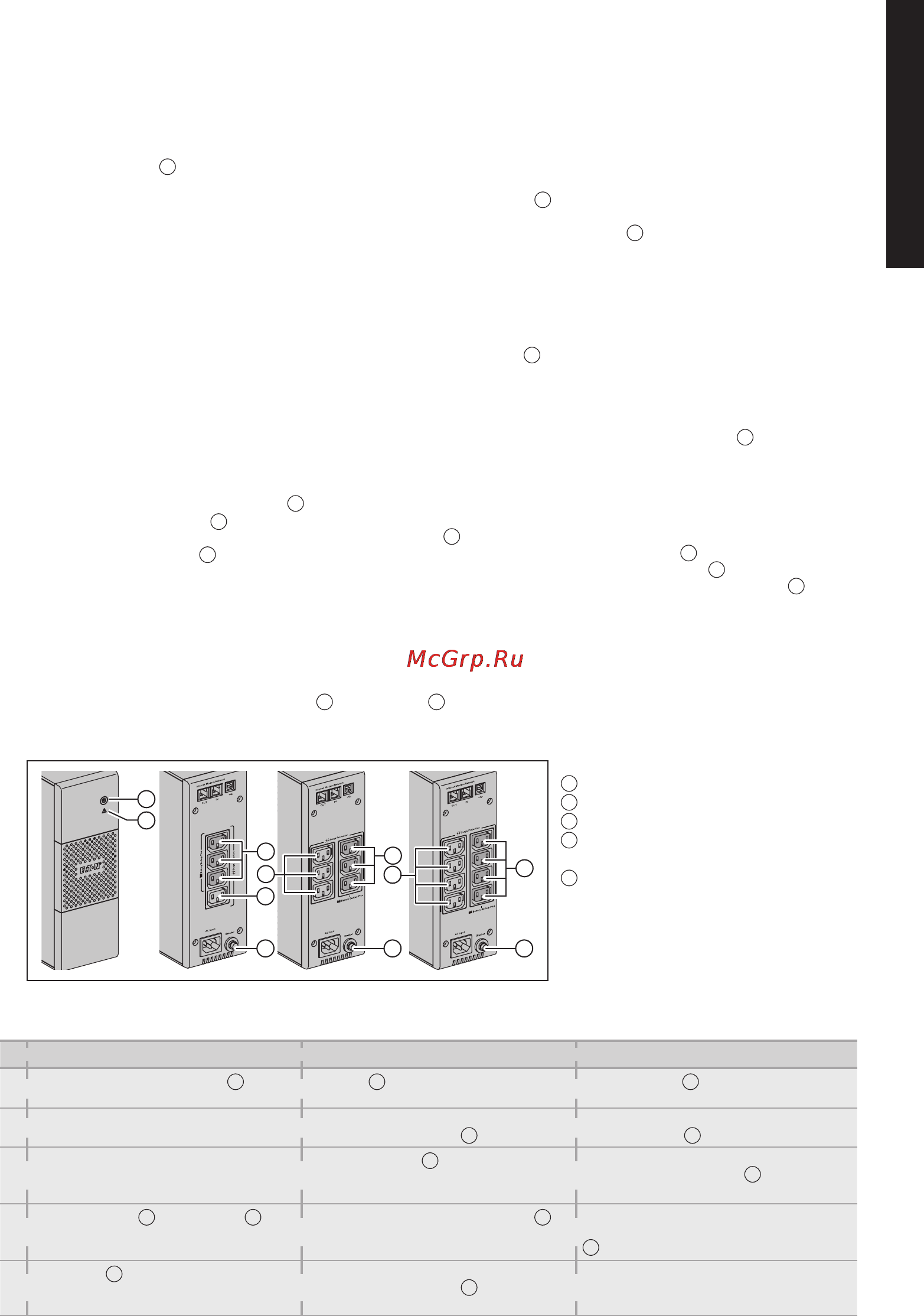

Eaton Powerware 5S 700ВА [5/24] English

614-06822-00

1. Operating conditions

• This product is an Uninterruptible Power Supply (UPS) for computers and their peripherals, television sets, stereo

systems and video recorders... It must not be used to supply other electrical equipment (lighting, heating, household

appliances, etc.).

2. UPS connections

• Connect the UPS

to the AC-power system via a wall outlet with an earth connector, using the input cord of your

computer(seegureA).

• Plug critical equipment (computer, monitor, modem, etc.) into the outlets

providing battery backup power and surge

protection(seegureC),takingcarenottoexceedtheratedcurrentindicatedinamperes.

• Other devices (printer, scanner, fax, etc.) can be connect to the surge protection outlets

(seegureC).Thesurge

protection outlets are not backed up by battery power in the event of a power outage.

• Optional Internet modem / Network connection:

A modem or Ethernet data line can be protected against surges by connecting it via the UPS. Connect the existing device

cable between the wall outlet and the UPS, and use a similar cable between the UPS and the device, as indicated in

gureB(cablenotsupplied).

• Optional USB connection:

The UPS device can be connected to the computer using the USB cable

supplied(seegureB).

Eaton UPS Companion software is downloadable from powerquality.eaton.com.

3. Operation

• Battery charge: The UPS charges the battery as soon as it is connected to the AC outlet, whether button

is pressed or

not.Whenusedforthersttime,thebatterywillonlyprovideitsmaximumperformanceafterithasbeenchargedfor8

hours. It is recommended that the UPS be permanently connected to the AC power supply to ensure the best possible

performance.

• Switching-on the UPS: press button

for about 1 second.

• Surge protection outlets

without battery backup: Equipment connected to these outlets is supplied as soon as the

input AC cord is plugged in. They are not affected by button

• Battery backup outlets

: Equipment connected to these outlets is supplied as soon as button

turns green

(seegureD).TheseoutletscanbeturnedoneveniftheUPS is not connected to AC power (button

ashes).

• AC-power disturbance: If AC power is disturbed or fails, the UPS continues to operate on battery power. Button

ashes

green. In normal mode, the audible alarm beeps every ten seconds, then every three seconds when the end of battery

backup time is near. In silent mode, the audible alarm simply beeps once when the UPS transfers to battery power.

• If the power outage lasts longer than the battery backup time, the UPS shuts down and automatically restarts when

power is restored. Following a complete discharge, a few hours are required to recharge the battery back to full backup

time.

• Surge protection: All outlets include surge protection.

• Shutdown of the battery backup outlets

: Press button

for more than two seconds.

: Surge protection outlets.

: Battery backup outlets.

: LED ON indicate a UPS fault.

: ON/OFF button for the battery backup

outlets.

: Protection (circuit breaker).

Troubleshooting (For further information, visit the www.powerquality.eaton.com site or contact after-sales support.)

Problem Diagnostic Solution

• The battery backup outlets

are not

supplied with power.

• Button

is not lighted on. • Press button

and check that it turns

green.

2 • The connected devices are not

supplied when AC power fails.

• The devices are not connected to the

battery backup outlets

• Connect the devices to the battery

backup outlets

3 • AC power is available, but the UPS

operates on battery power.

• Circuit breaker

, located at the rear

of the UPS, has been tripped by an

overload on the UPS output.

• Disconnect excess equipment and

reset the circuit breaker

by pressing

the corresponding button.

• Green button

and red LED

are

on and audible alarm beeps every 2

seconds.

• The UPS battery backup outlets

are overloaded.

• Disconnect excess equipment

connected to the battery backup outlets

• Red LED

is on and the audible

alarm beeps continuously.

• A fault has occurred on the UPS. The

battery backup outlets

are no longer

supplied.

• Call after-sales support.

ENGLISH
