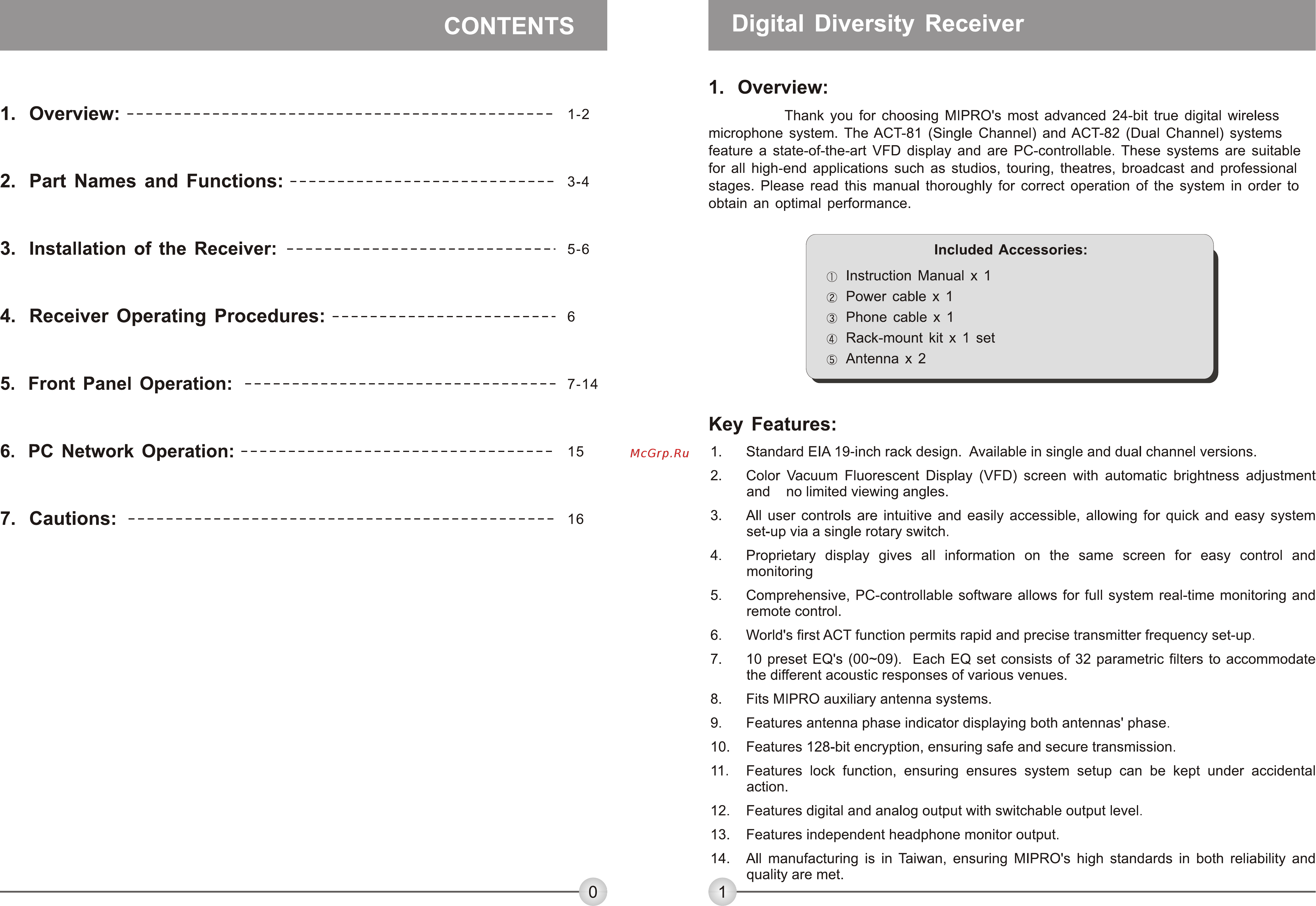

Digital Diversity Receiver CONTENTS 1 Overview 1 Overview 1 2 2 Part Names and Functions 3 4 3 Installation of the Receiver 5 6 Thank you for choosing MIPRO s most advanced 24 bit true digital wireless microphone system The ACT 81 Single Channel and ACT 82 Dual Channel systems feature a state of the art VFD display and are PC controllable These systems are suitable for all high end applications such as studios touring theatres broadcast and professional stages Please read this manual thoroughly for correct operation of the system in order to obtain an optimal performance Included Accessories Instruction Manual x 1 Power cable x 1 4 Receiver Operating Procedures 6 Phone cable x 1 Rack mount kit x 1 set Antenna x 2 5 Front Panel Operation 7 14 Key Features 6 PC Network Operation 15 1 Standard EIA 19 inch rack design Available in single and dual channel versions 2 Color Vacuum Fluorescent Display VFD screen with automatic brightness adjustment and no limited viewing angles 7 Cautions 3 All user controls are intuitive and easily accessible allowing for quick and easy system set up via a single rotary switch 16 4 Proprietary display gives all information on the same screen for easy control and monitoring 5 Comprehensive PC controllable software allows for full system real time monitoring and remote control 6 World s first ACT function permits rapid and precise transmitter frequency set up 7 10 preset EQ s 00 09 Each EQ set consists of 32 parametric filters to accommodate the different acoustic responses of various venues 8 Fits MIPRO auxiliary antenna systems 9 Features antenna phase indicator displaying both antennas phase 10 Features 128 bit encryption ensuring safe and secure transmission 11 Features lock function ensuring ensures system setup can be kept under accidental action 12 Features digital and analog output with switchable output level 13 Features independent headphone monitor output 14 All manufacturing is in Taiwan ensuring MIPRO s high standards in both reliability and quality are met 0 1
