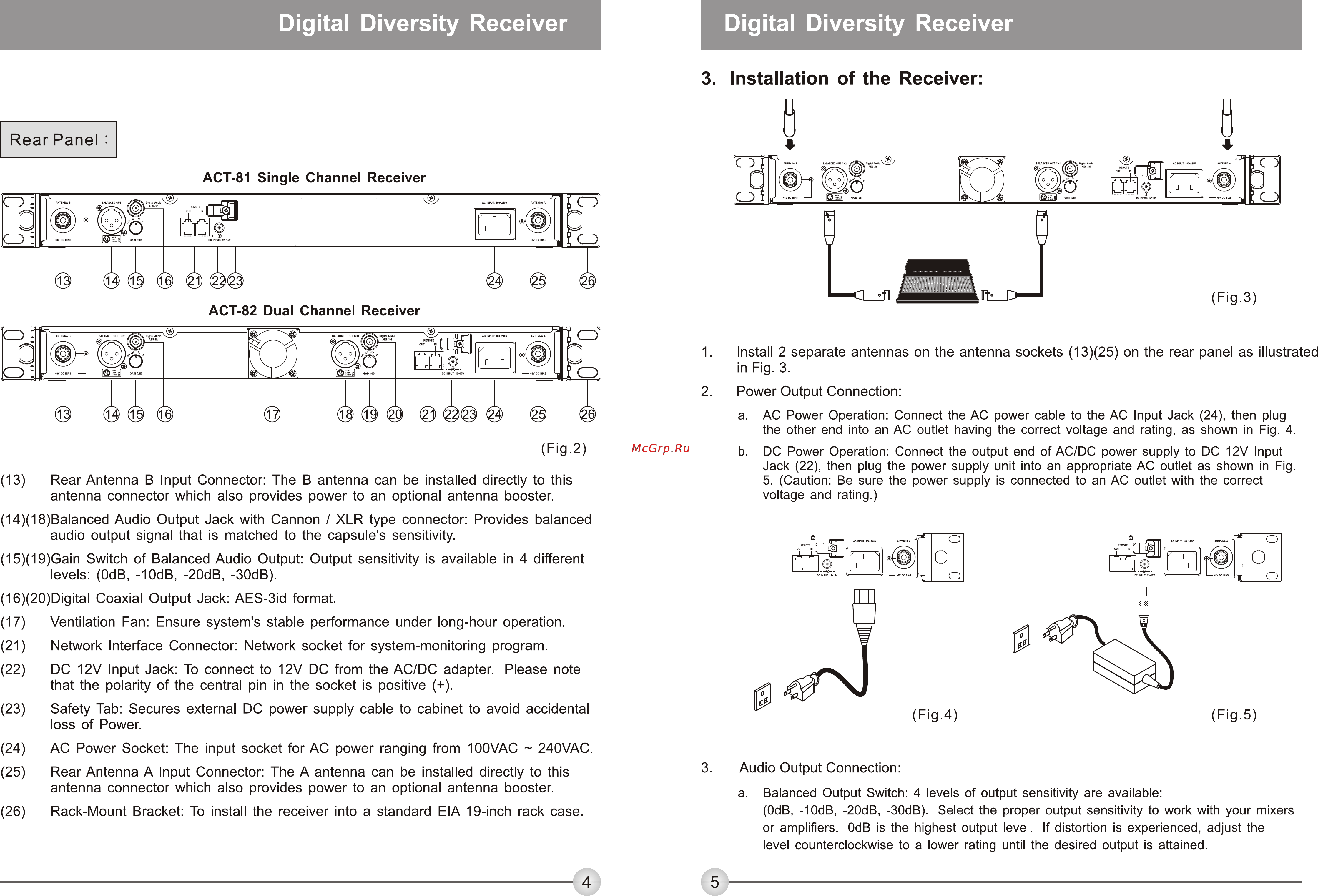

Digital Diversity Receiver Digital Diversity Receiver 3 Installation of the Receiver Rear Panel ACT 81 Single Channel Receiver ACT 82 Dual Channel Receiver 1 Install 2 separate antennas on the antenna sockets 13 25 on the rear panel as illustrated in Fig 3 2 Power Output Connection a AC Power Operation Connect the AC power cable to the AC Input Jack 24 then plug the other end into an AC outlet having the correct voltage and rating as shown in Fig 4 Fig 2 b DC Power Operation Connect the output end of AC DC power supply to DC 12V Input Jack 22 then plug the power supply unit into an appropriate AC outlet as shown in Fig 5 Caution Be sure the power supply is connected to an AC outlet with the correct voltage and rating 13 Rear Antenna B Input Connector The B antenna can be installed directly to this antenna connector which also provides power to an optional antenna booster 14 18 Balanced Audio Output Jack with Cannon XLR type connector Provides balanced audio output signal that is matched to the capsule s sensitivity 15 19 Gain Switch of Balanced Audio Output Output sensitivity is available in 4 different levels OdB 10dB 20dB 30dB 16 20 Digital Coaxial Output Jack AES 3id format 17 Ventilation Fan Ensure system s stable performance under long hour operation 21 Network Interface Connector Network socket for system monitoring program 22 DC 12V Input Jack To connect to 12V DC from the AC DC adapter Please note that the polarity of the central pin in the socket is positive 23 Safety Tab Secures external DC power supply cable to cabinet to avoid accidental loss of Power Fig 5 24 AC Power Socket The input socket for AC power ranging from 100VAC 240VAC 3 Audio Output Connection 25 Rear Antenna A Input Connector The A antenna can be installed directly to this antenna connector which also provides power to an optional antenna booster a Balanced Output Switch 4 levels of output sensitivity are available OdB 10dB 20dB 30dB Select the proper output sensitivity to work with your mixers or amplifiers OdB is the highest output level If distortion is experienced adjust the level counterclockwise to a lower rating until the desired output is attained 26 Rack Mount Bracket To install the receiver into a standard EIA 19 inch rack case 4 5
