DESCRIPTION

The EUWA packaged air-cooled water chillers are available in 4

standard sizes with nominal cooling capacities ranging from 30.7 to

65.2 kW.

Figure 1 shows the main components of the unit:

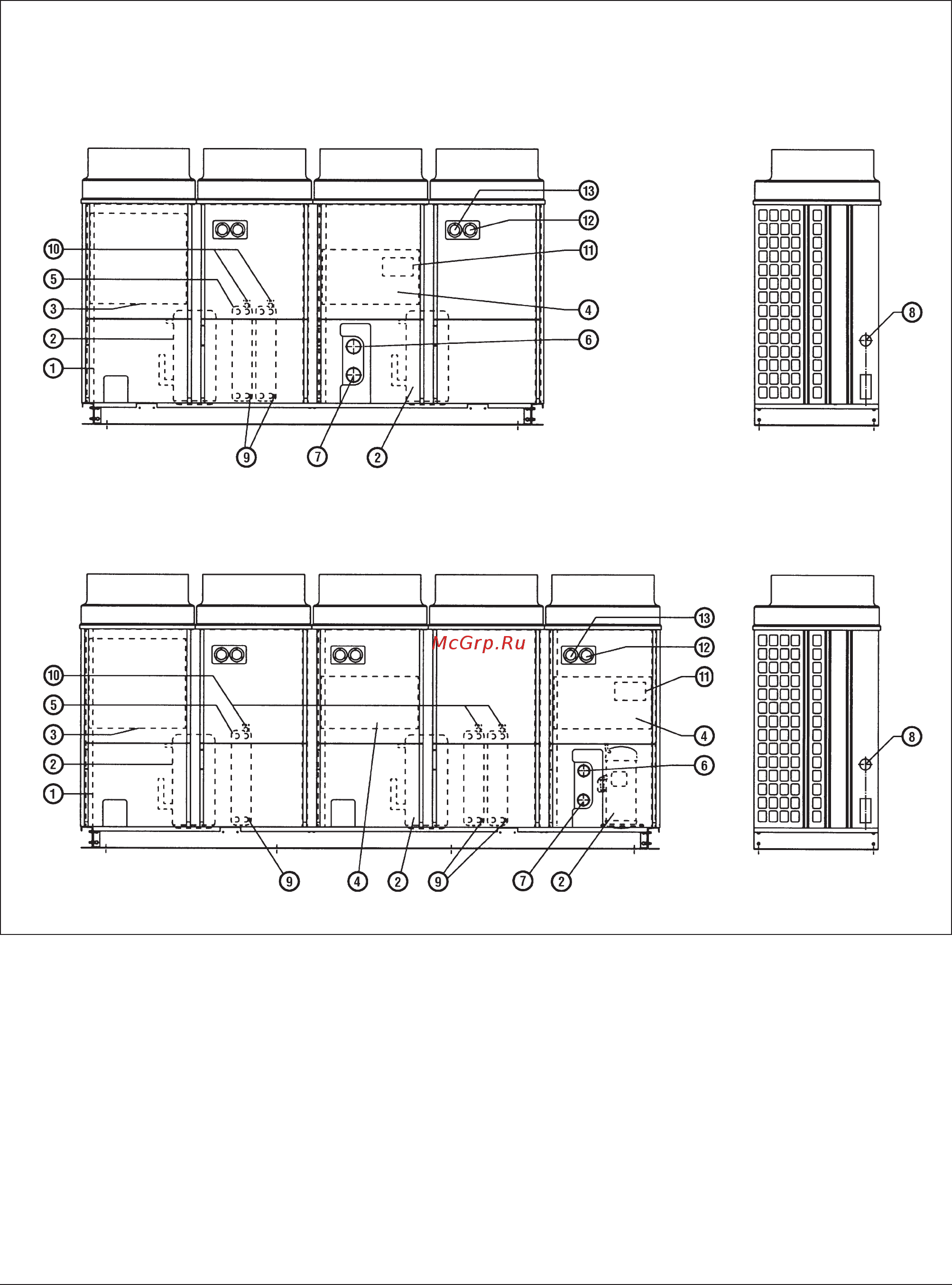

Figure 1 – Main components

1. Air heat exchangers

2. Compressors

3. Main switch box

4. Sub switch box

5. Water heat exchangers

6. Water intlet connection

7. Water outlet connection

8. Power supply intake

9. Drain

10. Air purge

11. Digital controller

12. Low pressure gauge (suction pressure) (optional)

13. High pressure gauge (discharge pressure) (optional)

EUWA20
