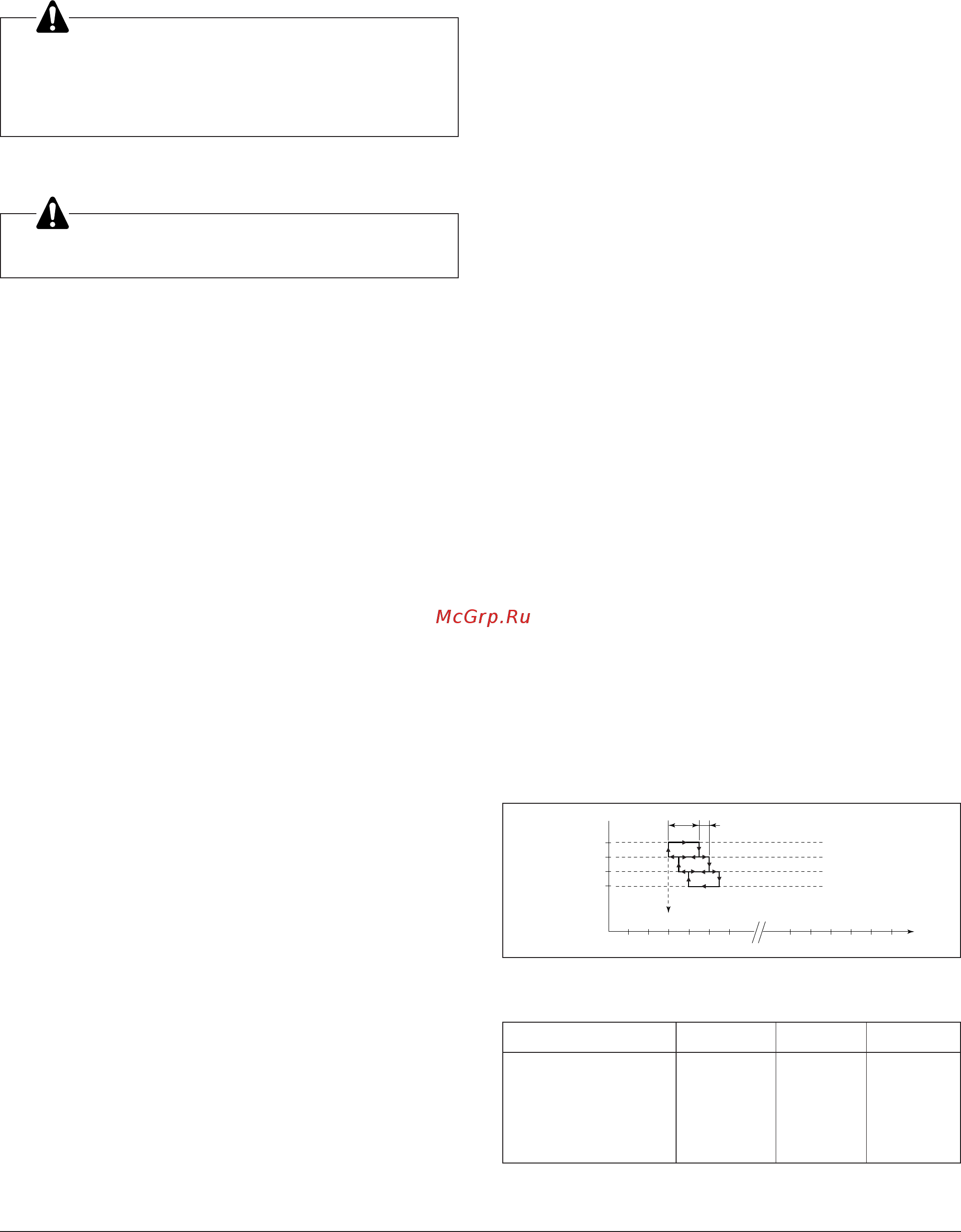

16
ANNEX I
Thermostat parameters
The figure below shows the thermostat parameters.
The default value and the upper and lower limits of the thermostat
parameters, are listed in the table below.
Default value Lower limit Upper limit
Steplength - a 1.5K 0.4K 2.0K
Step difference - b 0.5K 0.2K 0.8K
Load-up time 180 sec 15 sec 300 sec
Load-down time 20 sec 15 sec 300 sec
Cooling setpoint - c 12°C7.0°C (*) 25.0°C
(*) For glycol units, the lower limit of the cooling temperature setpoint can be adapted in
the factory to 5°C, 3°C, -2°C, -7°C.
10°C
c
ab
15°C 25°C 30°C
Step 0
Step 1
Step 2
Step 3
MAINTENANCE
In order to ensure optimal availability of the unit, a number of checks
and inspections on the unit and the field wiring have to be carried
out at regular intervals.
If the unit is used for air conditioning application, the described
checks should be executed at least once a year. In case the unit is
used for other applications, the checks should be executed every 4
months.
Before carrying out any maintenance or repair activity,
always switch off the circuit breaker on the supply panel,
remove the fuses or open the protection devices of the unit.
Do never clean the unit with water under pressure.
Maintenance activities
The wiring and power supply must be checked by a
licensed electrician.
1. Air heat exchanger
Remove dust and any other contaminant from the coil fins using
a brush and a blower. Blow from the inside of the unit. Take
care not to bend or damage the fins.
2. Field wiring and power supply
■ Check the power supply voltage on the local supply panel.
The voltage should correspond to the voltage marked on the
identification label of the unit.
■ Check the connections and make sure they are properly
fixed.
■ Check the proper operation of the circuit breaker and the
earth leak detector provided on the local supply panel.
3. Internal wiring of the unit
Visually check the switch boxes on loose connections
(terminals and components). Make sure that the electrical
components are not damaged or loose.
4. Earth connection
Make sure that the earth wires are still connected properly and
that the earth terminals are tightened.
5. Refrigerant circuit
■ Check for leaks inside the unit. In case a leak is detected,
call your local Daikin dealer.
■ Check the working pressure of the unit. Refer to paragraph
"Switching the unit on" (2).
6. Compressor
■ Check on oil leaks. If there is an oil leak, call your local
Daikin dealer.
■ Check for abnormal noises and vibrations. If the compressor
is damaged, call your local Daikin dealer.
7. Fan motor
■ Clean the cooling ribs of the motor.
■ Check on abnormal noises. If the fan or motor are damaged,
call your local Daikin dealer.
8. Water supply
■ Check if the water connection is still well fixed.
■ Check the water quality (refer to the installation manual of
the unit for specifications of the water quality).
Disposal requirements
Dismantling of the unit, treatment of the refrigerant, oil and eventual
other parts, should be done in accordance with the relevant local
and national regulations.
