3
S
*
HP
EUWA15-20
M
*
C
p >
R7T
t >
R4T
t <
R5T
t <
EUWA25-30
R7T
t >
R4T
t <
R5T
t <
R6T
t <
S
*
LP
p <
Function of the main components

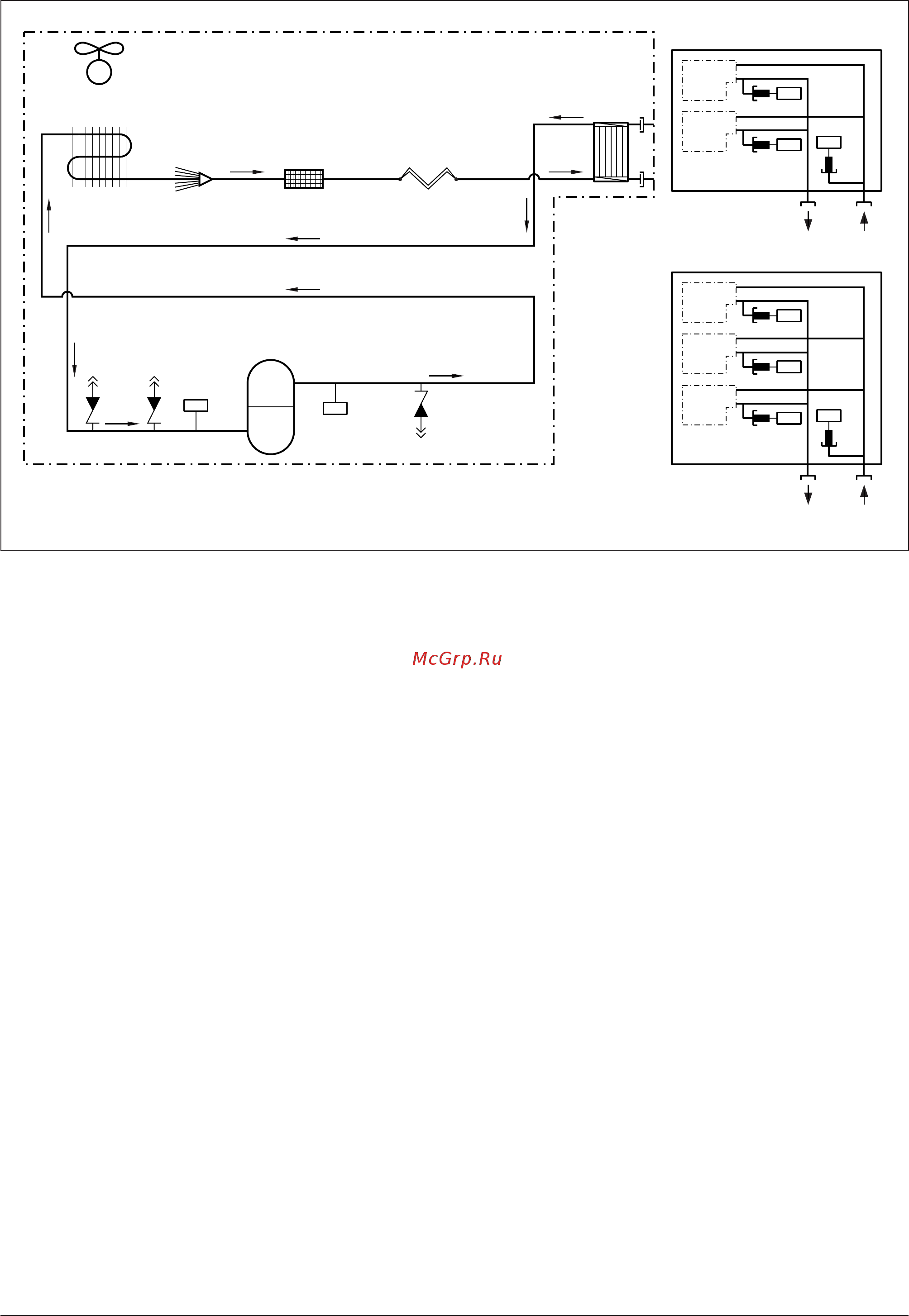

Figure 2 – Functional diagram
As the refrigerant circulates through the unit, changes in its state or
condition occur. These changes are caused by the following main
components:
– Compressor
The compressor (M*C) acts as a pump and circulates the
refrigerant in the refrigeration circuit. It compresses the
refrigerant vapour coming from the evaporator at the pressure
at which it can easily be liquefied in the condenser.
– Condenser
The function of the condenser is to change the state of the
refrigerant from gaseous to liquid. The heat gained by the gas
in the evaporator is discharged through the condenser to the
ambient air, and the vapour condenses to liquid.
–Filter
The filter installed behind the condenser removes small
particles from the refrigerant to prevent blockage of the tubes.
– Capillary tube
The liquid refrigerant coming from the condenser enters the
evaporator via a capillary tube. The capillary tube brings the
liquid refrigerant to a pressure at which it can easily be
evaporated in the evaporator.
– Evaporator
The main function of the evaporator is to take heat from the
water that flows through it. This is done by turning the liquid
refrigerant, coming from the condenser, into gaseous
refrigerant.
Condenser
Distributor
Compressor
High
pressure switch
Water
outlet
Water
inlet
Water
outlet
– Water in/outlet connection
The water inlet and outlet connection allow an easy connection
of the unit to the water circuit of the air handling unit or industrial
equipment.
Safety devices
The unit is equipped with three kinds of safety device:
1.
General safety devices
: shut down all circuits and stop the
whole unit.
2.
Circuit safety devices
: shut down the circuit they protect, while
the other circuits remain activated.
3.
Part safety devices
: shut down the part they protect.
– Overcurrent relay (circuit safety device)
The overcurrent relays (K*S) are located in the switch boxes of
the unit and protect the compressor motors in case of overload,
phase failure or too low voltage. The relays are factory-set and
may not be adjusted. When activated, they must be reset
manually, followed by a reset of the controller.
– High-pressure switch (circuit safety device)
The high-pressure switches (S*HP) are installed on the
discharge pipes of the unit and measure the condenser
pressure (pressure at the outlet of the compressor). When the
pressure is too high, the pressure switches are activated. The
circuit stops.
Filter Capillary tube
Evaporator
Low
pressure switch
Water
inlet
