English
97
X299 Taichi CLX

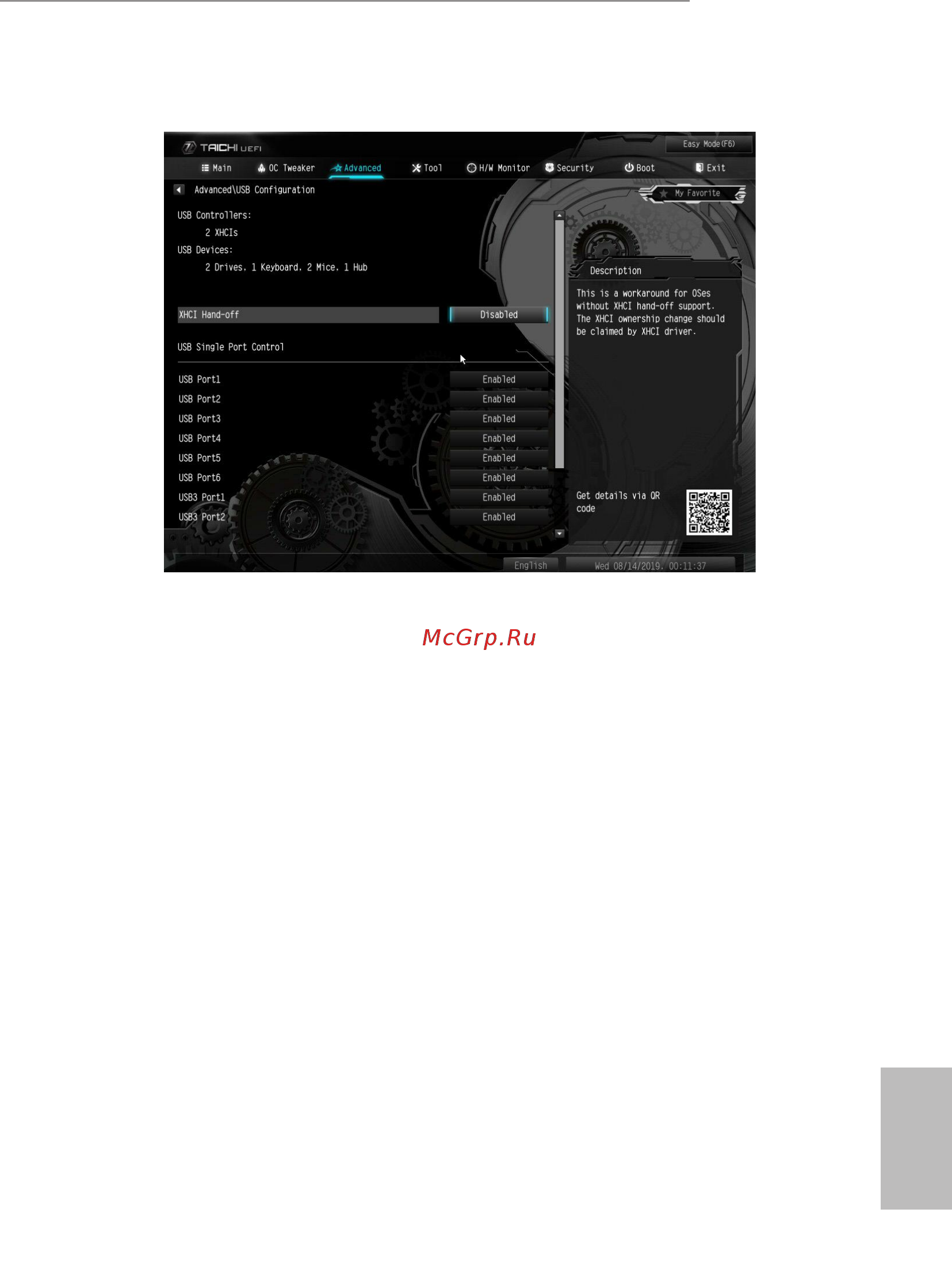

4.6.7 USB Conguration
XHCI Hand-o
is is a workaround for OSes without XHCI hand-o support. e XHCI
ownership change should be claimed by XHCI driver.
