English
86

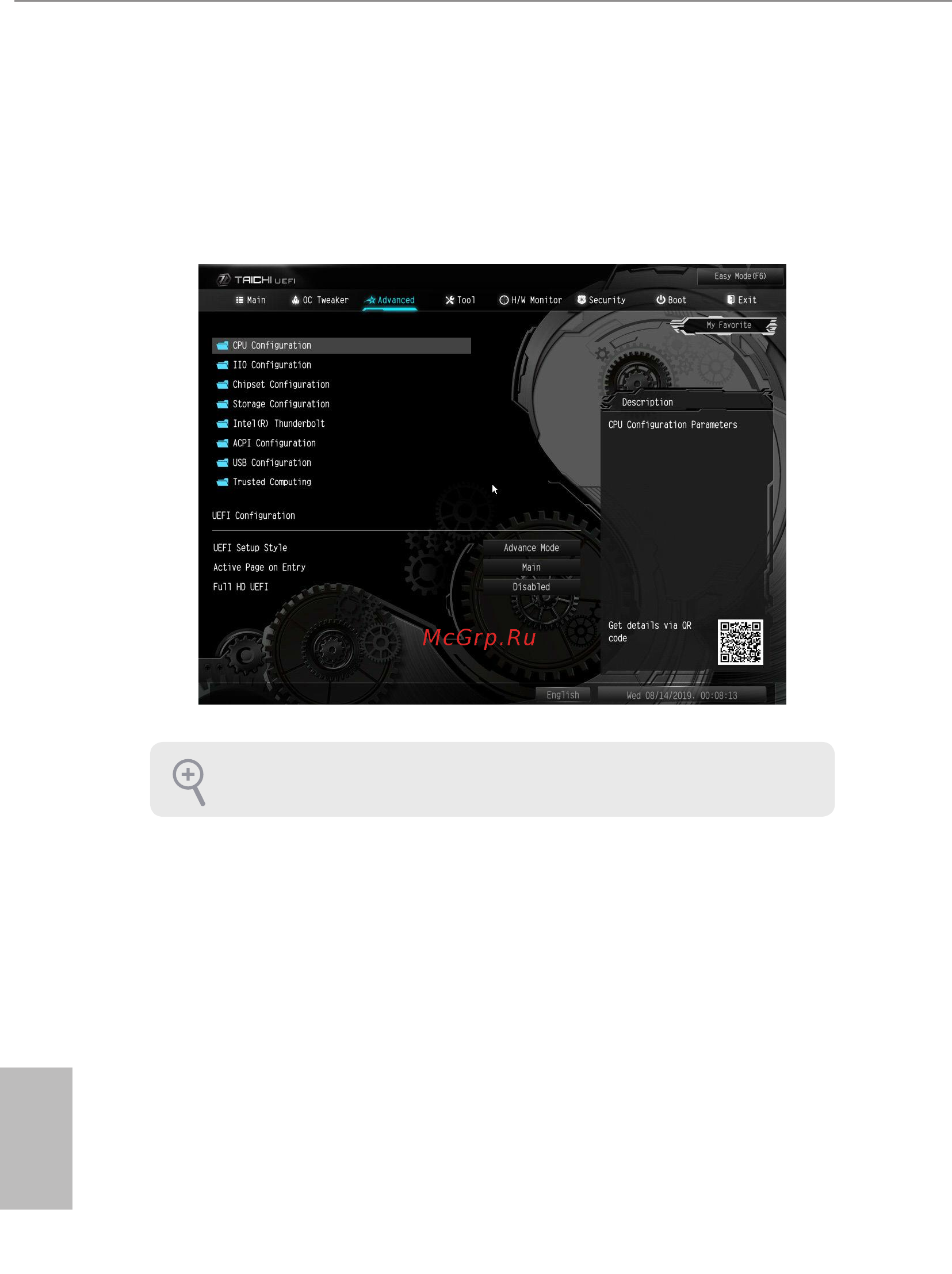

4.6 Advanced Screen
In this section, you may set the congurations for the following items: CPU
Conguration, IIO Conguration, Chipset Conguration, Storage Conguration,
Intel® underbolt, ACPI Conguration, USB Conguration and Trusted
Computing.
UEFI Conguration
UEFI Setup Style
Select the default mode when entering the UEFI setup utility.
Active Page on Entry
Select the default page when entering the UEFI setup utility.
Full HD UEFI
When [Auto] is selected, the resolution will be set to 1920 x 1080 if the monitor
supports Full HD resolution. If the monitor does not support Full HD resolution,
then the resolution will be set to 1024 x 768. When [Disable] is selected, the
resolution will be set to 1024 x 768 directly.
Setting wrong values in this section may cause the system to malfunction.
