English
11
X299 Taichi CLX

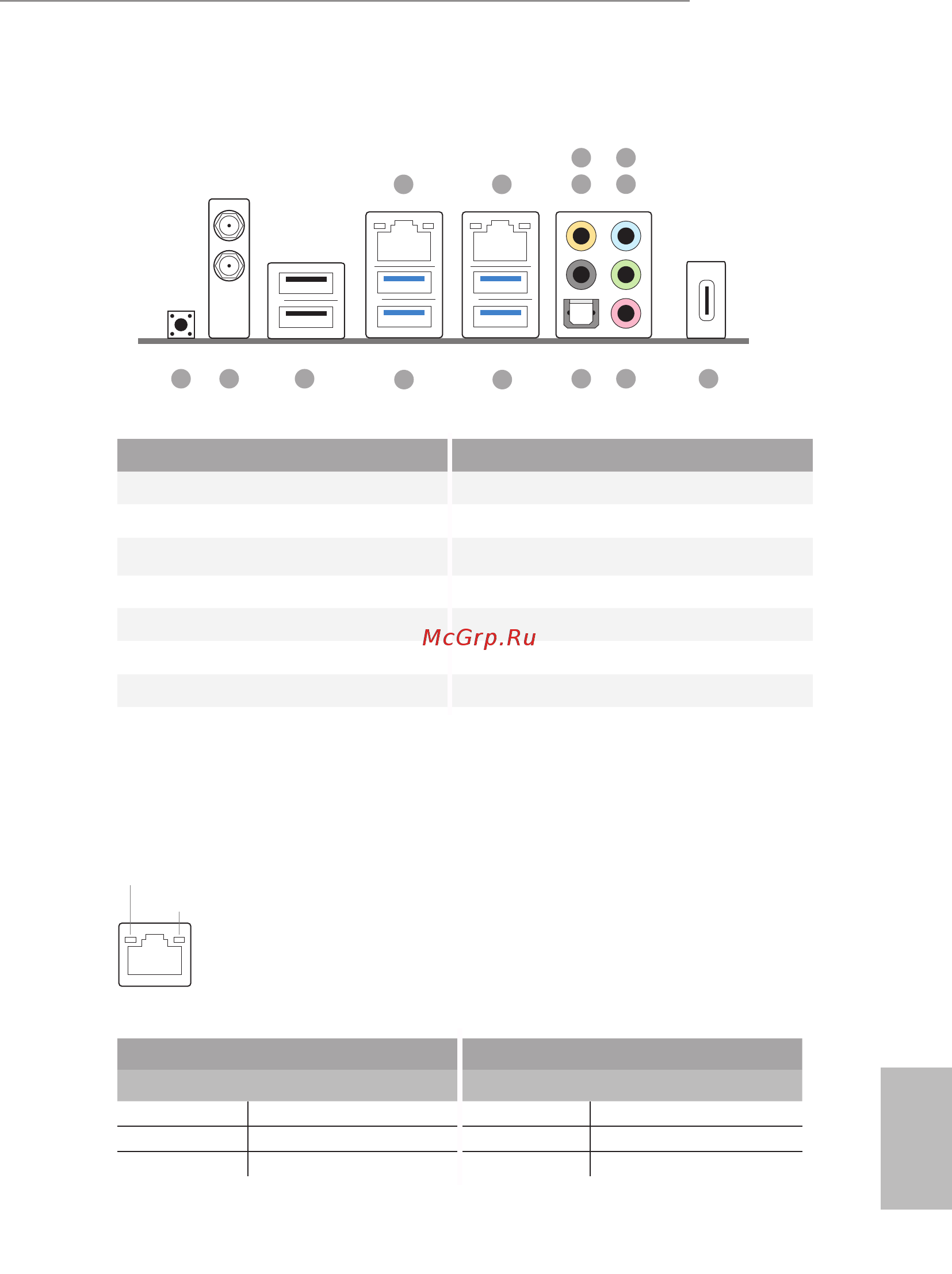

1.4 I/O Panel
No. Description No. Description
1 LAN RJ-45 Port (Intel® I219V)* 8 Microphone (Pink)
2 2.5G LAN RJ-45 Port 9 Optical SPDIF Out Port
(Dragon RTL8125AG)** 10 USB 3.2 Gen1 Port (USB3_3_4)****
3 Central / Bass (Orange) 11 USB 3.2 Gen1 Port (USB3_1_2)
4 Rear Speaker (Black) 12 USB 2.0 Port (USB2_1_2)
5 Line In (Light Blue) 13 Antenna Ports
6 Front Speaker (Lime)*** 14 Clear CMOS Button
7 USB 3.2 Gen2x2 Type-C Port (ASMedia ASM3242)
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link Orange 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
8 7914
6
5
4
3
1213
10
2
11
1
