2.6 M.2_SSD (NGFF) Module Installation Guide
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket
supports type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module.
Installing the M.2_SSD (NGFF) Module

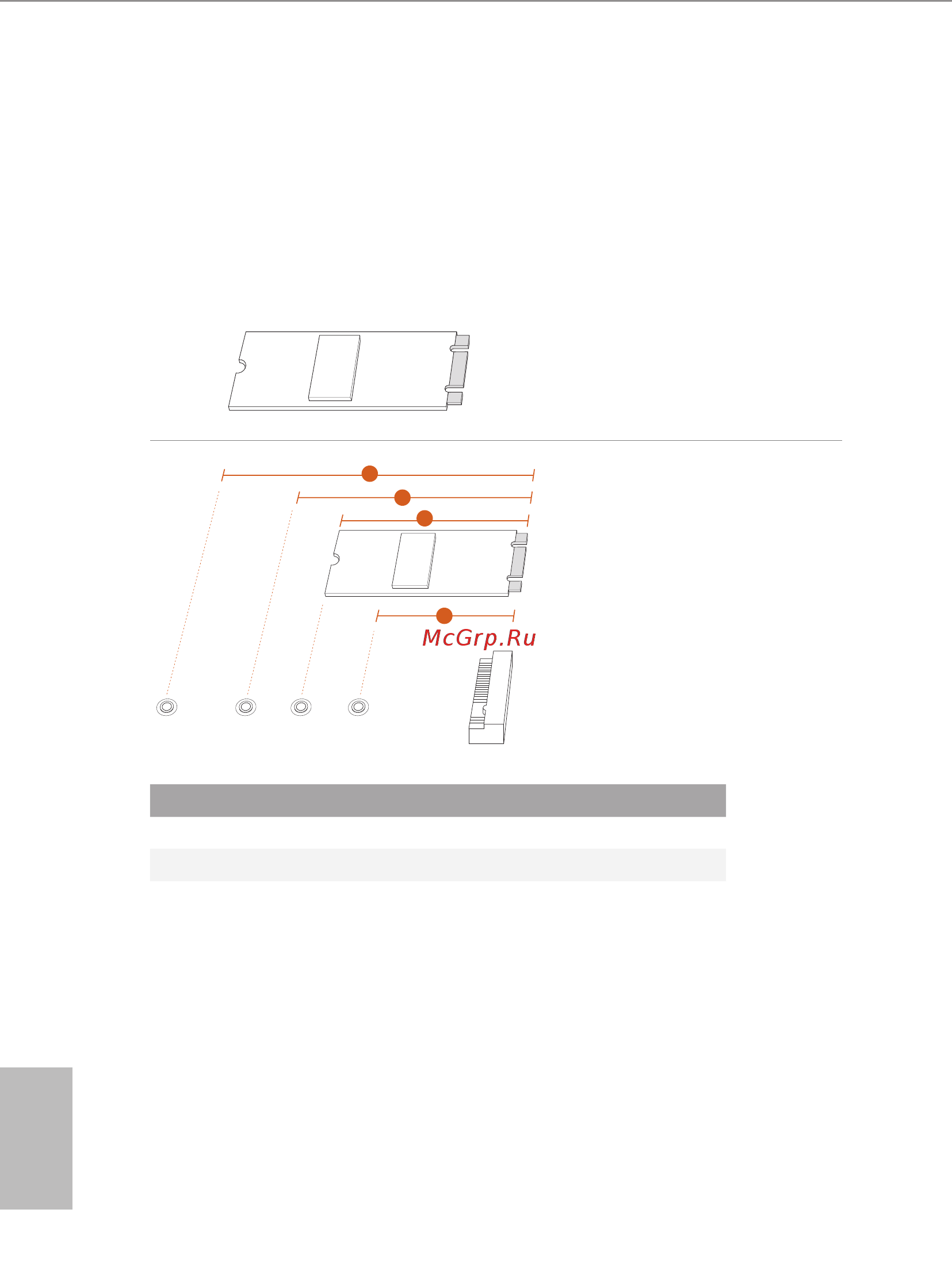

Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
2
1
3
4
ABCD
Step 2
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.
No. 1 2 3 4
Nut Location A B C D
PCB Length 4.2cm 6cm 8cm 11cm
Module Type Type 2242 Type2260 Type 2280 Type 22110
