ASRock J3455 Pro BTC+ [42/52] English
![ASRock J3455 Pro BTC+ [42/52] English](/views2/1688617/page42/bg2a.png)
37
English
J3455 Pro BTC+

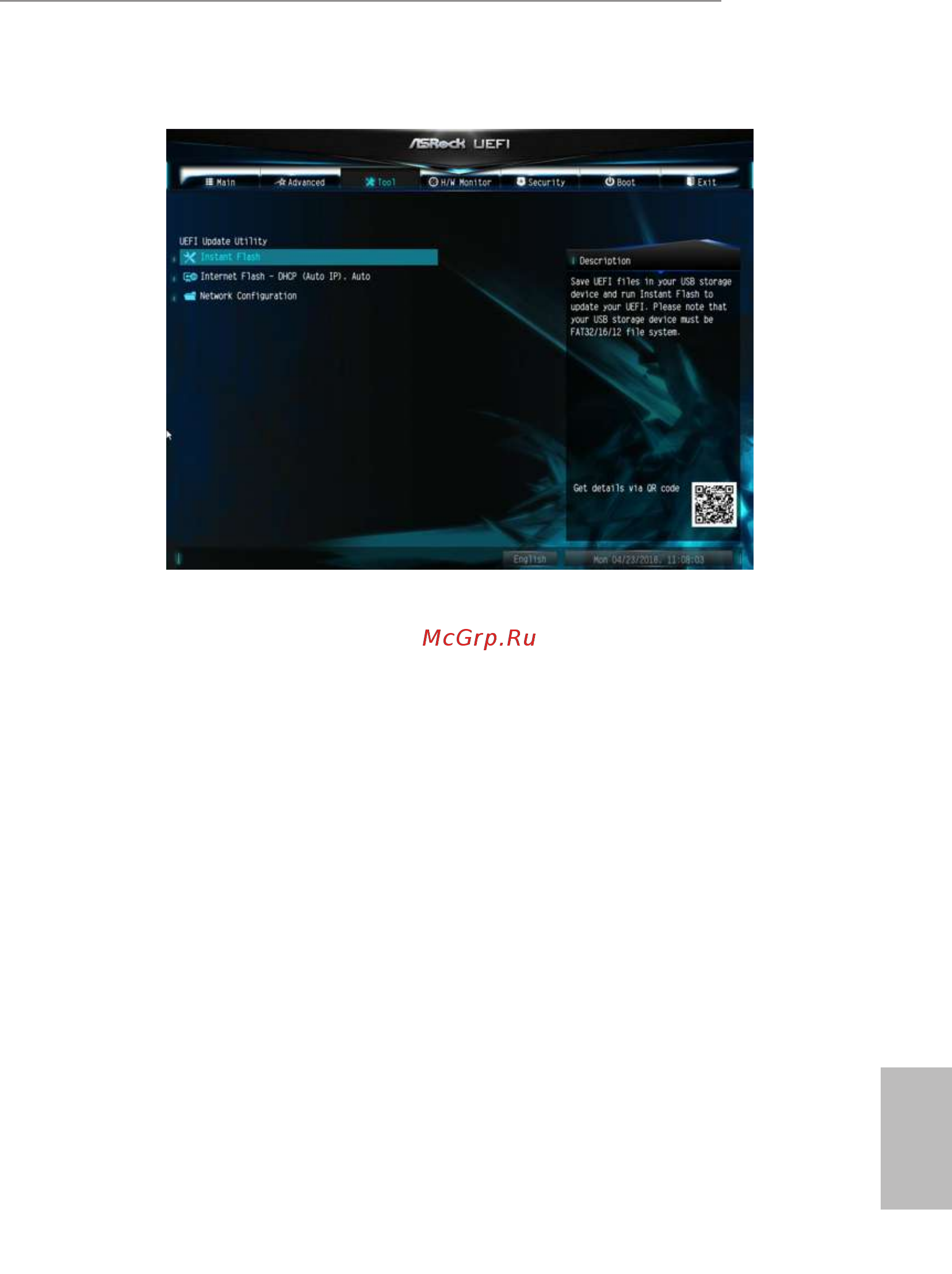

4.4 Tools
Instant Flash
Save UEFI les in your USB storage device and run Instant Flash to update your
UEFI.
Internet Flash - DHCP (Auto IP), Auto
ASRock Internet Flash downloads and updates the latest UEFI rmware version
from our servers for you. Please setup network conguration before using Internet
Flash.
*For BIOS backup and recovery purpose, it is recommended to plug in your USB
pen drive before using this function.
