ASRock J3455 Pro BTC+ [38/52] Super io configuration
![ASRock J3455 Pro BTC+ [38/52] Super io configuration](/views2/1688617/page38/bg26.png)
33
English
J3455 Pro BTC+

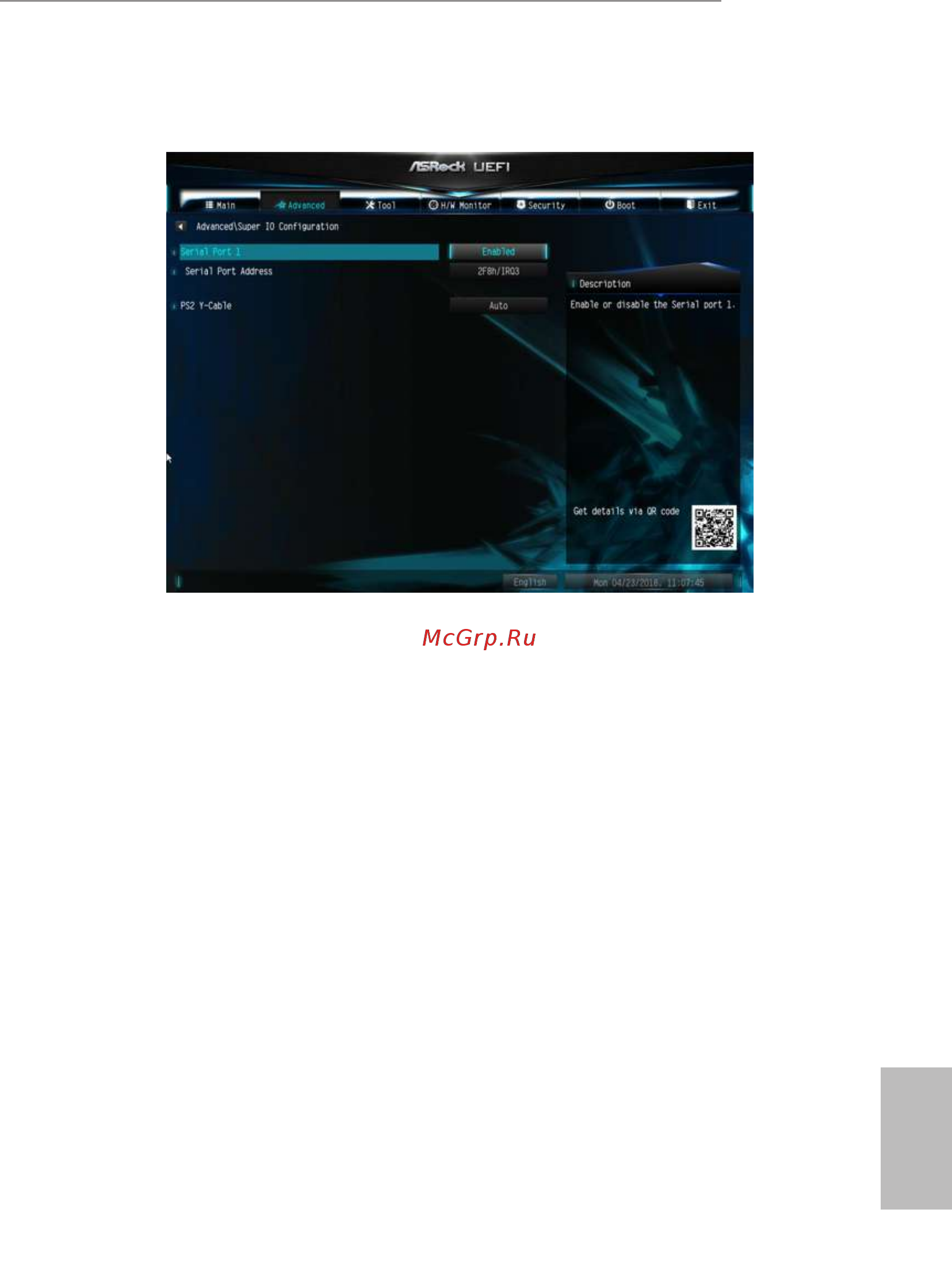

4.3.4 Super IO Conguration
Serial Port 1
Enable or disable the Serial port 1.
Serial Port Address
Select the address of the Serial port.
PS2 Y-Cable
Enable the PS2 Y-Cable or set this option to Auto.
